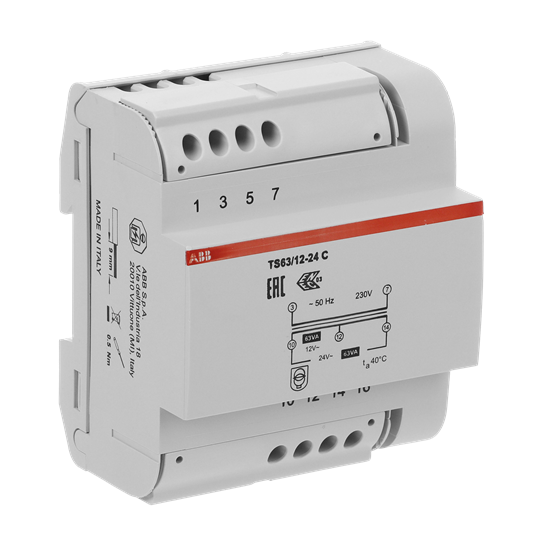

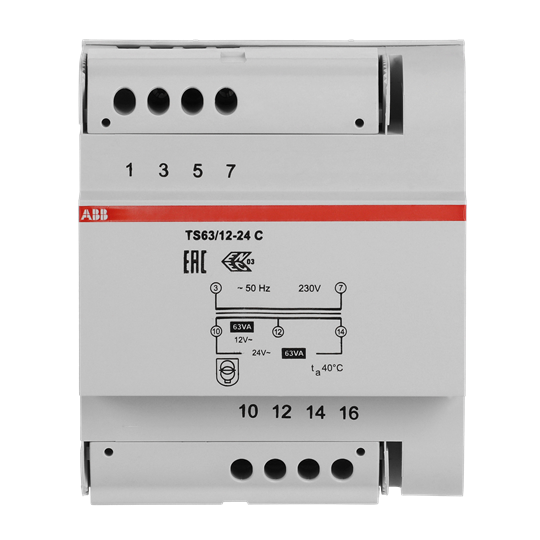

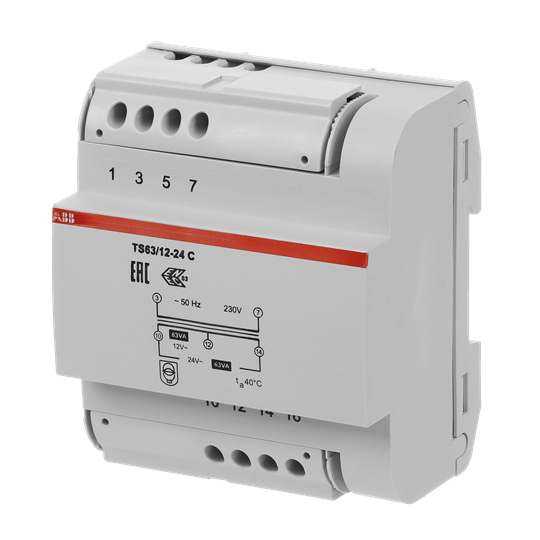

TS 63/12-24 C Safety isolating transformer

Link copied
SKU
EAN
GTIN
MPN

TS 63/12-24 C Safety isolating transformer by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell, and currently in stock. Trade price £124.96 excl. VAT. Voltimum+ members earn 69 points per unit.

TS-C are ideal for supplying permanent power to meters, auxiliary electronic devices and circuits with very low safety voltage (SELV) for bathrooms and showers, lighting, fountains, electro-medical devices and suchlike.

Voltimum+ Loyalty Programme Loyalty points: 69

Price: £ 124.96 Excl. VAT

Specifications

Width 87.5
Height 85
Length 120
Max. power loss -
Modular version yes
Primary voltage 230
Surface mounting no
Max. output power 63
Max. output current 2.63
Secondary voltage 2 -
Type of transformer -
Secondary amperage 2 -
Temperature protection yes
Flush-mounted installation no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_G_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK106713A5646_deenfrit_A_EU Declaration of Conformity_TS-C.pdf

Open
