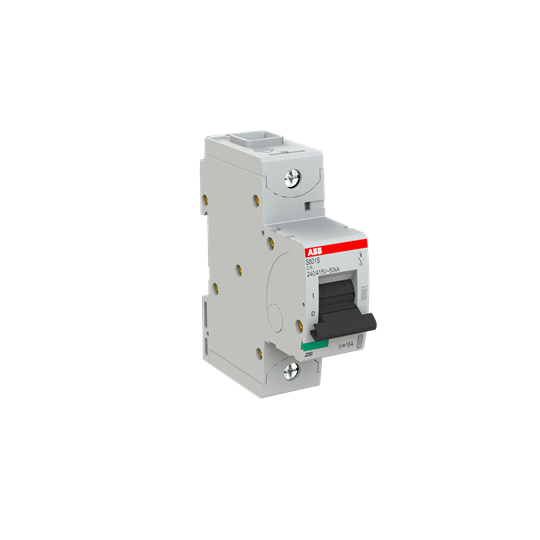

S801S-C16 High Performance MCB – Image 2 of 3

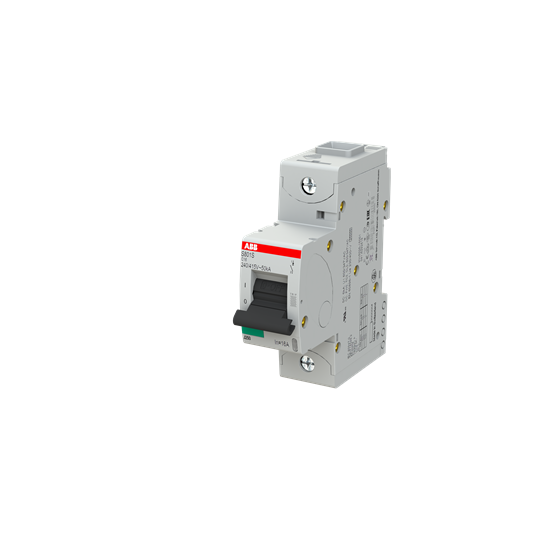

S801S-C16 High Performance MCB – Image 3 of 3

1 / 3

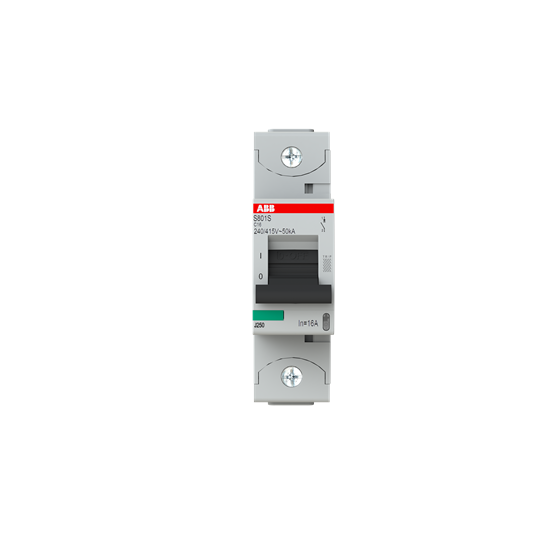

S801S-C16 High Performance MCB

Name: S801S-C16 High Performance MCB
Brand: ABB
SKU: 2CCS861001R0164
Availability: InStock

S801S-C16 High Performance MCB by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £60.48 to £83.75 excl. VAT. Voltimum+ members earn 37 points per unit.

The S801S-C16 is a 1-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801S-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801S-C16 more comfortable. Due to the fast arc extinction of S801S-C16 your application will be secured.

Product identifiers

SKU: 2CCS861001R0164

EAN: 7612271200503

GTIN: 7612271200503

MPN: S801S-C16

Loyalty points: 37

Price range: £ 60.48 - £ 83.75 Excl. VAT

Specifications

Frequency
Power loss	3.1
Voltage type	AC/DC
Rated current	16
Rated voltage	230
Built-in depth	82.5
Explosion-proof	no
Pollution degree	3
Over voltage category	4
Current limiting class	3
Release characteristic	C
Number of poles (total)	1
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	no
Rated insulation voltage Ui	690
Additional equipment possible	yes
Width in number of modular spacings	1.5
Ambient temperature during operating
Rated impulse withstand voltage Uimp	8
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	25
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	25
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
