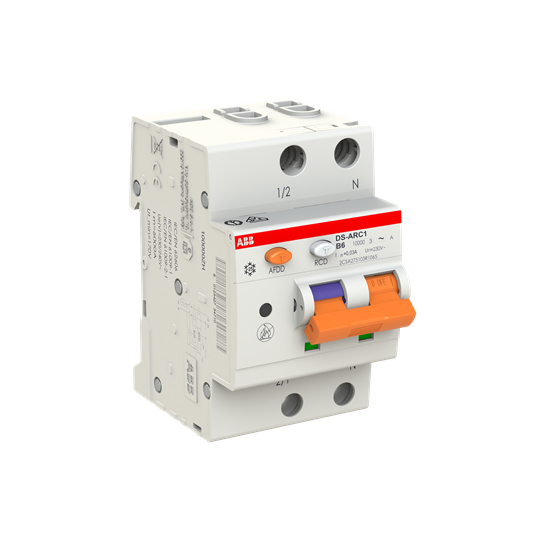

DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO

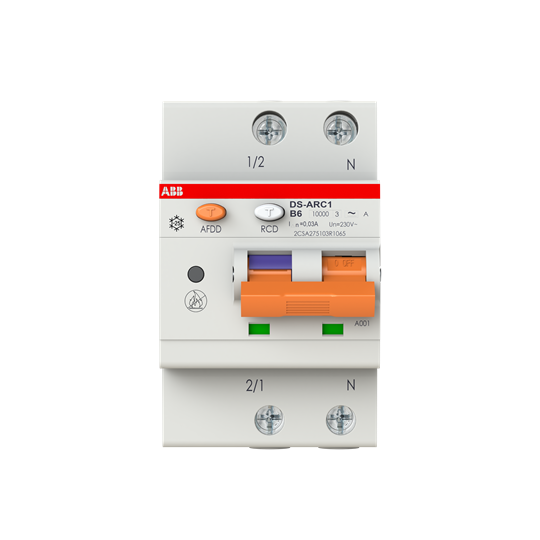

DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO – Image 2 of 3

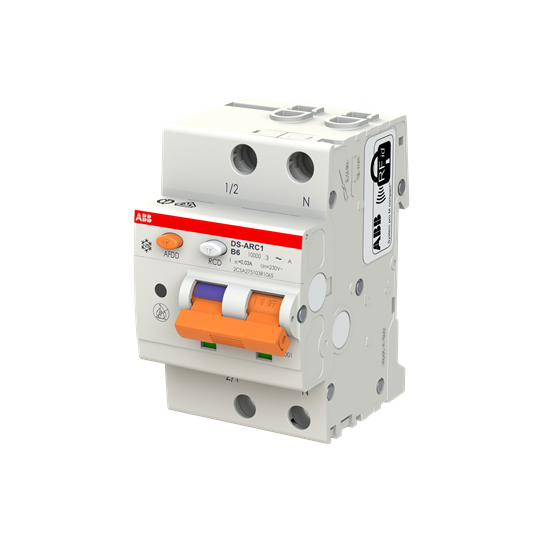

DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO – Image 3 of 3

1 / 3

DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO

Name: DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO
Brand: ABB
SKU: 2CSA275103R1065
Availability: InStock

DS-ARC1 M B6 A30 Arc fault detection device integrated with RCBO by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £279.95 excl. VAT. Voltimum+ members earn 154 points per unit.

DS-ARC1 M is a 1P+N arc fault detection device (AFDD) with an integrated RCBO in three modules, for the protection against earth arc faults, parallel arc faults, series arc faults, overvolatge, short-circuit currents, overload, earth fault currents

Product identifiers

SKU: 2CSA275103R1065

EAN: 8012542734710

GTIN: 8012542734710

MPN: DS-ARC1 M B6 A30

Loyalty points: 154

Price: £ 279.95 Excl. VAT

Specifications

Frequency	50
Rated current	6
Rated voltage	240
Built-in depth	69
Number of poles	2
Pollution degree	2
Rated fault current	0.03
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	B
Degree of protection (IP)	-
Rated voltage auxiliary device	-
Width in number of modular spacings	3
Rated switch current auxiliary device	-
Concurrently switching neutral conductor	yes
Control voltage type auxiliary equipment	-
Additional equipment attached at delivery	-
Rated short-circuit breaking capacity according to EN 61009	10
Rated short-circuit breaking capacity according to IEC 60947-2	10
