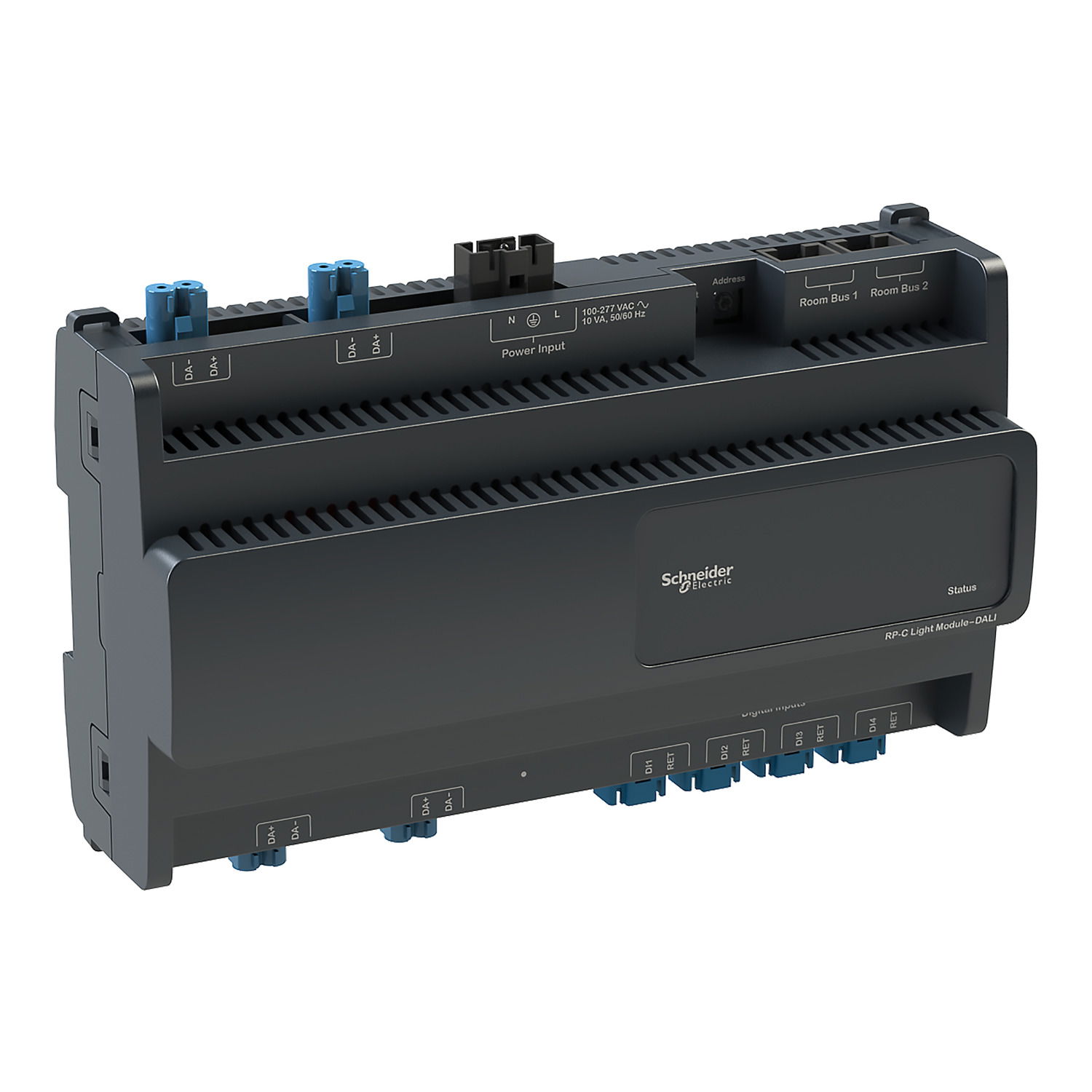

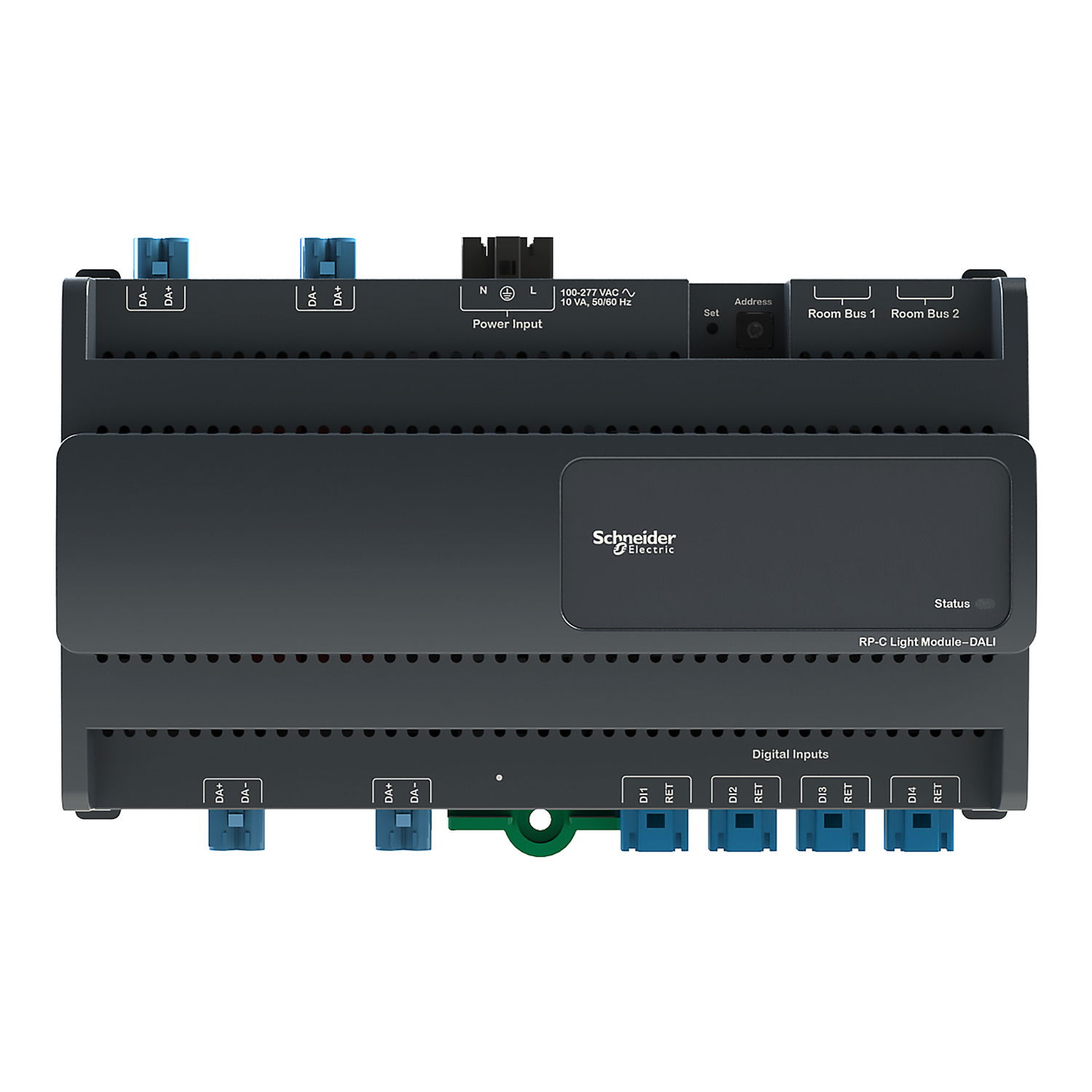

SmartX Room Controller Light Module, DALI

Link copied
SKU
EAN
GTIN
MPN
The SpaceLogic RP-C-EXT-DALI light module connects to the RP room controllers and provides I/O expansion for lighting control with DALI. The DALI light module enables control of lights equipped with DALI ballasts (DALI control gear). The DALI light module is a DALI-2 certified control device (application controller). Its dimensions are 110 mm (4.3 in.) in height, 198 mm (7.8 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP20. This module is part of the RP Series expansion modules for connected room solution and can be combined with other modules from this product range.

Voltimum+ Loyalty Programme Loyalty points: 62

Price: £ 371.00 Excl. VAT

Specifications

Depth 64 mm
Width 198 mm
Height 110 mm
Contact type -
Smart control yes
Output voltage 277 V
Supply voltage 277 V
Max. contact load -
Reception frequency -
Suitable for cooling no
Max. power per channel -
Number of channels/zone -
Connection for external antenna no
Networkable via radiografic (standard) no

Documents

Declaration of Conformity (Sustainability)

SXWREDALI110001 REACh Regulation

Open

Instruction sheet

SpaceLogic™ RP-C-EXT-DALI-M-PD and RP-C-EXT-DALI Installation Sheet

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SXWREDALI110001 EU RoHS Directive

Open

Declaration of conformity

CE-DOC-000077-01 SpaceLogic RP-C-EXT DALI Light No PD Declaration of conformity

Open

Environmental Disclosure

PEP SpaceLogic RP-C-EXT-DALI-M-PD module

Open

Circularity Profile

EoLI SpaceLogic RP-C-EXT-DALI-M-PD module

Open

CAD

SpaceLogic RP-C-EXT-DALI CAD file

Open
