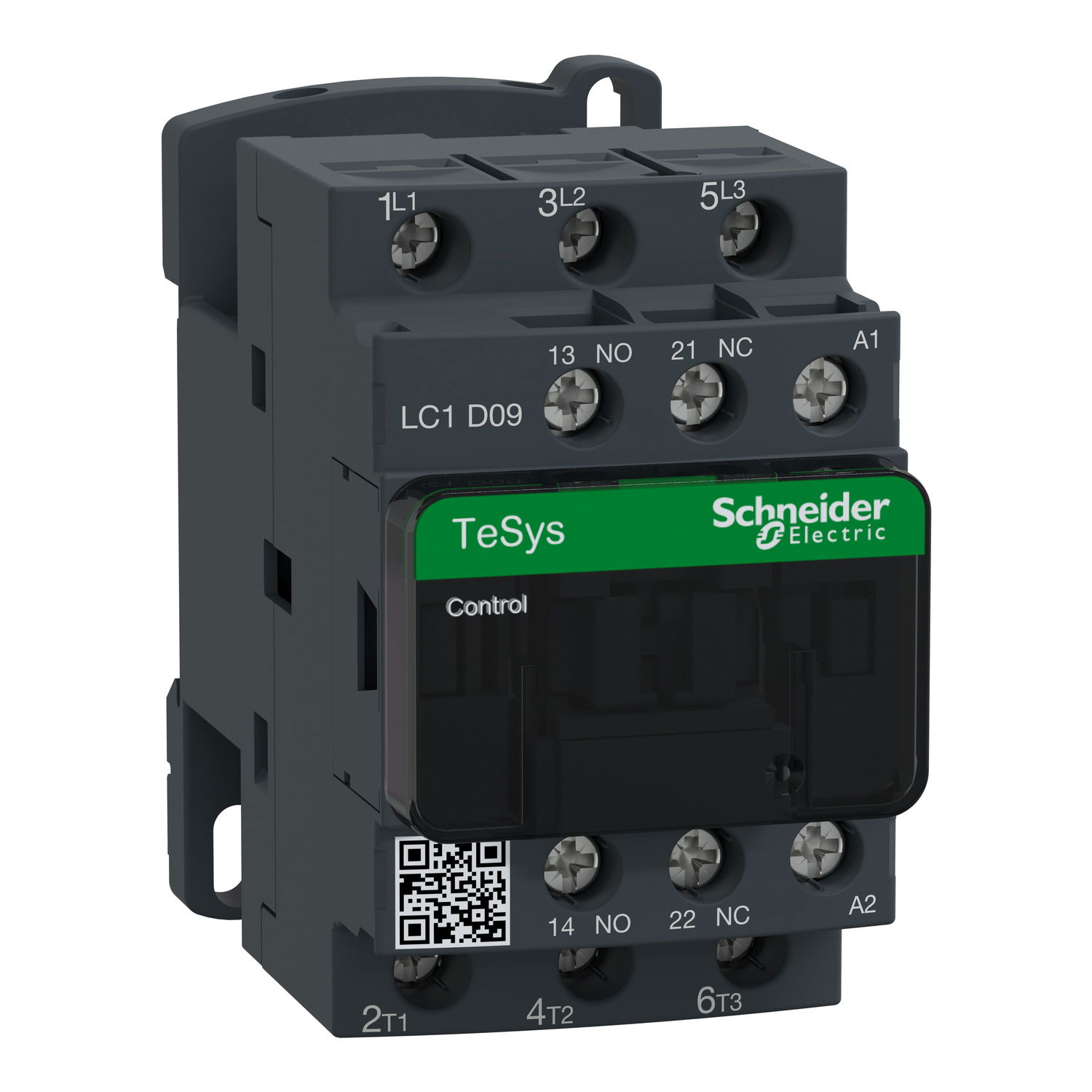

TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 400 V AC coil
1 / 6
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 400 V AC coil
TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 400 V AC coil by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £47.00 to £49.70 excl. VAT. Voltimum+ members earn 6 points per unit.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 400V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Product identifiers
SKU: LC1D09V7
EAN: 3389110349122
GTIN: 3389110349122
MPN: LC1D09V7
Loyalty points:
6
Price range: £ 47.00 - £ 49.70 Excl. VAT
ETIM group
Specifications
| Depth | 86 mm |
| Width | 45 mm |
| Height | 77 mm |
| Modular version | no |
| Operating voltage AC 50 Hz | |
| Operating voltage AC 60 Hz | |
| Rated operation power NEMA | - |
| Voltage type for actuating | AC |
