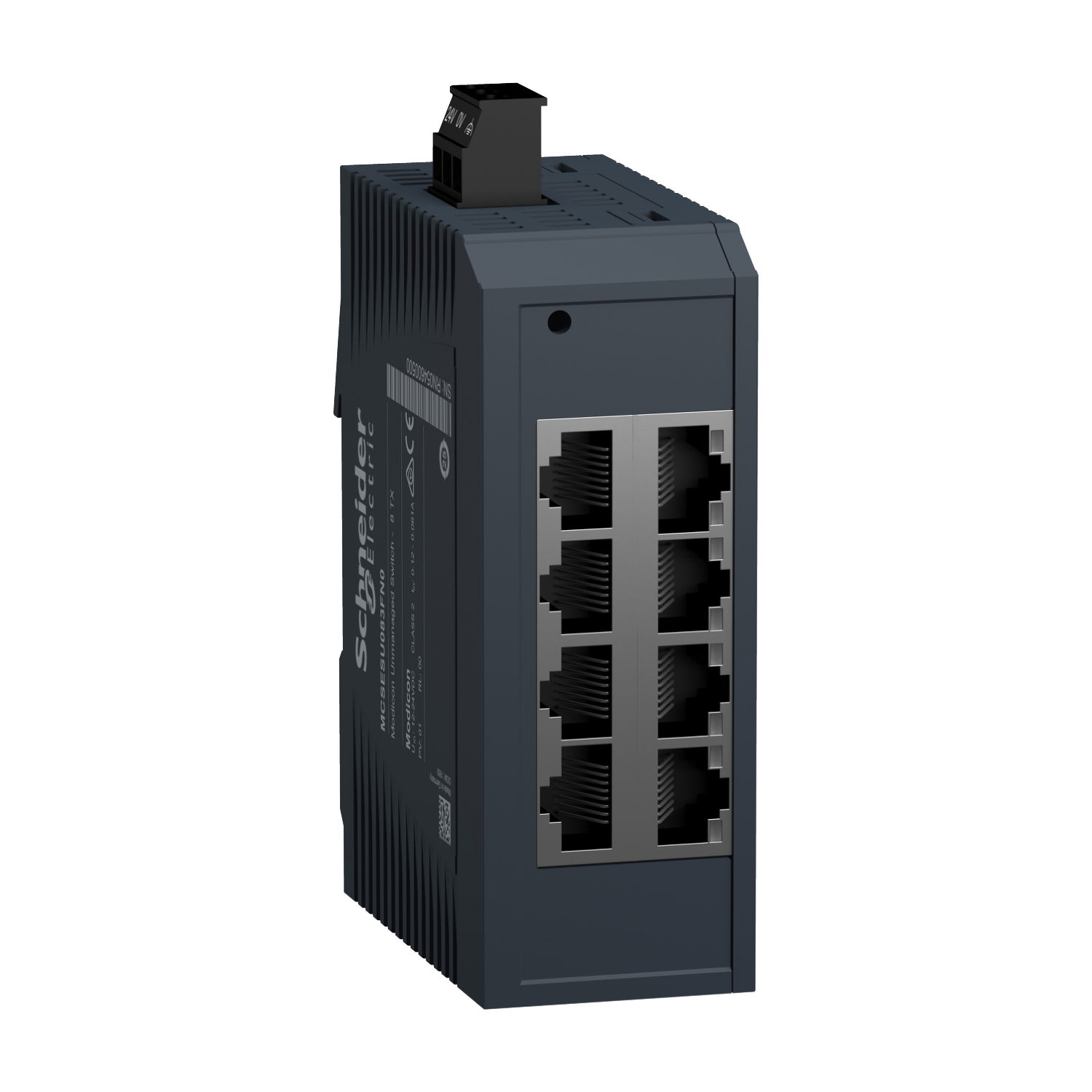

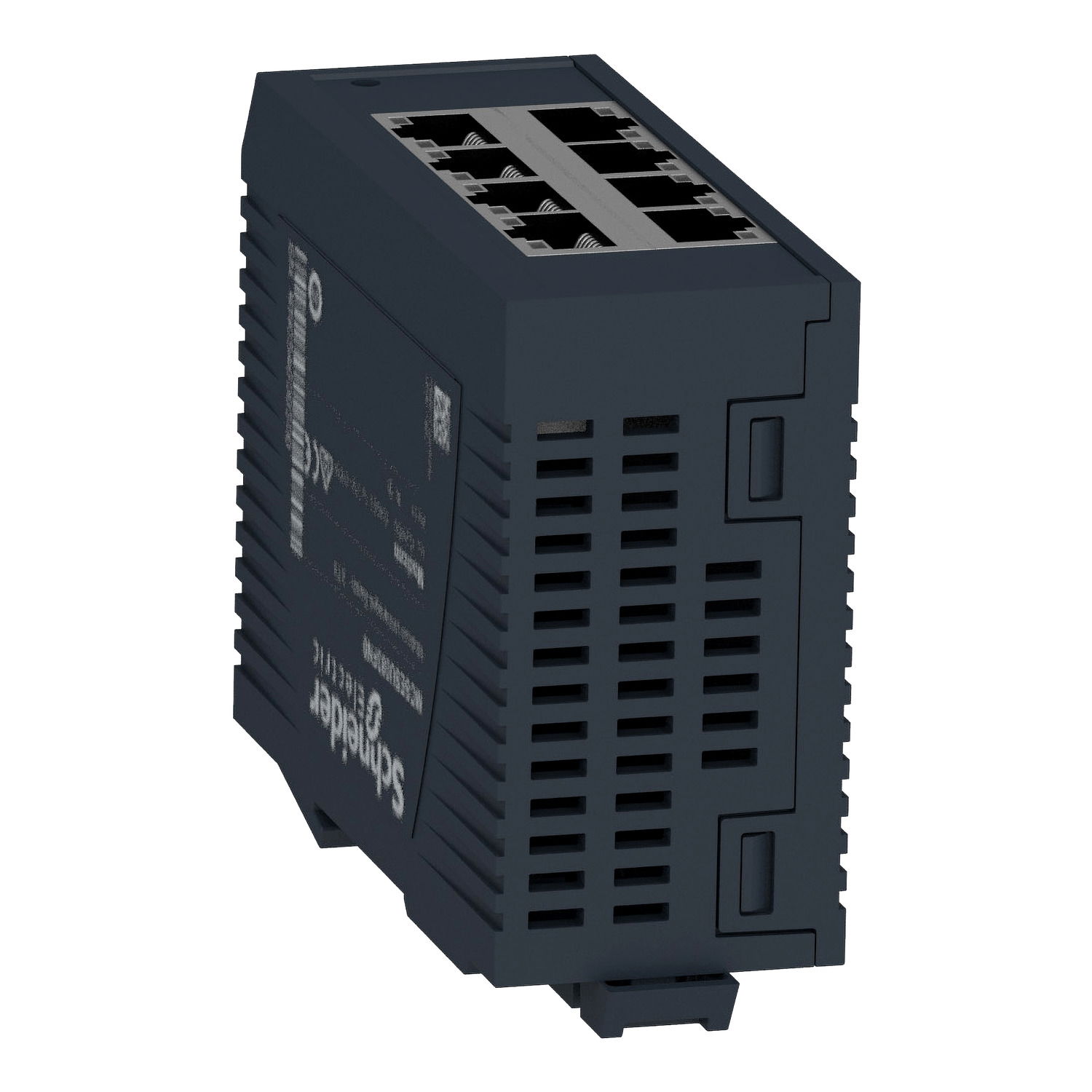

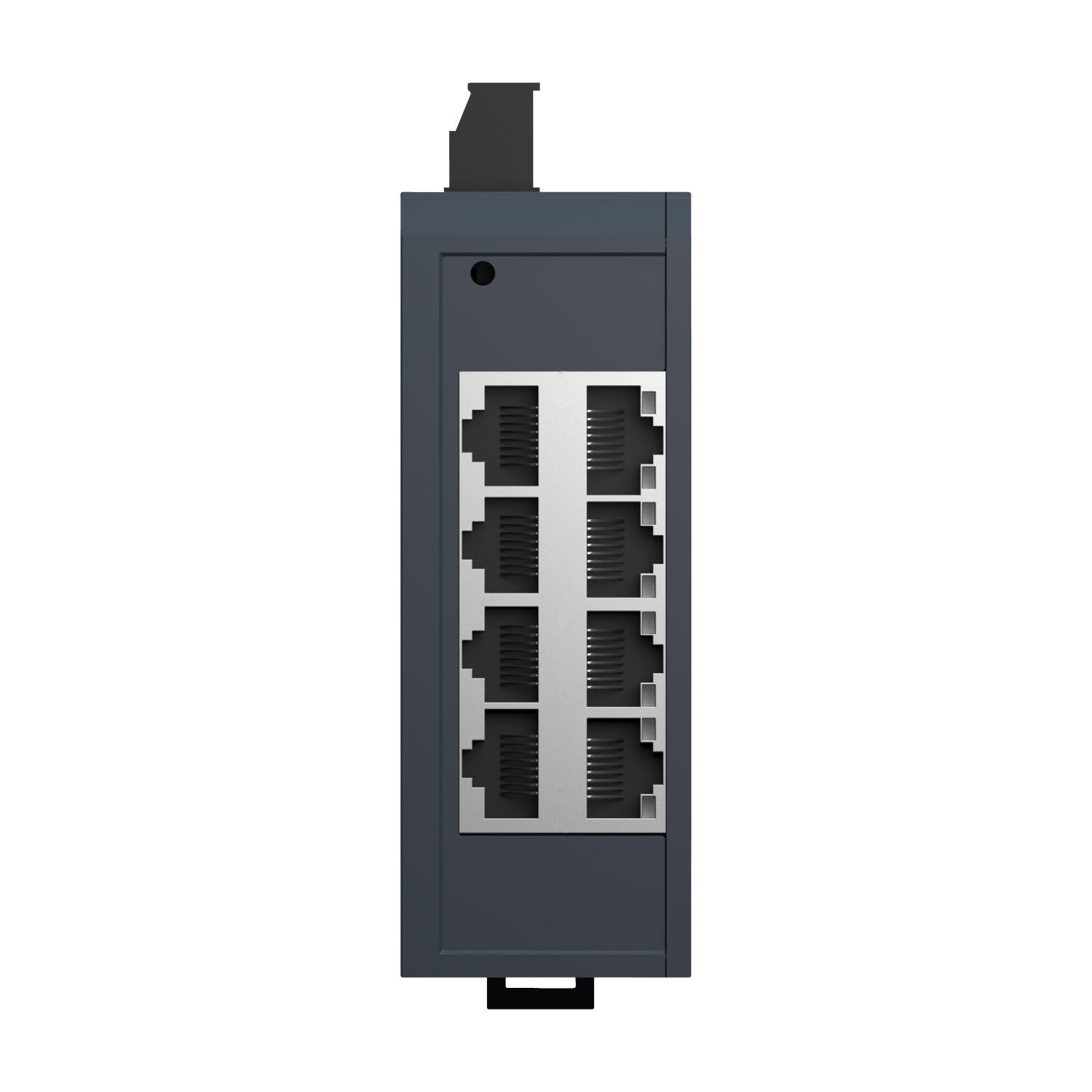

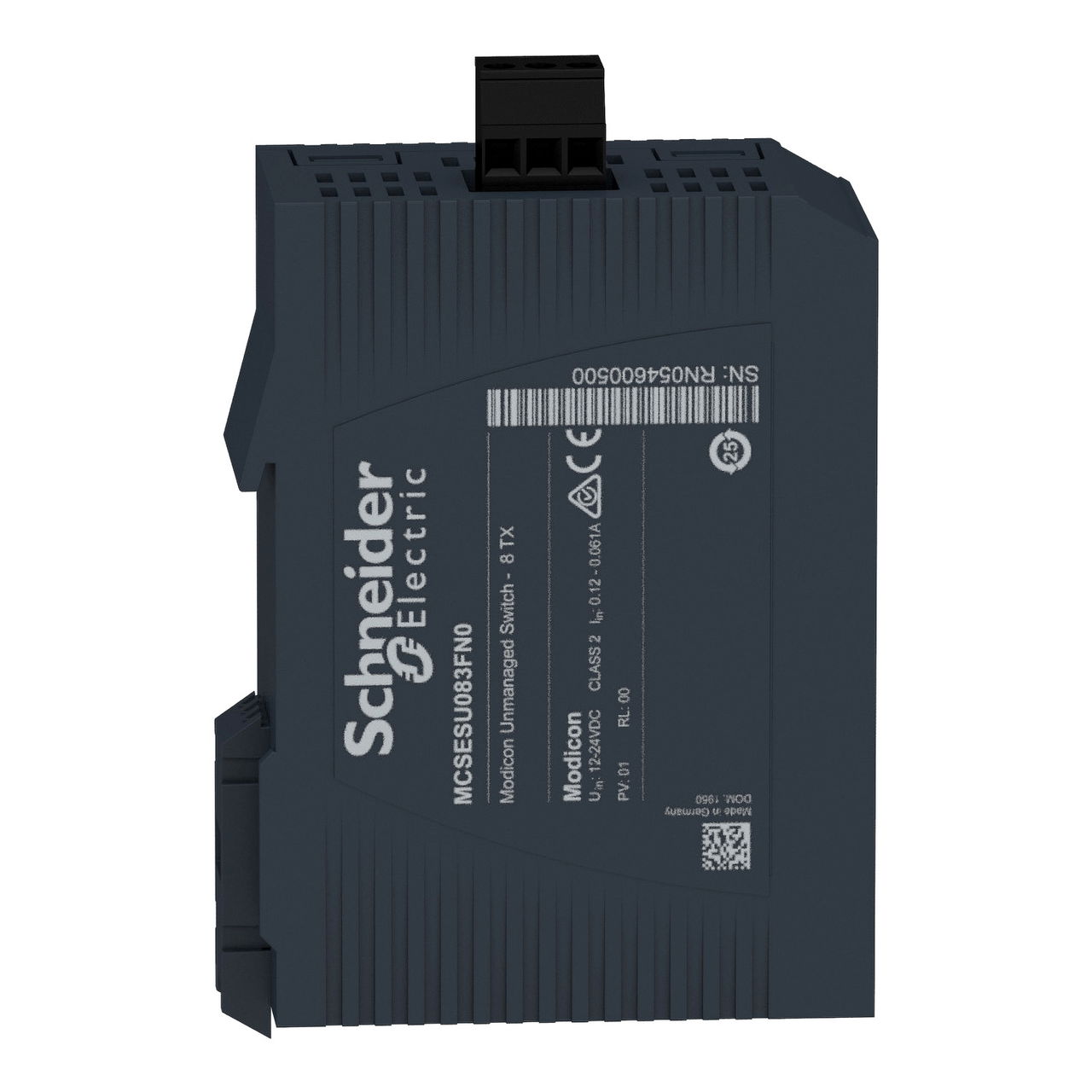

Modicon Standard Unmanaged Switch - 8 ports for copper

Link copied
SKU
EAN
GTIN
MPN

Modicon Standard Unmanaged Switch - 8 ports for copper by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £194.25 excl. VAT. Voltimum+ members earn 1 point per unit.

This product is part of the Modicon Networking range, an offer of Modicon Standard Unmanaged Switch. This unmanaged switch comes with Ethernet TCP/IP protocol. It comes with 8 transmission ports for copper cable. It provides simple connectivity for multiple Ethernet devices and gives customers more options with industrial grade application. This product works at a power consumption of 1.5W and a rated voltage from 12V to 24V DC. It has a removable 3-pin power supply connector . Its dimensions are 38mm (width) x 102mm (height) x 79mm (depth) and weighs 0.150kg. It has shielded connectors which is suitable for small, isolated networks or system with light network traffic and network with low complexity levels. It is CE, UL, RCM, UKCA, EAC certified and conforms to UL 61010 and EN/IEC 61131 standards. It is designed to be mounted on a symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 194.25 Excl. VAT

Specifications

Depth 79 mm
Width 38 mm
Height 102 mm
Layer 2 yes
Layer 3 no
EFFR0001 no
EFFR0002 no
Ethernet yes
Max. PoE power 0 W
Number of ports PoE 0
Max. power consumption 1.5 W
Redundant power supply no
Power over Ethernet (PoE) Other
Number of ports 100 Mbps ST 0
Number of ports 100 Mbps POF 0
Number of ports 1000 Mbps GBIC 0
Number of ports 10/100 Mbps M12 0
Number of max. stackable switches 0
Number of ports 1000 Mbps SC (LX) 0
Number of ports 40 Gbps Mini GBIC 0
Number of ports 1000 Mbps Mini GBIC 0
Number of ports 100/1000 Mbps Mini GBIC 0

Documents

Declaration of Conformity (Sustainability)

MCSESU083FN0 REACh Regulation

Open

User guide

Modicon MCSESU Unmanaged Switch, Installation Manual

Open

Product data sheet

Open

Catalog

Catalog Modicon Networking: Connecting Ethernet devices - English

Open

Declaration of Conformity (Sustainability)

MCSESU083FN0 EU RoHS Directive

Open

Declaration of conformity

Modicon Switch, Declaration of Conformity, UKCA, Schneider Electric

Open

Environmental Disclosure

Modicon Unmanaged Switch - Product Environmental Profile

Open

Circularity Profile

Modicon Unmanaged Switch - Product End-of-Life Instructions

Open
