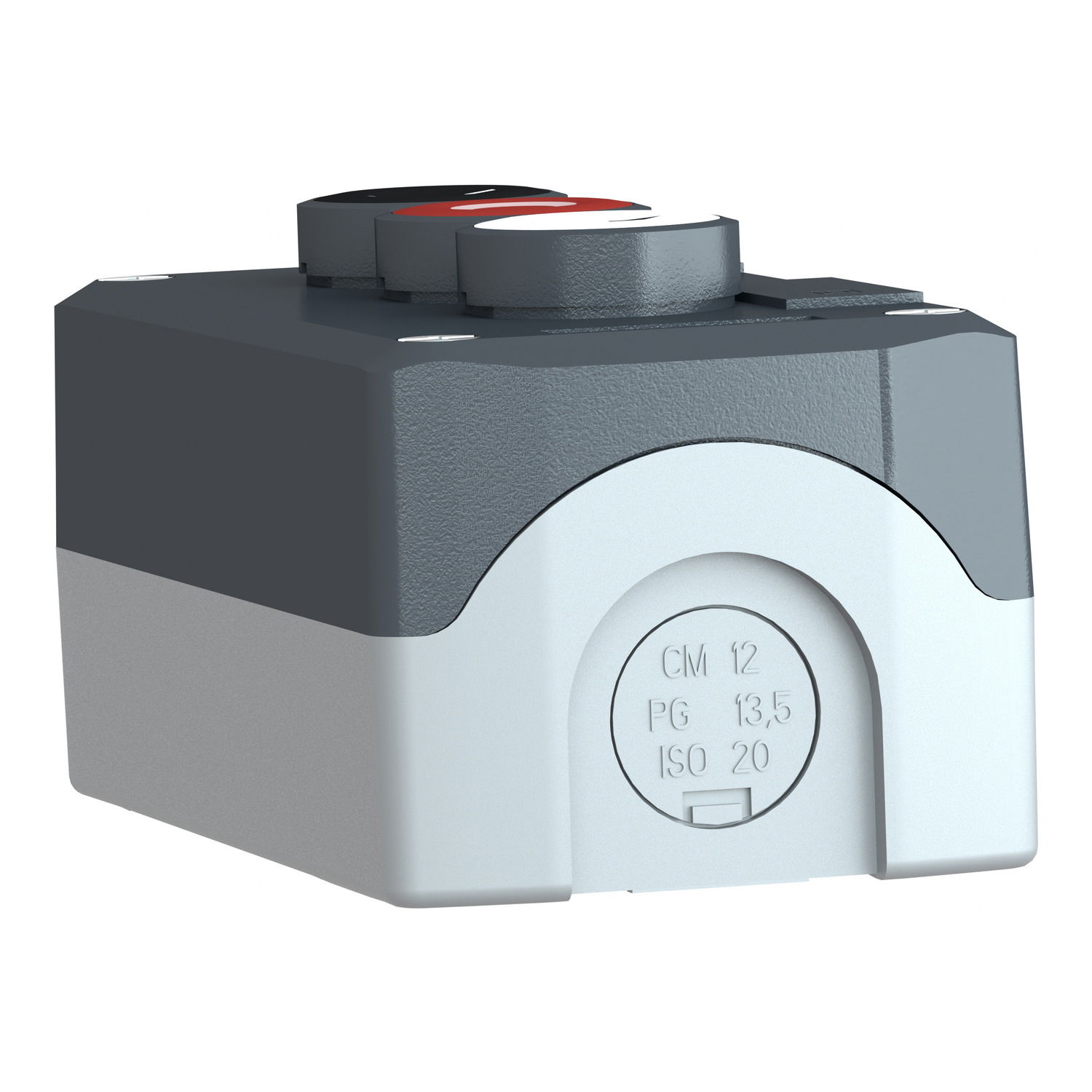

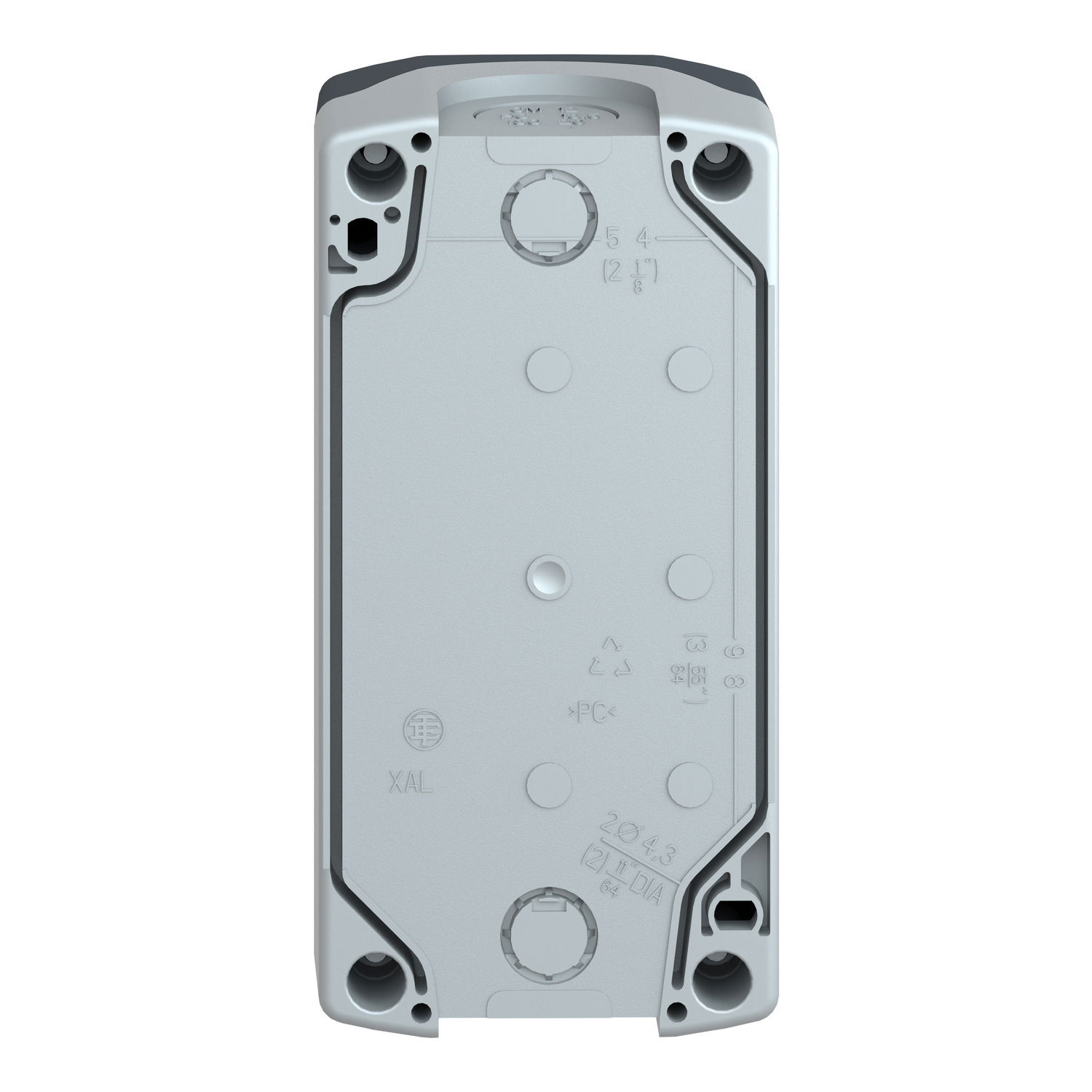

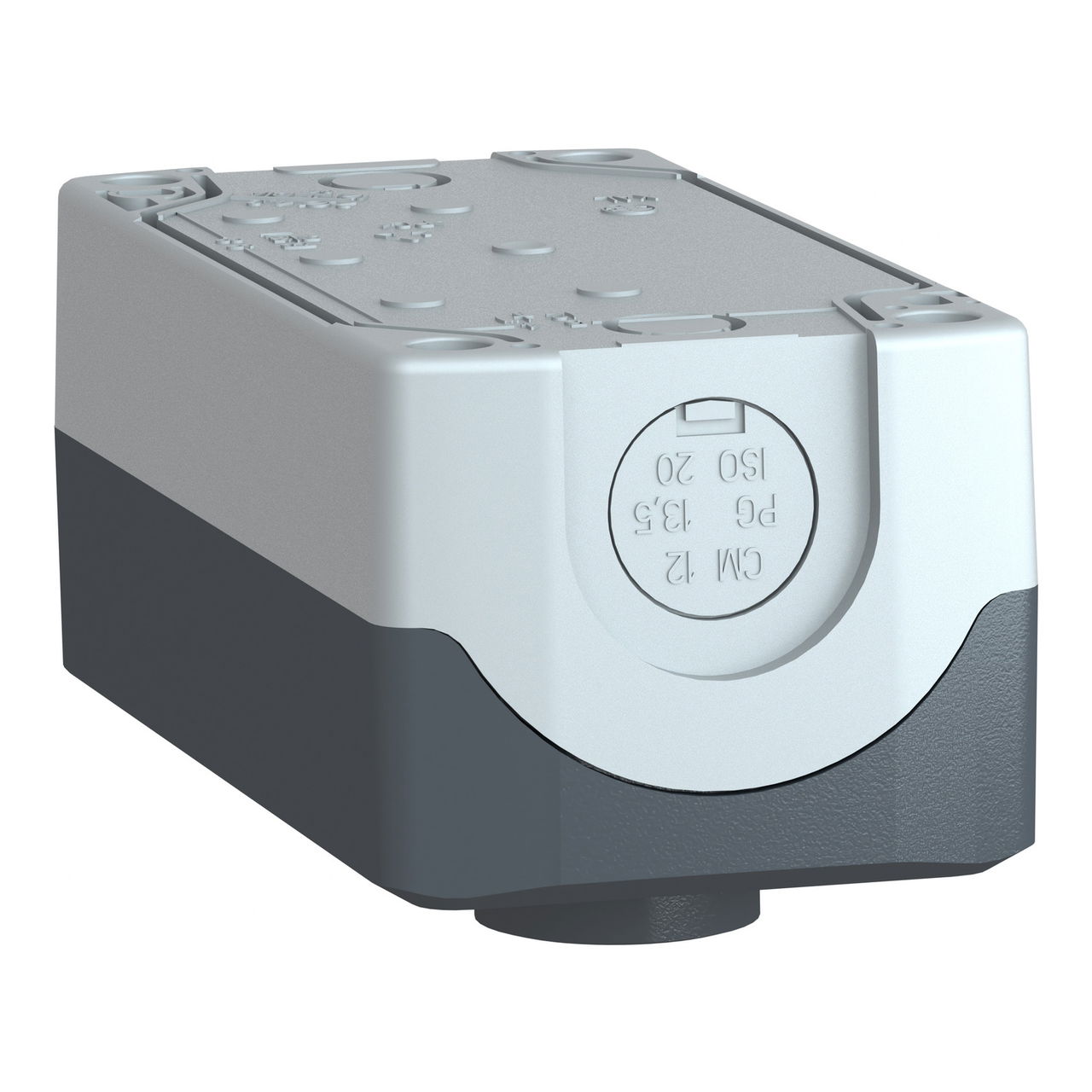

Dark grey station - white flush/red flush/black flush pushbuttons Ø22

Link copied
SKU
EAN
GTIN
MPN

Dark grey station - white flush/red flush/black flush pushbuttons Ø22 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £66.92 to £67.59 excl. VAT. Voltimum+ members earn 9 points per unit.

This Harmony XALD yellow control station with 3 functions is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with 3 push buttons for 3 functions enables machine builders to easily add required control and signalling functionality on their machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Voltimum+ Loyalty Programme Loyalty points: 9

Price range: £ 66.92 - £ 67.59 Excl. VAT

Specifications

Housing colour Grey
Housing material Plastic
Power consumption -
Colour housing cover Grey
Number of key switches 0
Number of push buttons 3
Degree of protection (IP) Other
Number of indicator lights 0
Number of command positions 3
Suitable for emergency stop no
Rated control supply voltage AC 50 Hz
Number of mushroom-shaped push-buttons 0
Number of contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

XALD334 REACh Regulation

Open

Instruction sheet

XALD / XALK - Empty control station, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XALD and XALK plastic control stations catalog

Open

Declaration of Conformity (Sustainability)

XALD334 EU RoHS Directive

Open

Declaration of conformity

XALD/K Control stations

Open

Environmental Disclosure

Harmony XAL Control Stations

Open

Circularity Profile

Harmony XAL Control Stations

Open
