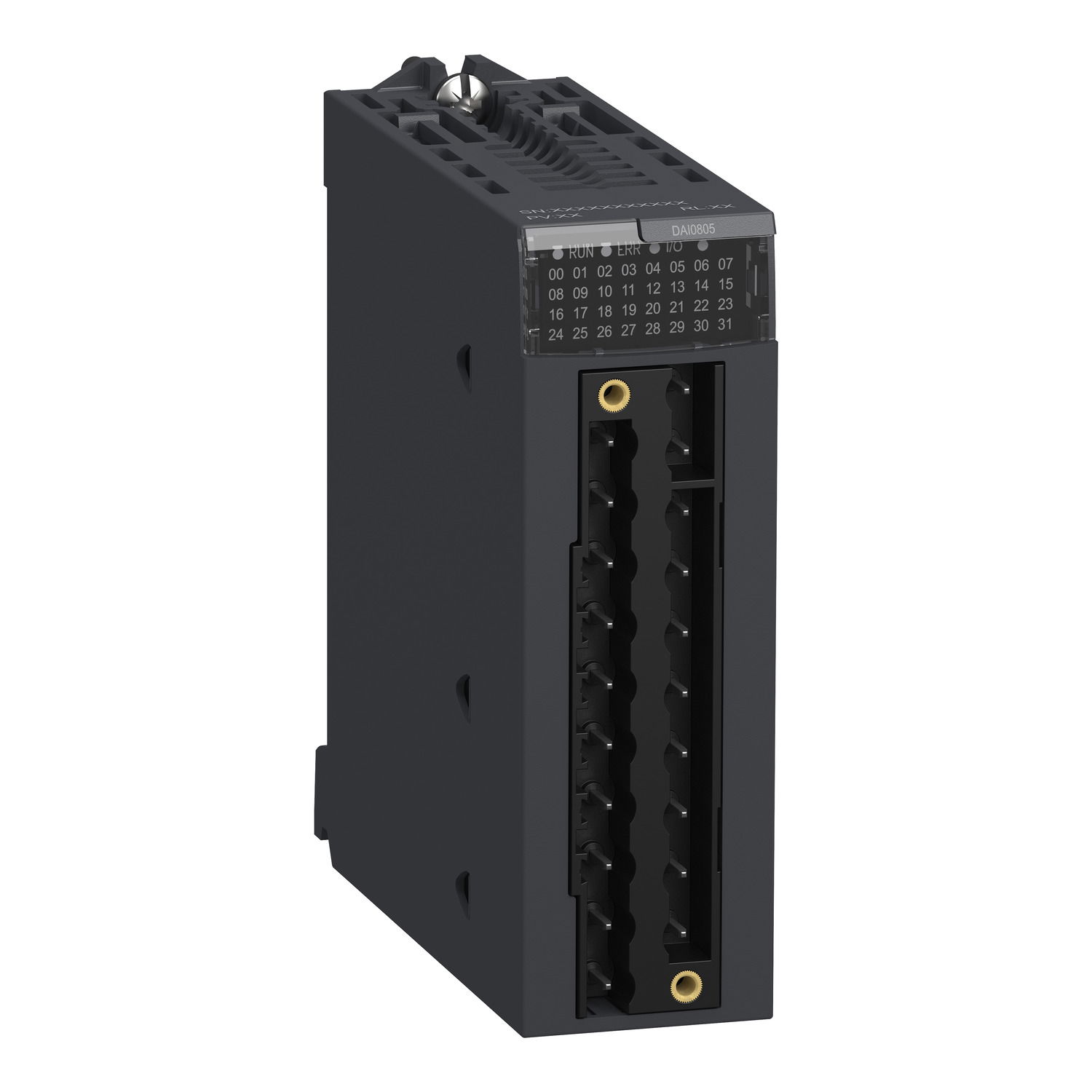

Discrete input module X80 - 8 inputs - 200...240 V AC

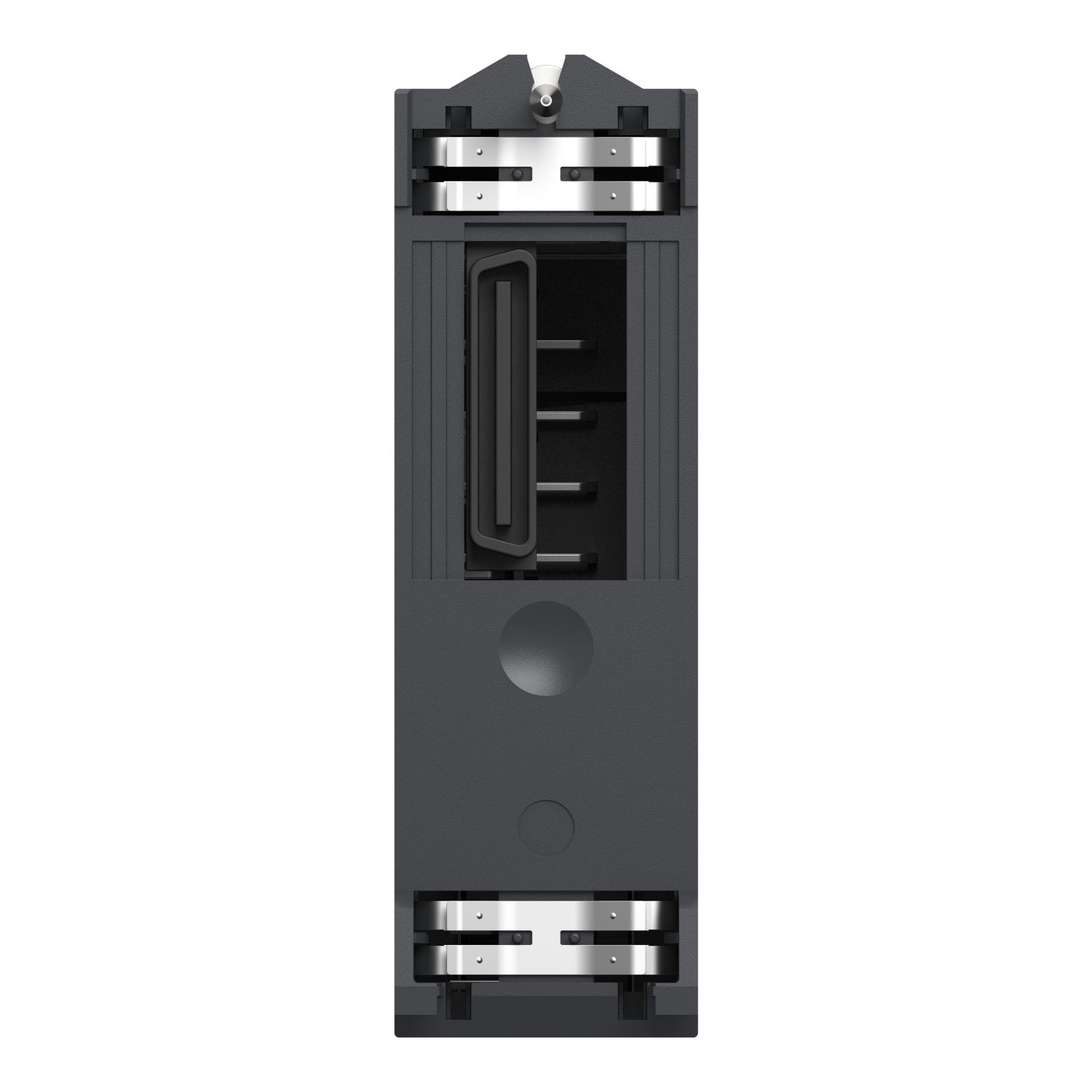

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 2 of 7

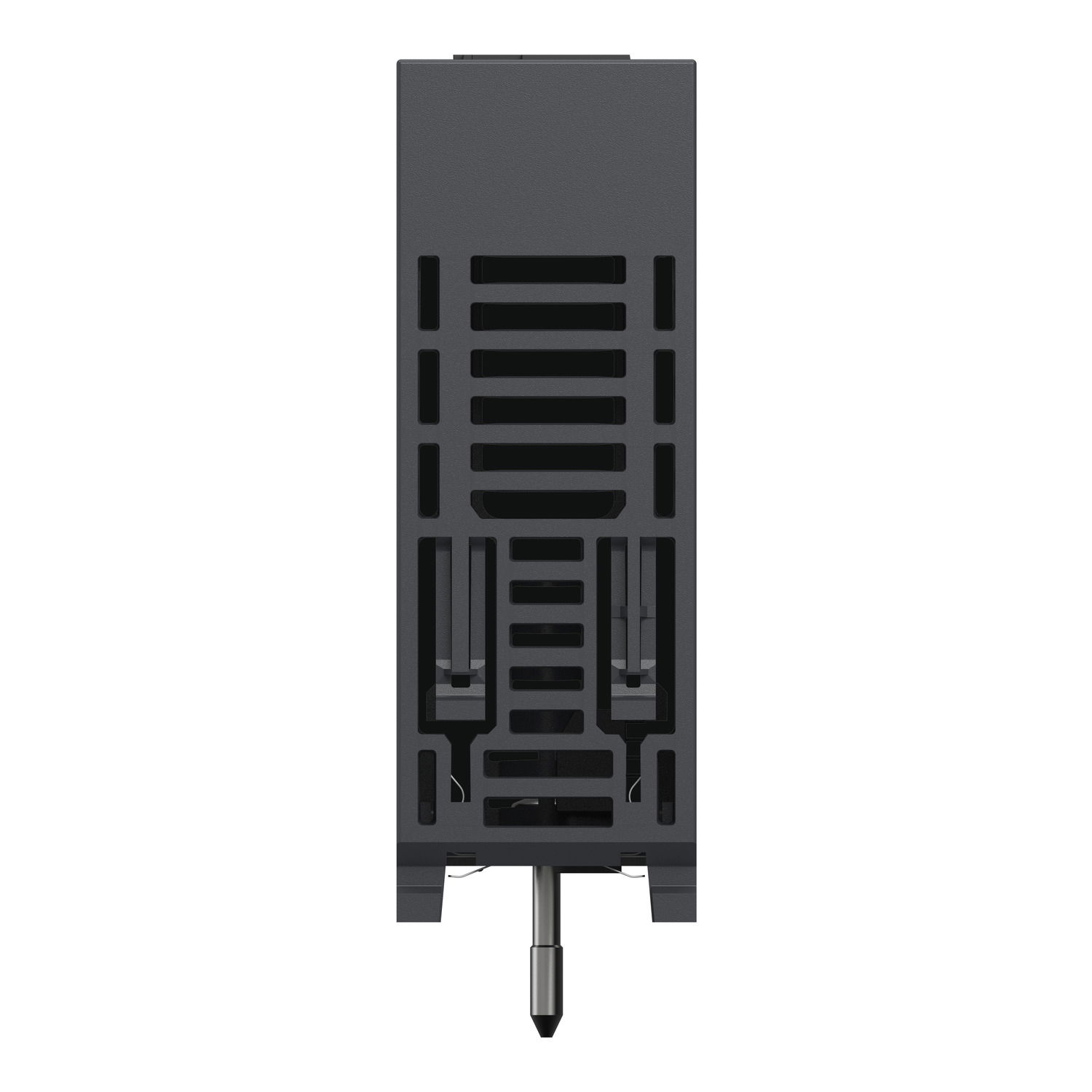

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 3 of 7

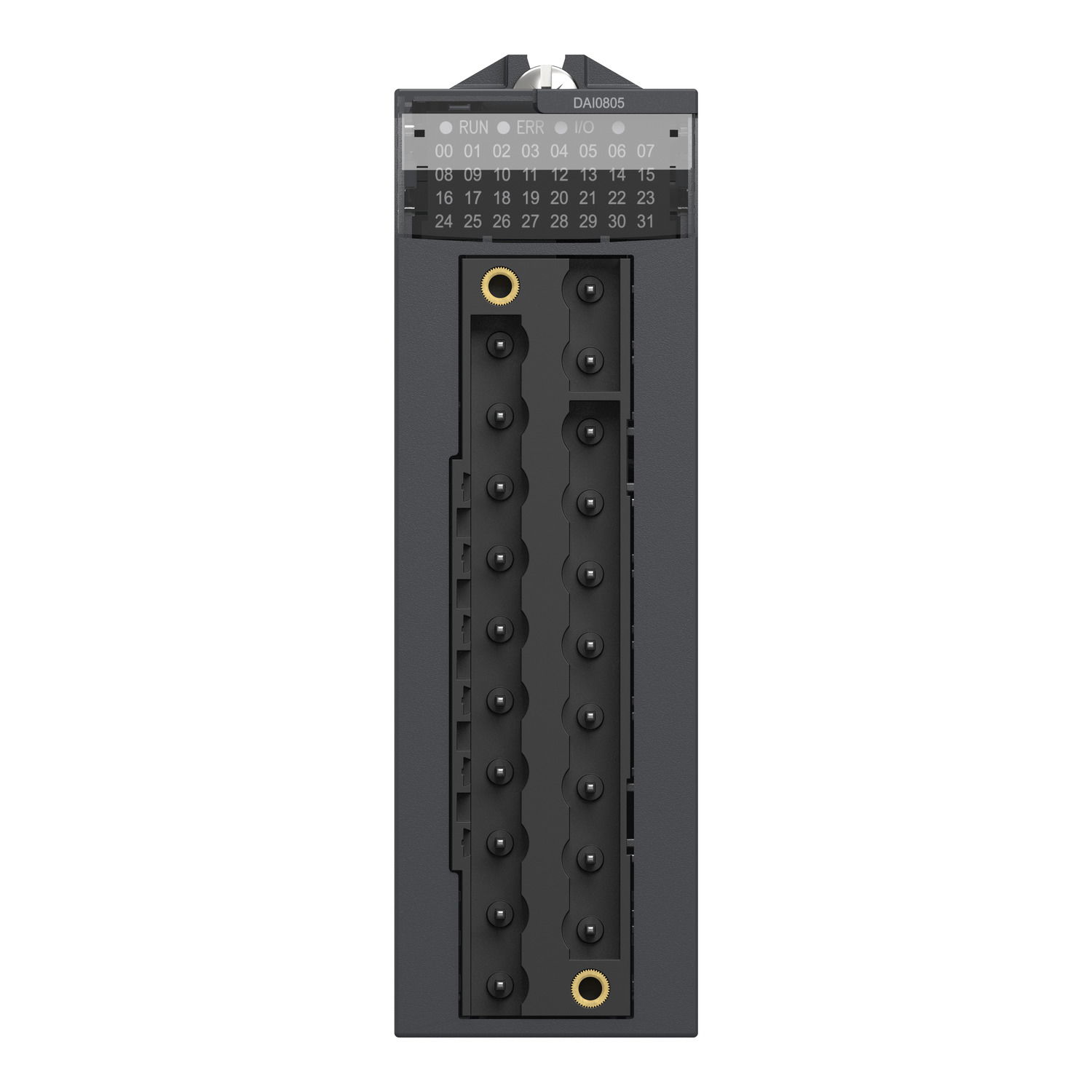

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 4 of 7

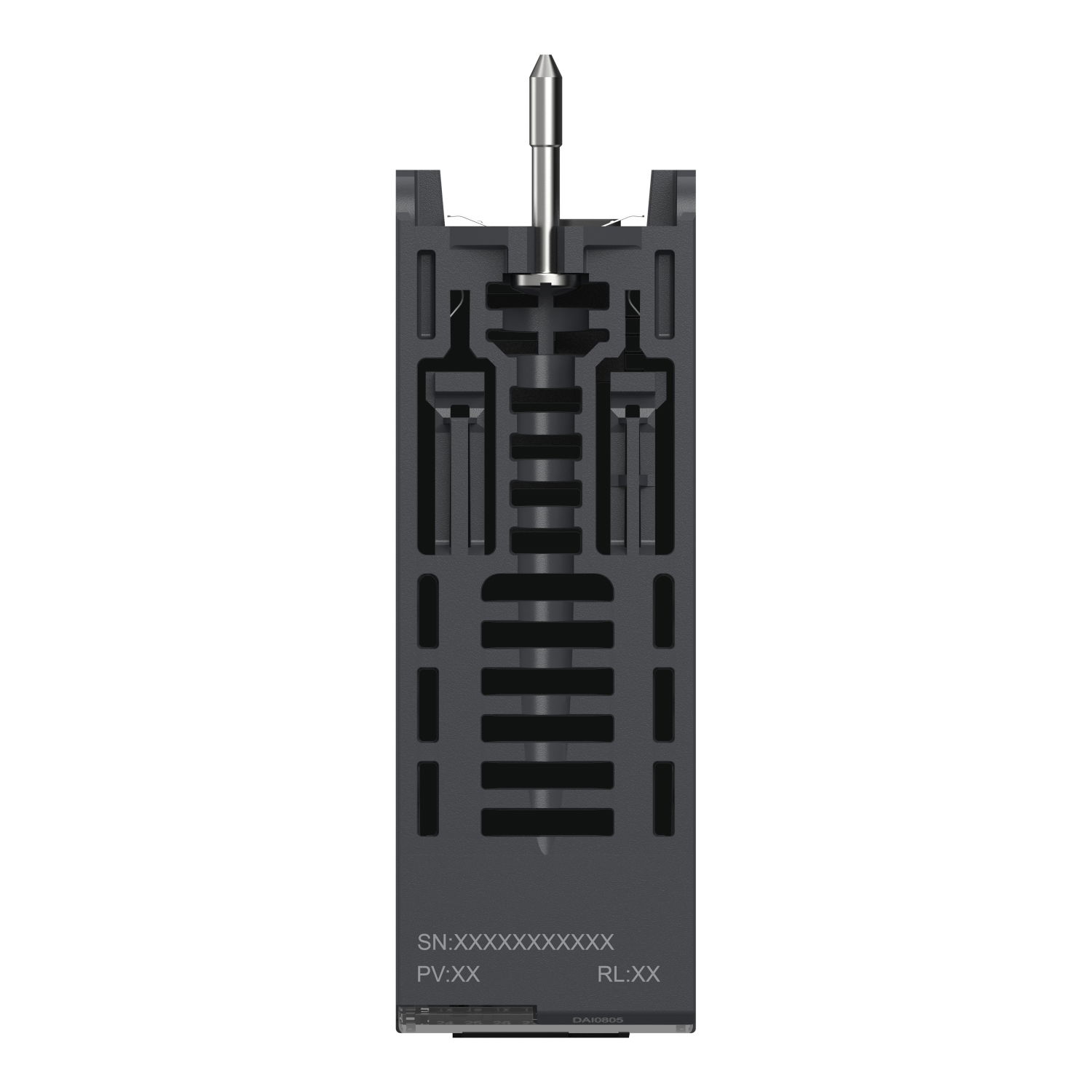

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 5 of 7

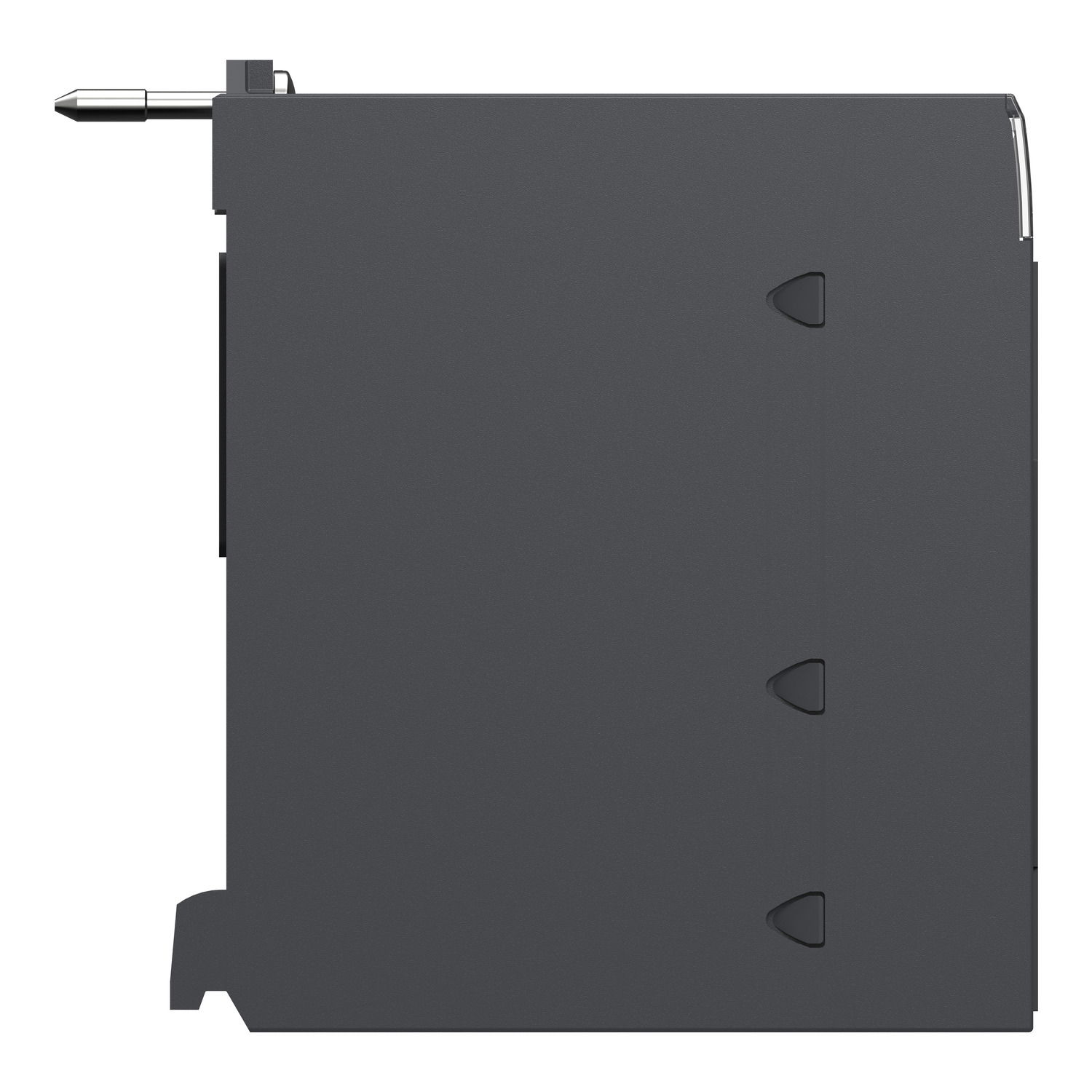

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 6 of 7

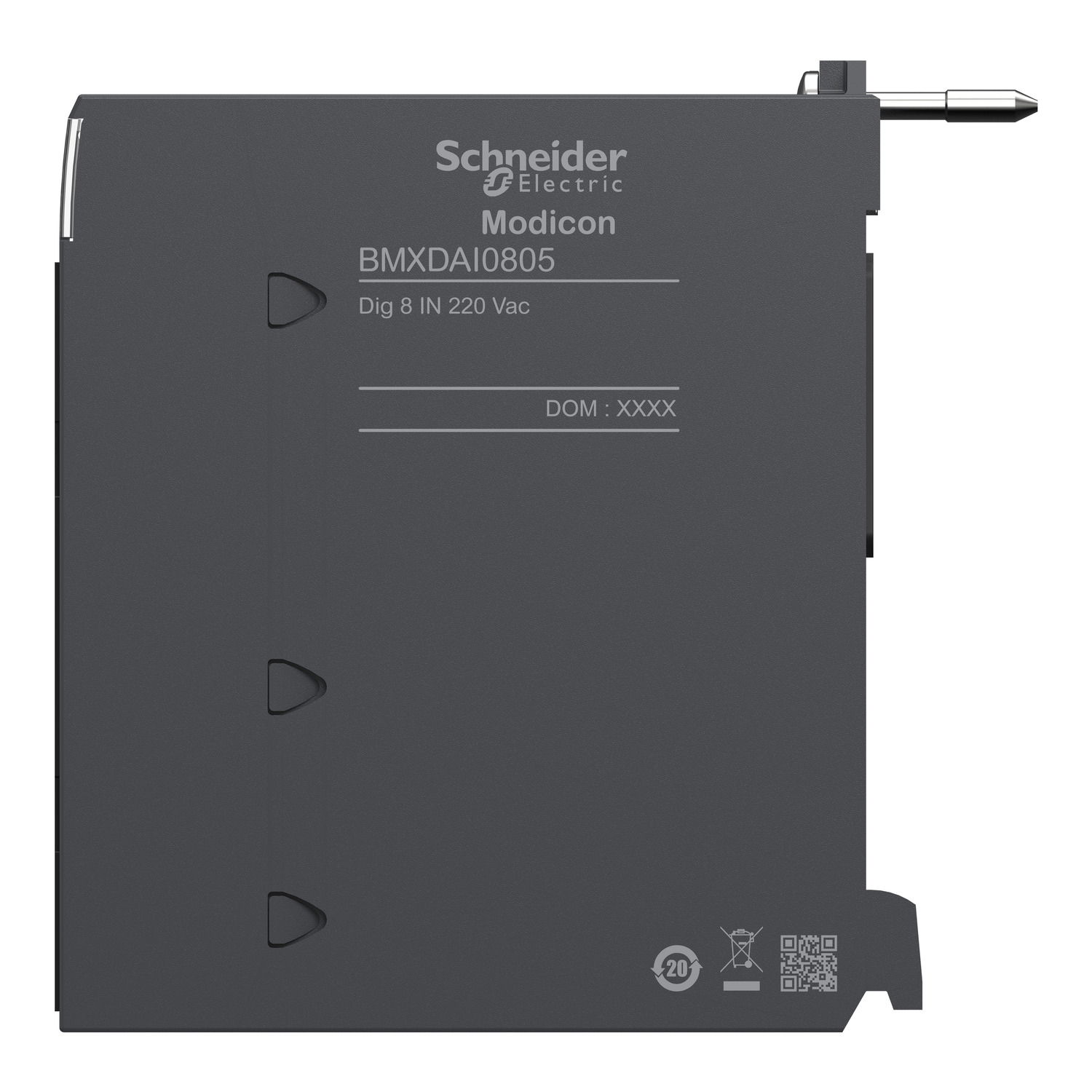

Discrete input module X80 - 8 inputs - 200...240 V AC – Image 7 of 7

1 / 7

Discrete input module X80 - 8 inputs - 200...240 V AC

Name: Discrete input module X80 - 8 inputs - 200...240 V AC
Brand: Schneider Electric
SKU: BMXDAI0805
Availability: InStock

Discrete input module X80 - 8 inputs - 200...240 V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £209.86 excl. VAT. Voltimum+ members earn 25 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 200V AC to 240V AC, a current consumption of 76mA at 3.3V DC, 93.6mA at 24V DC and a power dissipation 4.73W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It is an IP20 rated product. It weighs 0.12kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMXDAI0805

EAN: 3595864081595

GTIN: 3595864081595

MPN: BMXDAI0805

Loyalty points: 25

Price: £ 209.86 Excl. VAT

Specifications

Depth	150 mm
Width	33 mm
Height	100 mm
Redundancy	no
Output current	-
Power consumption	4.73 W
Supply voltage DC
Type of digital output	None
Type of output voltage	AC
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Number of digital inputs	8
Input current at signal 1	10.4 mA
Number of digital outputs	0
Permitted voltage at input
SIL according to IEC 61508	None
Digital inputs configurable	no
Permitted voltage at output
Time delay at signal change
Type of electric connection	Plug-in connection
Digital outputs configurable	no
Suitable for safety functions	no
Voltage type (supply voltage)	AC
Type of voltage (input voltage)	AC
Appendant operation agent (Ex ia)	no
Appendant operation agent (Ex ib)	no
Explosion safety category for gas	None
Explosion safety category for dust	None
Short-circuit protection, outputs available	no
Performance level according to EN ISO 13849-1	None
