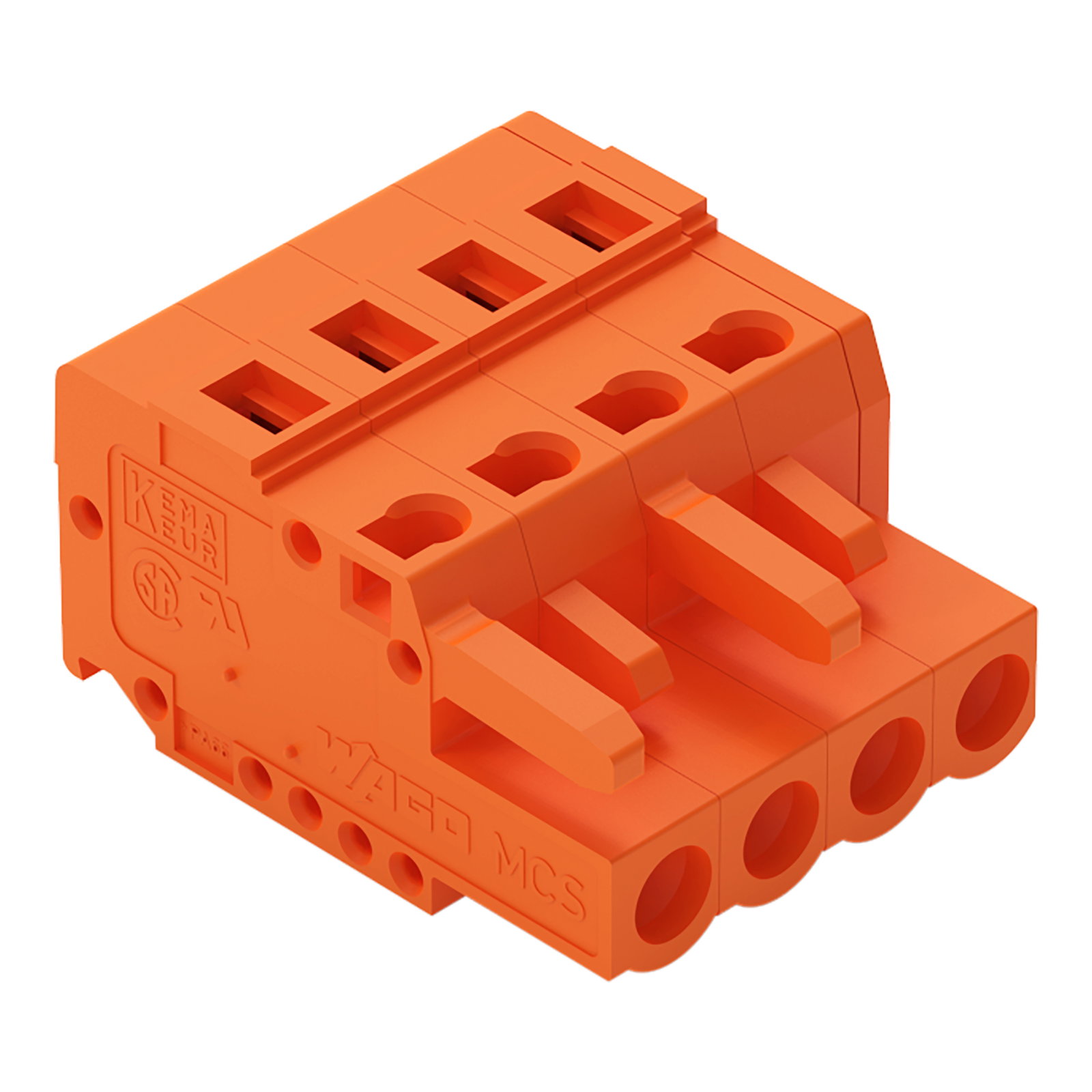

1-conductor female connector CAGE CLAMP® 2.5 mm² orange

Name: 1-conductor female connector CAGE CLAMP® 2.5 mm² orange
Brand: Wago
SKU: 231-304/026-000
Availability: InStock

1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 4-pole; orange

Product identifiers

SKU: 231-304/026-000

EAN: 4044918345637

GTIN: 4044918345637

MPN: 231-304/026-000

Price range: £ 0.09 - £ 2.38 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Contact type	Bus
Rated voltage	320
Housing colour	Orange
Coating housing	Uncoated
Number of poles	4
Housing material	Plastic
Material contact	Other copper alloys
Pollution degree	2
Rated current In	16
Type of connection	Printed circuit board to cable
Rated surge voltage	4
Operating temperature	-60 - 85
Over voltage category	III
Connectable cable type	Tubular cable
Material insulation body	Thermoplastic
Modular spacing contacts	5.08
With protective conductor	no
Material of contact surface	Tin
Modular spacing connections	5.08
Type of electric connection	Spring clamp connection
RAL-number (similar) housing	-
Number of plug-in contact rows	1
Angle contact/conductor connection	180° (horizontal)
Degree of protection (IP), mounted	IP20
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 21.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
