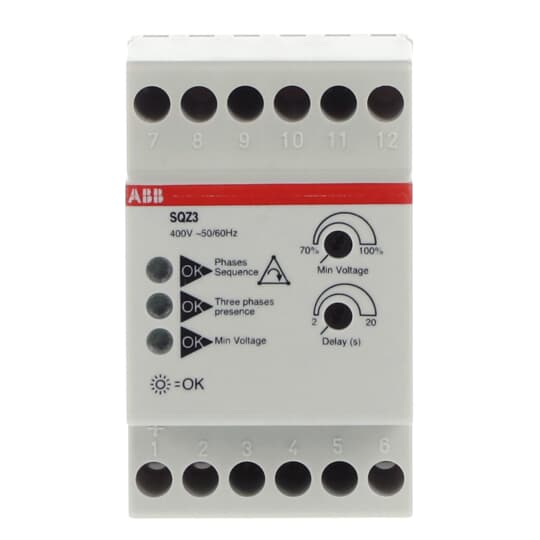

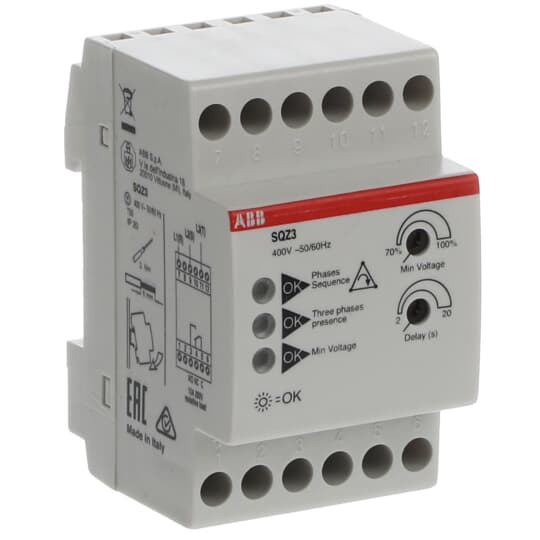

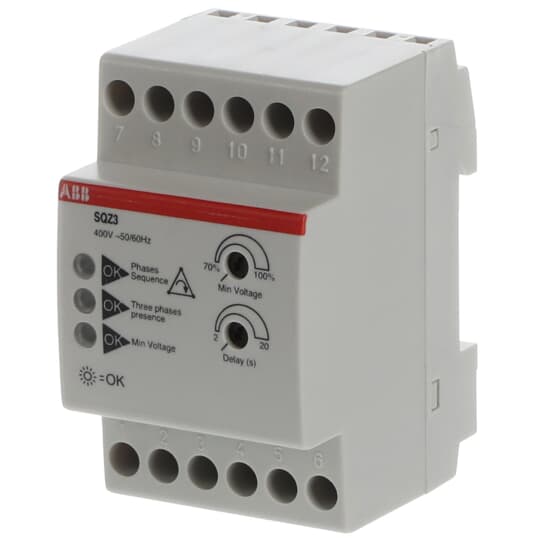

SQZ3 Phase and sequence relay

Link copied
SKU
EAN
GTIN
MPN
The SQZ3 relay performs the following monitoring functions in three-phase networks at 400 V AC for phase sequence, phase failure and minimum voltage (adjustable, max. 70% of Vn). If one of the three faults is detected, the output relay (safety switching contact) intervenes with one of contact) intervenes with a delay adjustable from 2 to 20 s only at minimum voltage and controls the following controls the following: Audible alarms, motor control contactors, circuit breakers with coils

Voltimum+ Loyalty Programme Loyalty points: 150

Price: £ 327.85 Excl. VAT

Specifications

Voltage
Frequency
Indication LED
Indication three phases yes
Motor rotation direction tester no
Contact less detection of the sense of rotation yes

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108467A9482_en_E_Reach Declaration - ABB S.p.A. Vittuone.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK106713A5636_deenfrit_A_EU Declaration of Conformity_SQZ 3.pdf

Open
