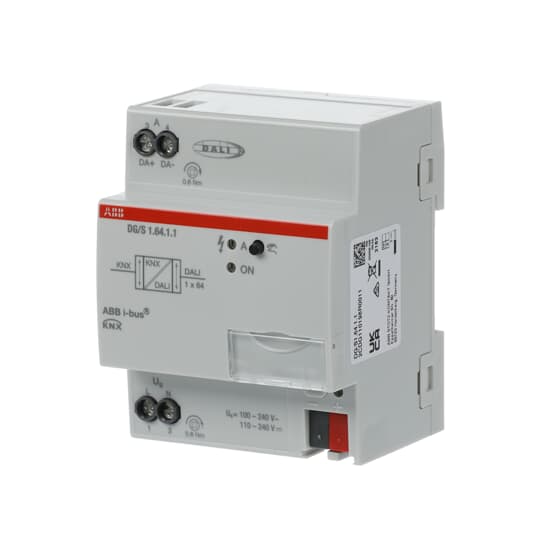

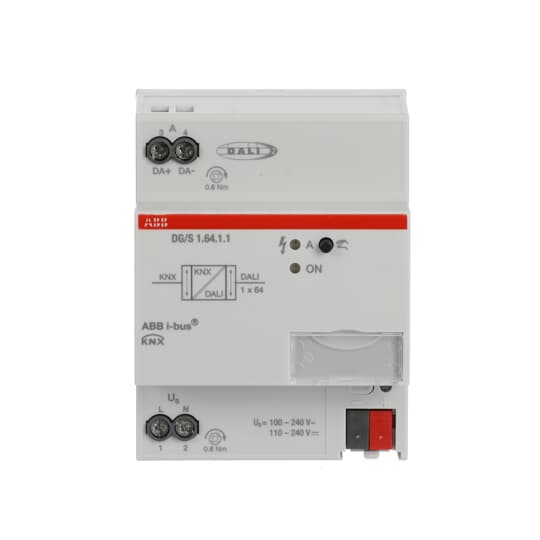

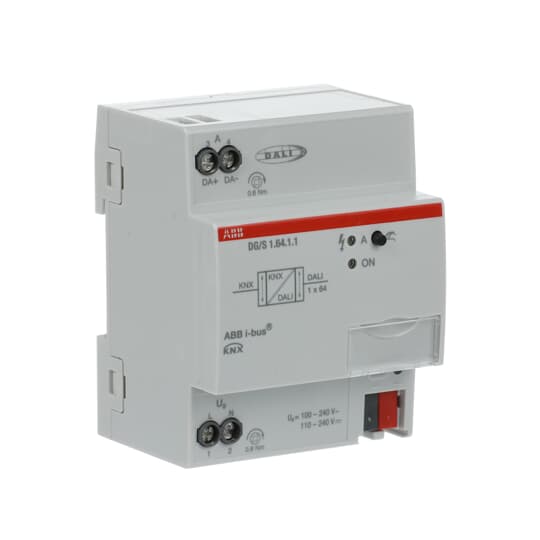

DG/S1.64.1.1 DALI Gateway, Basic, 1-fold, MDRC

Link copied
SKU
EAN
GTIN
MPN

DG/S1.64.1.1 DALI Gateway, Basic, 1-fold, MDRC by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £526.87 excl. VAT. Voltimum+ members earn 278 points per unit.

Single-Master DALI Controller certificated acc. to DALI-2 (EN 62386). The device is used to control DALI or DALI-2 standard devices via ABB i-bus® KNX. One DALI output for up to 64 DALI participants. The DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI participants (64), with lighting groups (16), together in broadcast or per scenes (16). Extensive fault and error messages are available. Slave-, staircase-, force-, block- and scene- function are integrated. Self-contained emergency converter, DT1 acc. EN 62386-202 will be supported. By means of KNX and emergency converter, different emergency tests (e.g., function and duration test) can be triggered. Other DALI devices e.g., DT6 can be controlled via standard DALI commands acc. to EN 62386-102. For diagnostic use and individual change of the DALI address or group assignment a separate software tool (ABB i-bus® Tool) is available.

Voltimum+ Loyalty Programme Loyalty points: 278

Price: £ 526.87 Excl. VAT

Specifications

Model -
Protocol -
Updateable yes
Web-Server no
IR interface no
Voltage type -
Visualization no
Bus system KNX yes
Mounting method DRA (DIN-rail adapter)
Operating voltage
Power consumption -
Provider dependent no
With LED indication yes
Degree of protection (IP) IP20
Radio frequency bidirectional no
Bus system KNX-RF (Radio Frequency) no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

4_TE_MB_XX_V1-0_2CDC072033F0015_Rev_A.eps

Open

Instructions for use

DGS_X6411_MBA_7S_V1-0_2CDG941167P0001.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

DGS_16411_CE-ROHS_xx_V1-5_2CDK507168D2701-06_Ref_D.pdf

Open
