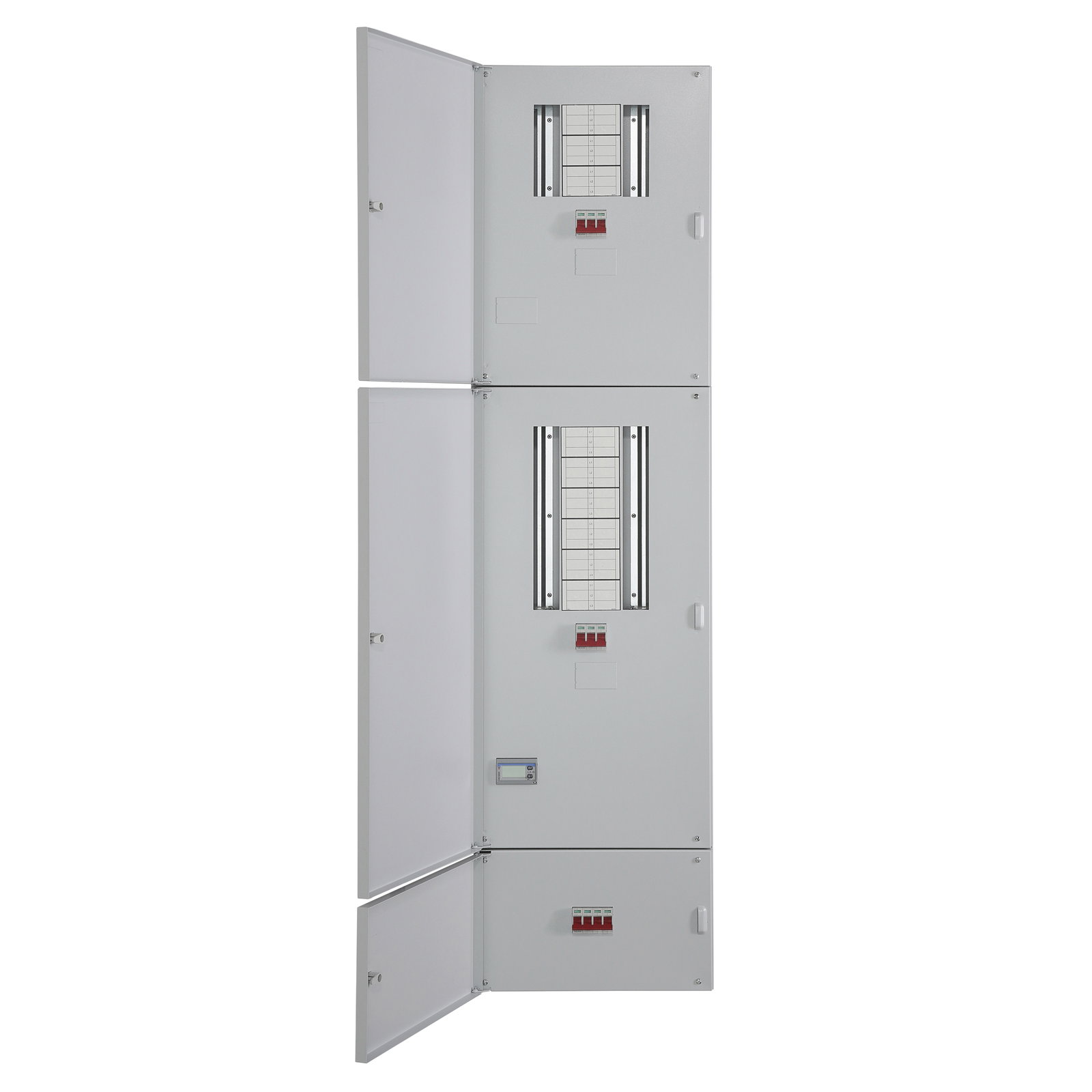

Vertical Lighting & Power 12 + 6-Way Pulsed Out/Modbus

Vertical Lighting & Power 12 + 6-Way Pulsed Out/Modbus 12W/6W 125A 3P+N Power & Lighting distribution board for commercial applications to aid compliance with Building Regulations Part L2 Complete with Switch disconnector and 2 channel Pulsed Output/Modbus RTU meter for ease of use by the property manager and installation by the contractor Accepts Wylex 10kA and miniature 6kA final circuit protection devices; Single and Triple Pole MCBs from 6A to 63A, Single Pole RCBOs from 6A to 50A and AFDDs from 6A to 40A Individual isolation for top and bottom boards which are both fully rated at 125A RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3
