OTP45BA3M Enclosed Switch Disconnector
OTP45BA3M Enclosed Switch Disconnector
OTP45BA3M Enclosed Switch Disconnector by ABB is listed by 1 electrical wholesaler on Voltimum UK, including TLA, and currently in stock. Trade price £99.74 excl. VAT. Voltimum+ members earn 44 points per unit.

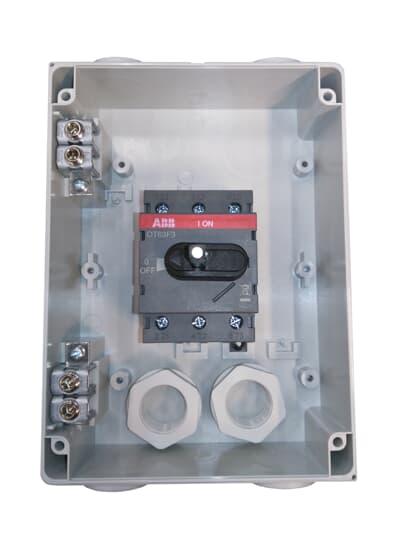

Encl. Switch Disconnector, 3-p. 415V AC23 45A, 22kW. Plastic enclosure. IP65. RedYellow Selector handle. Interlocked cover. Defeatable interlocking. The enclosure in the OTP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables and one control cable, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked. The interlocking can be by-passed, for thermographing etc. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal.
Product identifiers
SKU: OTP45BA3M
EAN: 6417019131214
GTIN: 6417019131214
MPN: OTP45BA3M
Loyalty points:
44
Price: £ 99.74 Excl. VAT
Specifications
| Depth | 90 |
| Width | 145 |
| Height | 200 |
| Interlockable | yes |
| Number of poles | 3 |
| Number of switches | 1 |
| Device construction | Complete device in housing |
| Motor drive optional | no |
