PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 opaque PC cover H40

PC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 opaque PC cover H40

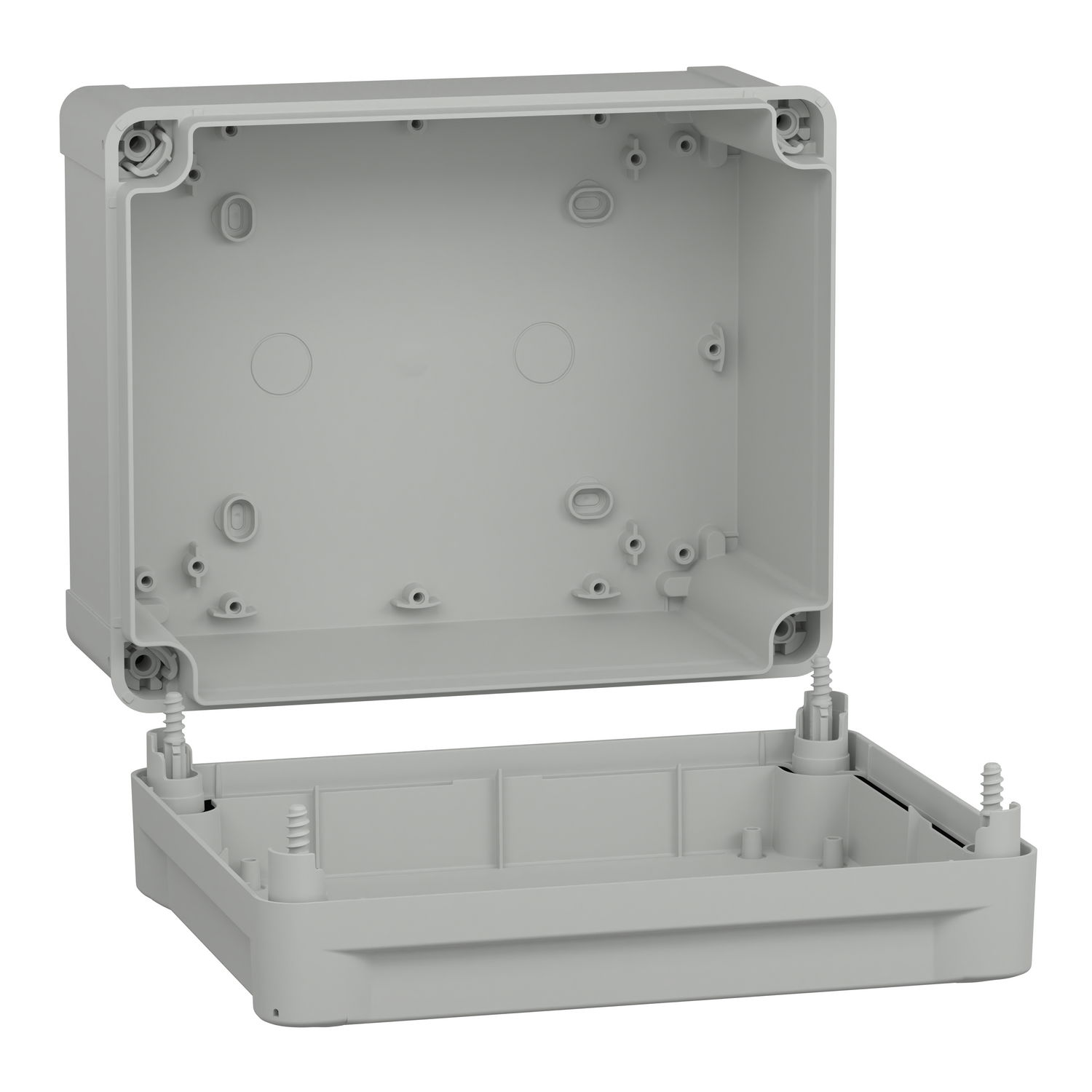

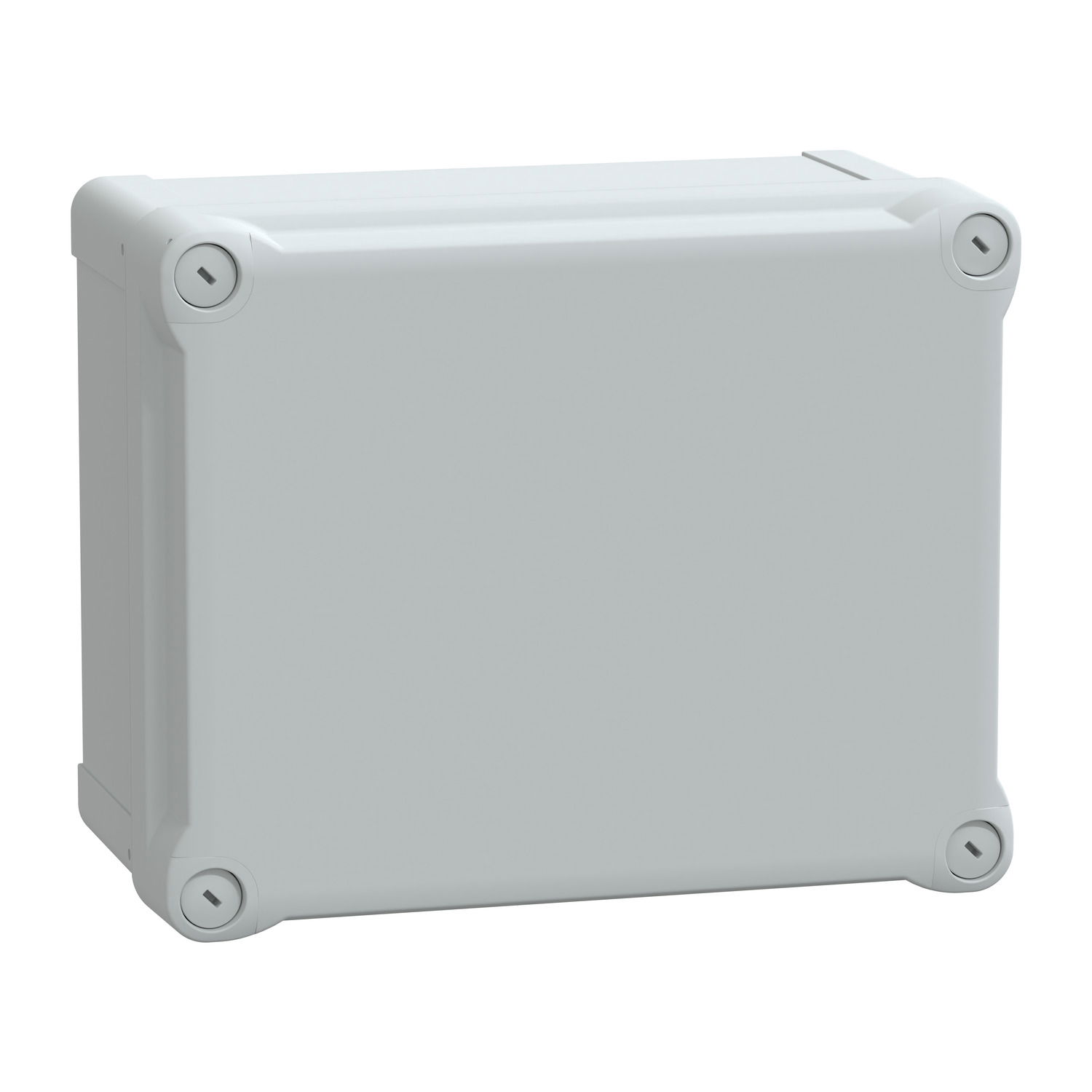

Thalassa TBP industrial PC box with opaque PC cover H40. Int is 225 x 175 x 120 mm. Ext is 241 x 194 x 127 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).

Product identifiers

SKU: NSYTBP241912H
EAN: 3606480165719
GTIN: 3606480165719
MPN: NSYTBP241912H

Voltimum+ Loyalty Programme Loyalty points: 6

Price range: £ 43.56 - £ 46.92 Excl. VAT

Specifications

Depth 127 mm
Width 194 mm
Colour Grey
Height 241 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 120 mm
Built-in depth -
Impact strength IK08
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet -
Material plate thickness door/cover -
Number of openings for flange plates -
