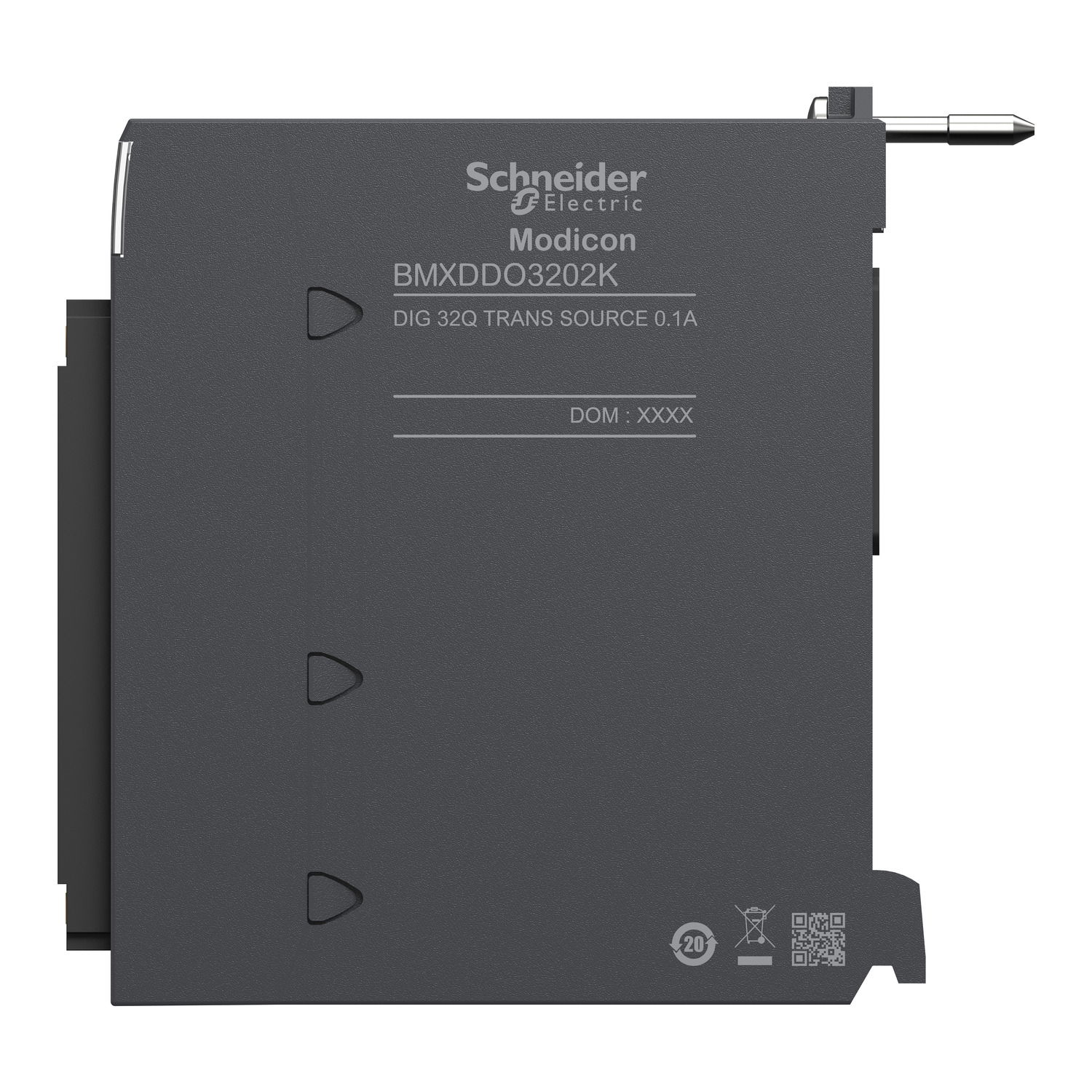

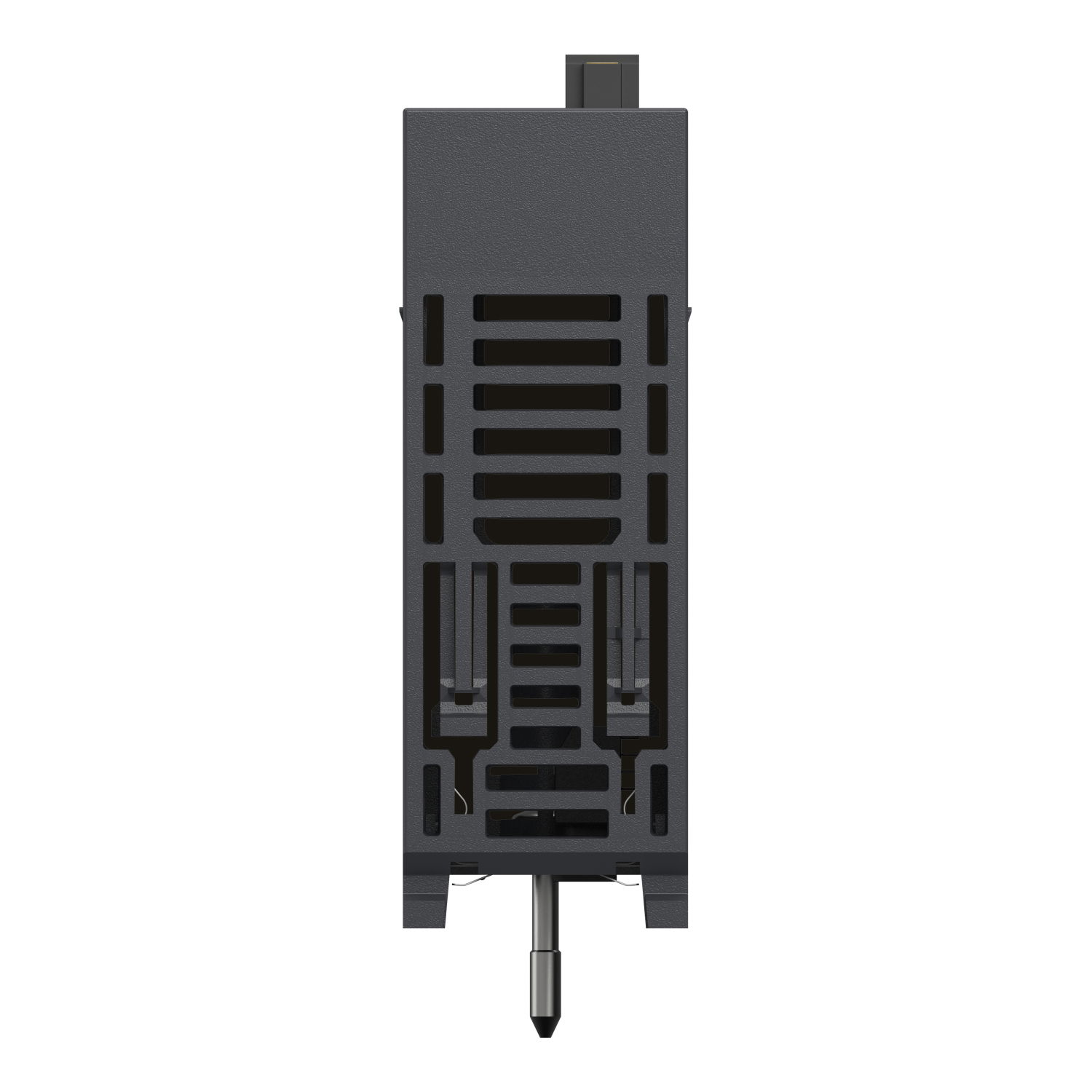

Discrete output module X80 - 32 outputs - 24 V DC positive

Link copied
SKU
EAN
GTIN
MPN

Discrete output module X80 - 32 outputs - 24 V DC positive by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and Rexel Group. It is currently in stock at all of them. Trade prices range from £392.53 to £422.52 excl. VAT. Voltimum+ members earn 50 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 32 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 3.6W, a typical current consumption 125mA at 3.3V DC and 0.1A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 312254 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Voltimum+ Loyalty Programme Loyalty points: 50

Price range: £ 392.53 - £ 422.52 Excl. VAT

Specifications

Depth 150 mm
Width 33 mm
Height 100 mm
Redundancy no
Output current 0.1 A
Power consumption 3.6 W
Supply voltage DC
Type of digital output Transistor
Supply voltage AC 50 Hz
Number of digital inputs 0
Number of digital outputs 32
SIL according to IEC 61508 None
Permitted voltage at output
Type of electric connection Plug-in connection
Suitable for safety functions no
Type of voltage (input voltage) DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
Performance level according to EN ISO 13849-1 None
