Schneider Electric
Popularity Top 60% More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

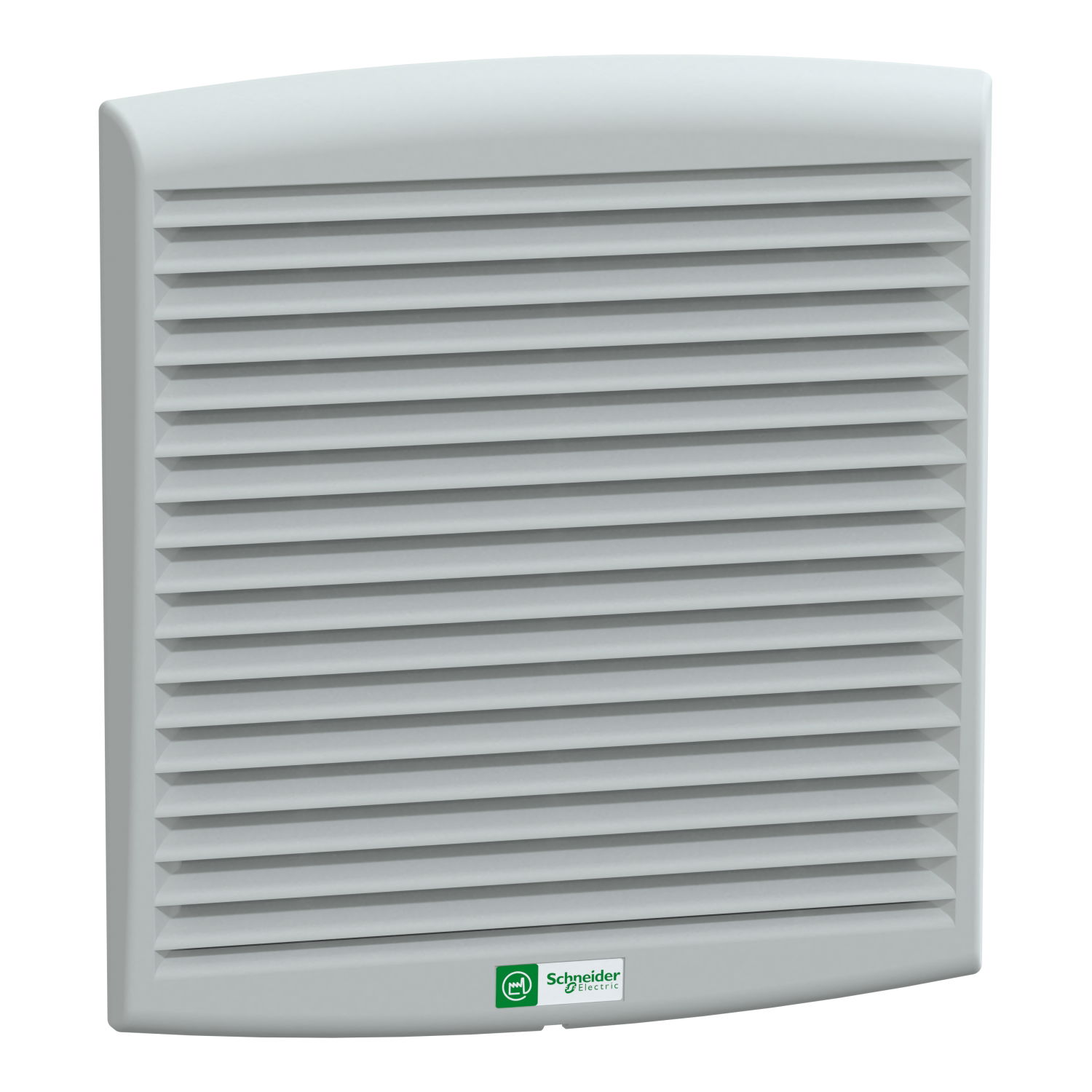

ClimaSys forced vent. IP54, 165m3/h, 230V, with outlet grille and filter G2

Link copied
SKU
EAN
GTIN
MPN

ClimaSys forced vent. IP54, 165m3/h, 230V, with outlet grille and filter G2 by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £82.44 to £117.55 excl. VAT. Voltimum+ members earn 15 points per unit.

ClimaSys CV Axial motor ventilator. 230V 50Hz or 60Hz. 14.3 W 50 Hz, 16.3 W 60 Hz. Free flow rate with standard filter of 156 m3/h at 50 Hz and 193 m3/h at 60 Hz. 268 x 248 x 104 mm. Cut-out dimensions of 223 x 223 mm. Outlet grille injected thermoplastic (ASA PC), Grey RAL 7035. Connections terminals by faston connector. 2 protective grille on the front and rear surfaces. Protection IP54.

Voltimum+ Loyalty Programme Loyalty points: 15

Price range: £ 82.44 - £ 117.55 Excl. VAT

Specifications

Depth 104 mm
Width 248 mm
Colour Grey
Height 268 mm
RAL-number 7035
EMC-version no
Rated power 16.3 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no

Documents

Declaration of Conformity (Sustainability)

NSYCVF165M230PF REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSTRUCTIONS NSYCVF FANS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Brochure

ClimaSys Thermal Management System Brochure

Open

Declaration of Conformity (Sustainability)

NSYCVF165M230PF EU RoHS Directive

Open

Declaration of conformity

Declaration of conformity UE Climasys CVF_V03-EN

Open
