"PanelSet S3X stainless 304L, Scotch Brite® finish, H800xW600xD250 mm."

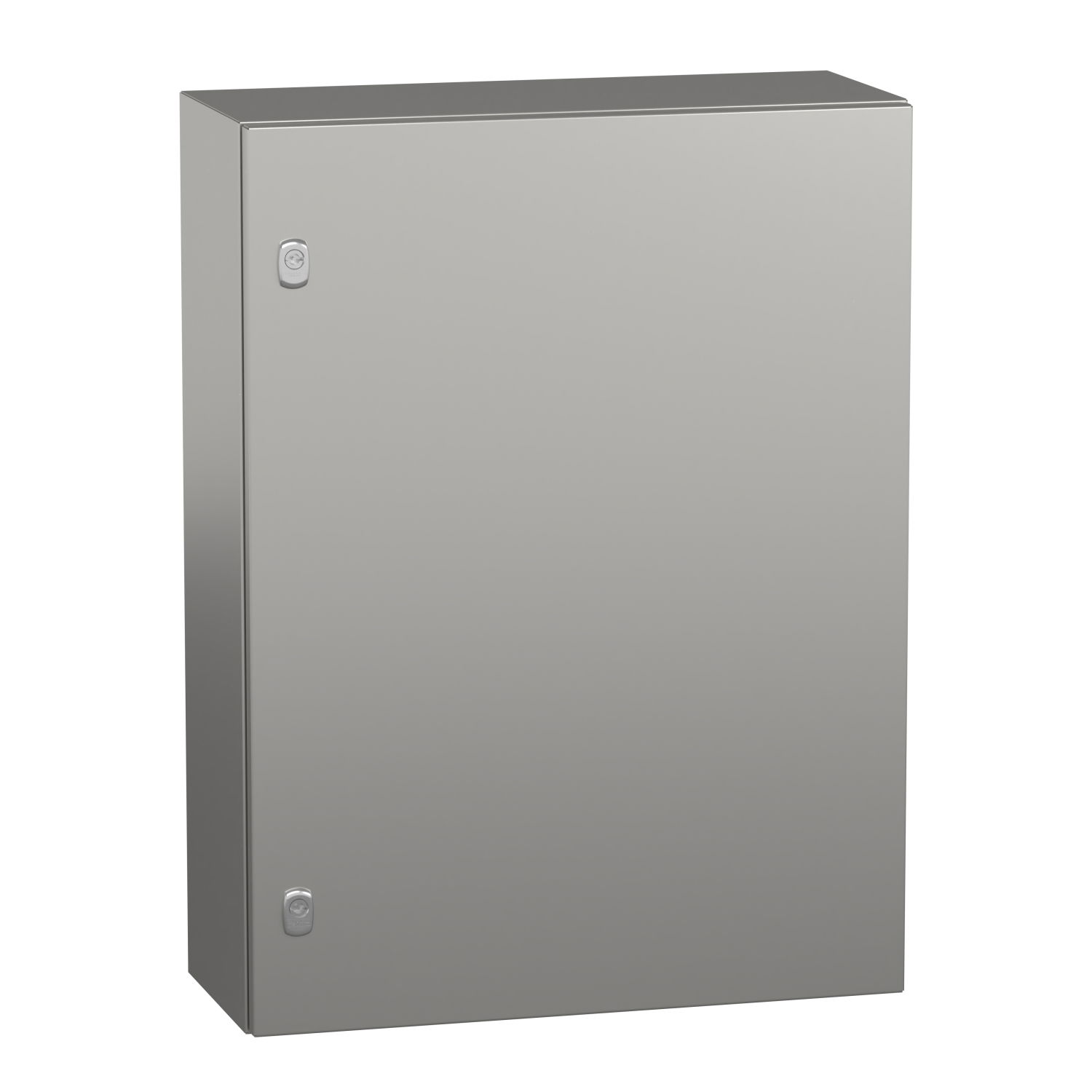

Spacial S3X compact steel enclosure with plain front door. 800 x 600 x 250 mm. Multi-purpose. Installation in wall-mounting. Gutter shaped front rail, single piece body with cross shaped structure. Without mounting plate. Handle double bar 3mm. Body and door stainless steel 304L. Protection IP 55, IK10. Enclosure Scotch-Brite® brushed finish.
Product identifiers
SKU: NSYS3X8625
EAN: 3606480155291
GTIN: 3606480155291
MPN: NSYS3X8625
Loyalty points:
257
Price range: £ 574.56 - £ 644.78 Excl. VAT
Categories
Features
|
Depth
|
250 mm
|
|
Width
|
600 mm
|
|
Colour
|
Stainless steel
|
|
Height
|
800 mm
|
|
Material
|
Stainless steel
|
|
Couplable
|
no
|
|
With door
|
yes
|
|
RAL-number
|
7035
|
|
With cover
|
no
|
|
EMC-version
|
no
|
|
Corner model
|
no
|
|
Freestanding
|
no
|
|
Pitched roof
|
no
|
|
Pre-stamping
|
no
|
|
Pole fastening
|
no
|
|
With rear door
|
no
|
|
Impact strength
|
IK10
|
|
Number of doors
|
1
|
|
Number of locks
|
1
|
|
Material quality
|
Stainless steel 304 (V2A)
|
|
With glazed door
|
no
|
|
Surface finishing
|
Other
|
|
Transparent cover
|
no
|
|
With mounting plate
|
no
|
|
Intermediate mounting
|
no
|
|
With ventilation door
|
no
|
|
Degree of protection (IP)
|
IP55
|
|
Floor standing wall model
|
no
|
|
Number of connector holes
|
0
|
|
Suitable for wall built-in
|
no
|
|
Suitable for wall mounting
|
yes
|
|
Degree of protection (NEMA)
|
12
|
|
Suitable for outdoor set-up
|
no
|
|
Suitable for metrical mounting
|
yes
|
|
Mounting plate depth-adjustable
|
no
|
|
Max. permissible load of the door(s) according to IEC 62208
|
50 N
|
|
Max. permissible load of the enclosure according to IEC 62208
|
50 N
|
|
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
|
-
|
|
Max. permissible load of the mounting plate according to IEC 62208
|
250 N
|
