PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel
1 / 3
PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel
PratiKa socket - fast - angled - 16A - 2P + E - 200...250 V AC - panel by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £14.93 excl. VAT. Voltimum+ members earn 17 points per unit.

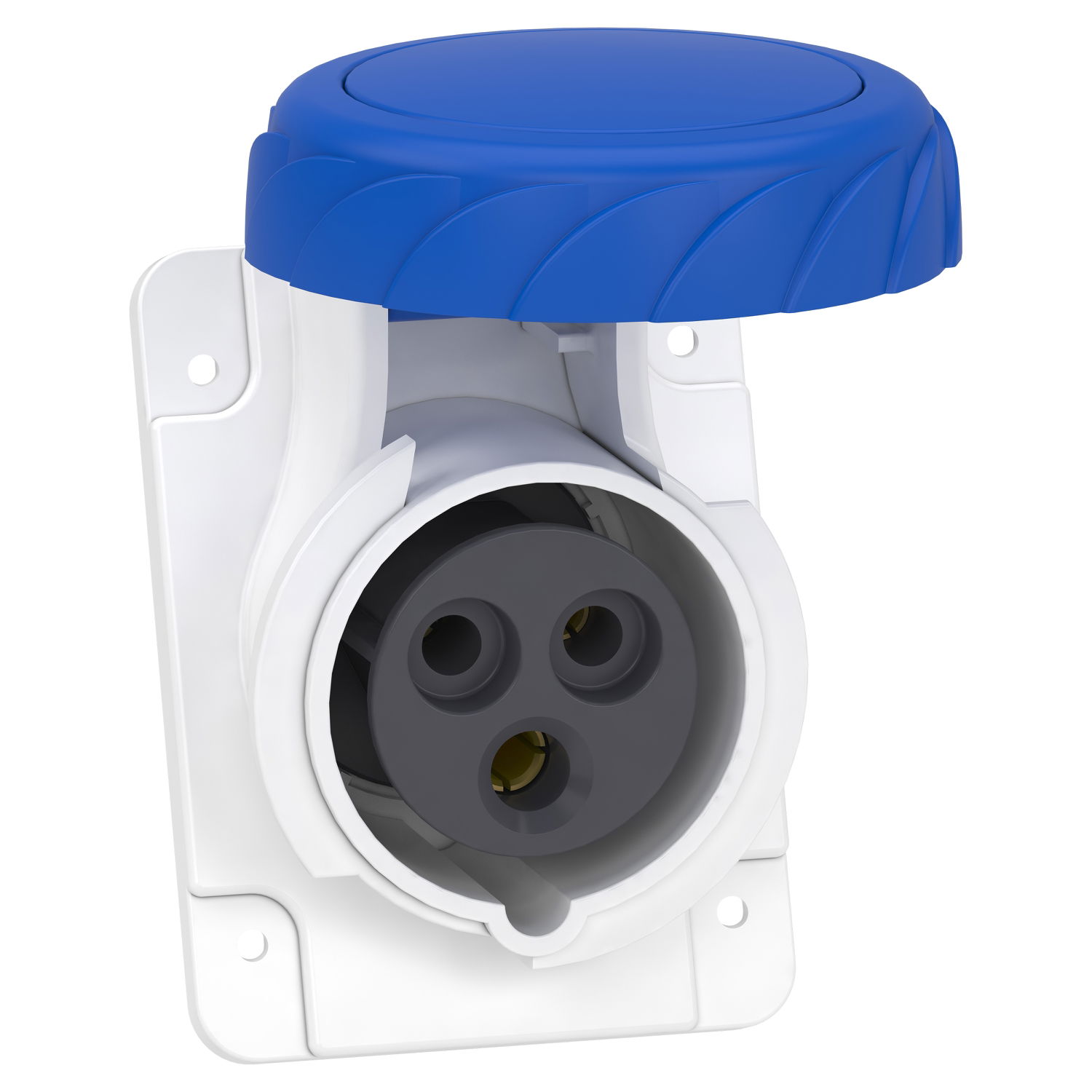

This Pratika industrial socket with fast connection connection is angled panel mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 73mm x (H) 85mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 6h.
Product identifiers
SKU: PKY16F723
EAN: 3303432011185
GTIN: 3303432011185
MPN: PKY16F723
Loyalty points:
17
Price: £ 14.93 Excl. VAT
ETIM group
Specifications
| Material | Plastic |
| RAL-number | 7035 |
| IEC-amperage | 16 A |
| Rated voltage | |
| Military model | no |
| Number of poles | 3 |
| Rated frequency | |
| Contact material | - |
