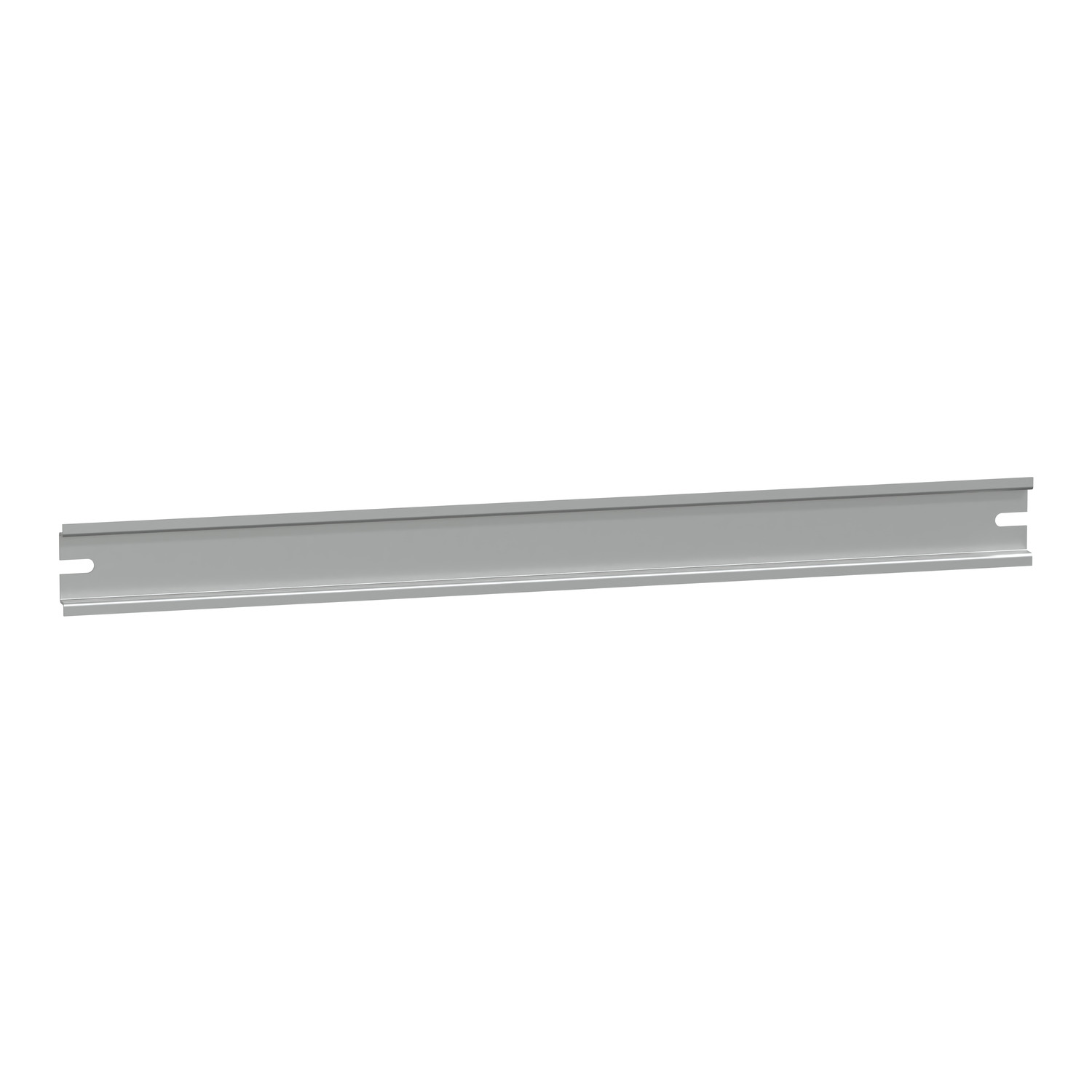

"Symmetrical DIN rail H35D7.5mm - Length 400mm for PanelSeT SBM"

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

"Symmetrical DIN rail H35D7.5mm - Length 400mm for PanelSeT SBM"

Link copied

SKU
EAN
GTIN
MPN

"Symmetrical DIN rail H35D7.5mm - Length 400mm for PanelSeT SBM" by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Farnell, RS Components, City Electrical Factors and 1 more. It is currently in stock at all of them. Trade prices range from £4.92 to £9.62 excl. VAT. Voltimum+ members earn 1 point per unit.

Set of 10 symmetrical DIN rails for equipment to be used in PanelSeT SBM enclosures The rail is made from zinc coated 1mm steel The nominal width is 385mm and fixing centers width is 364mm The depth is 7,5mm The height is 35mm Net weight is 0,13kg

Loyalty points: 1

Price range: £ 4.92 - £ 9.62 Excl. VAT

Specifications

Model	DIN rail (top hat rail) 35/7.5 mm
Height	7.5 mm
Length	385 mm
Material	Steel
Punch shape	None
Material thickness	1 mm
Surface protection	Other
Drill hole distance centrically	364 mm

Documents

Declaration of Conformity (Sustainability)

NSYAMRD40357SB REACh Regulation
