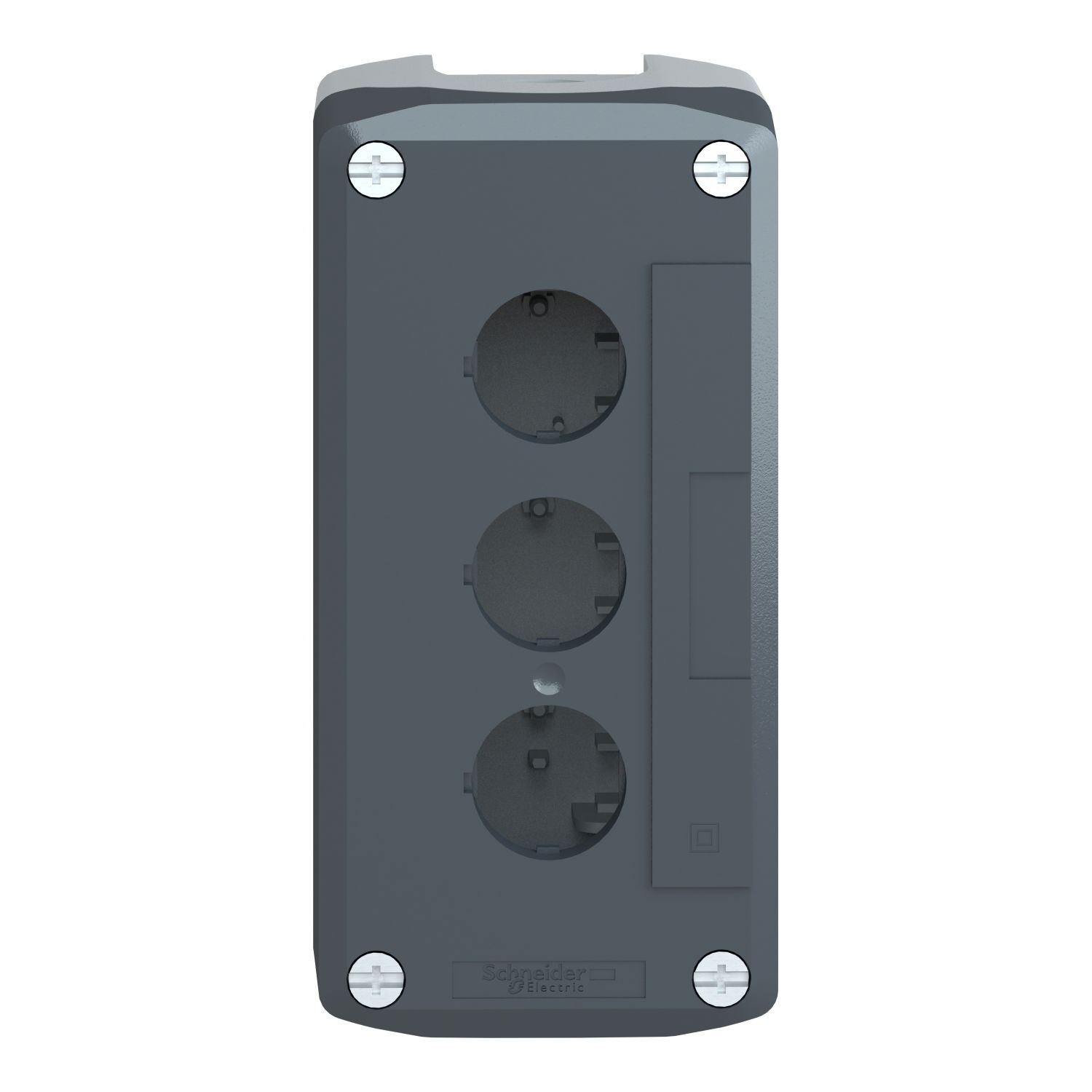

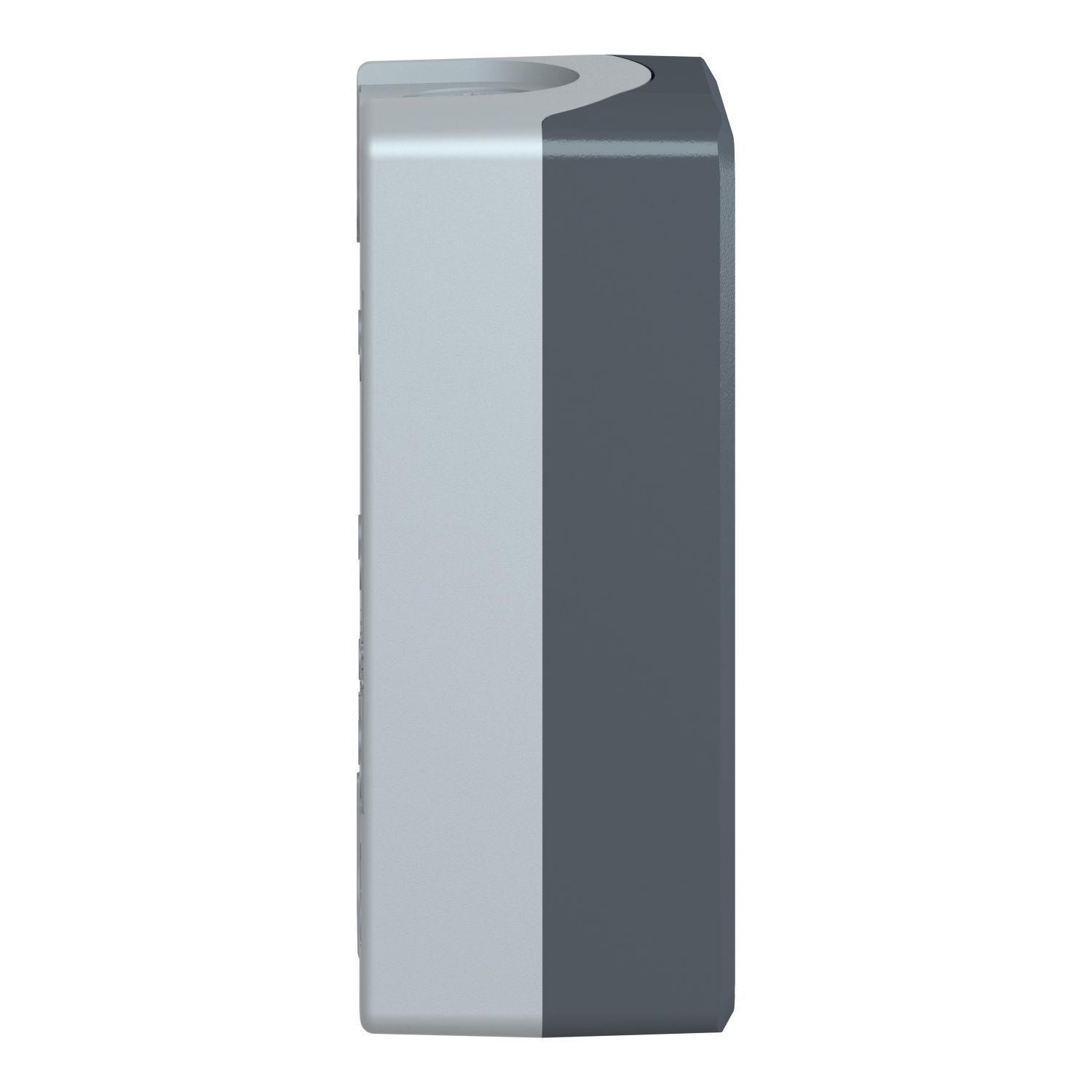

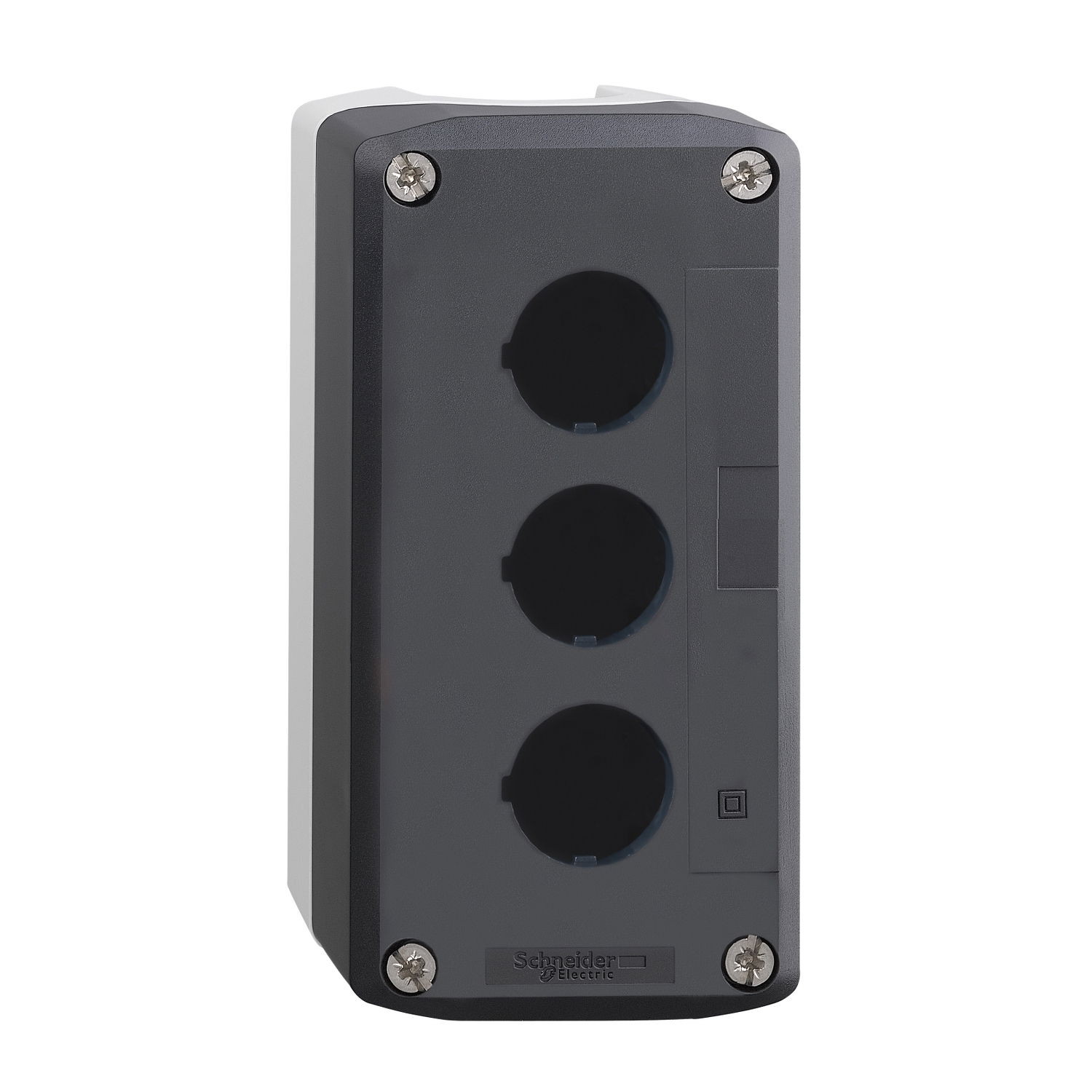

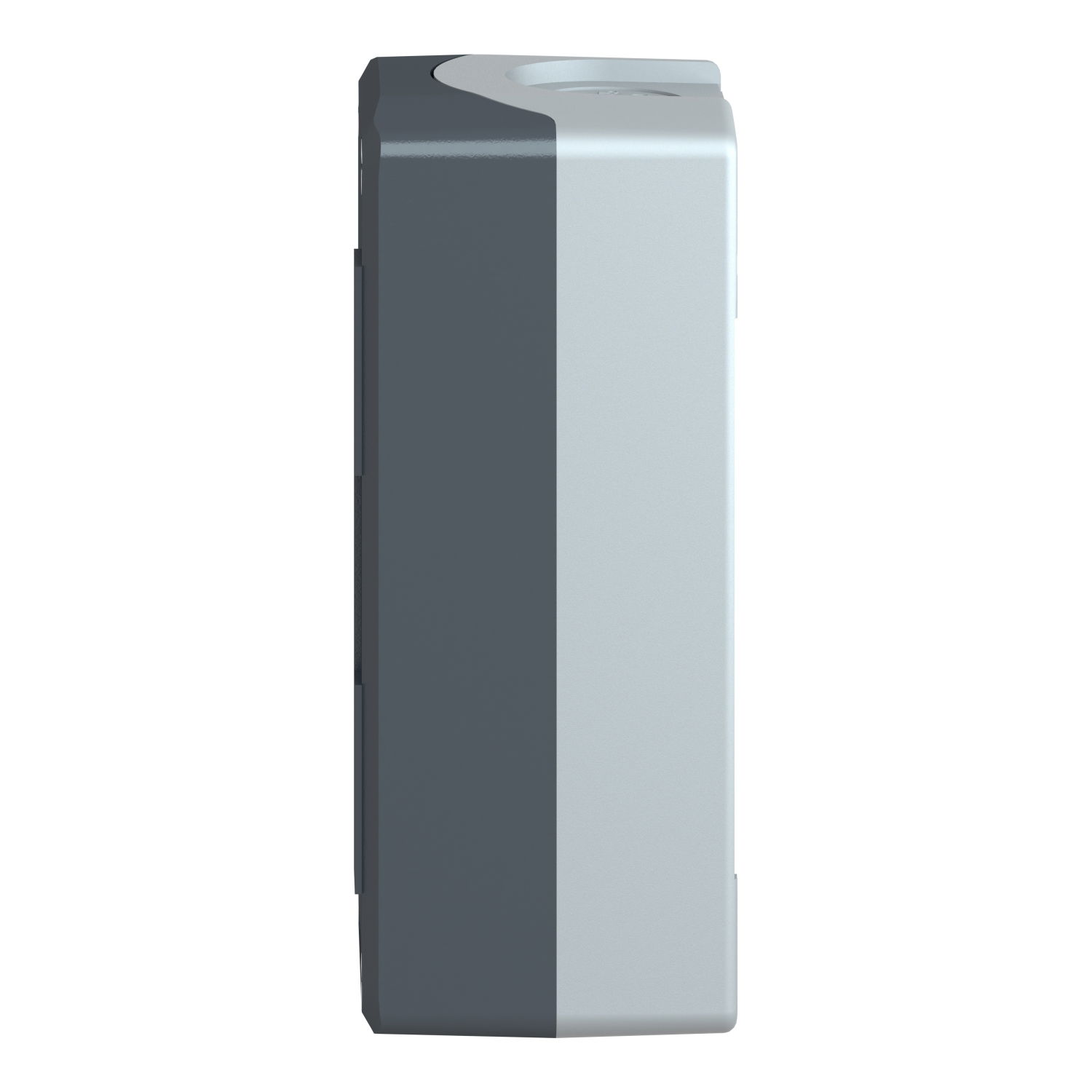

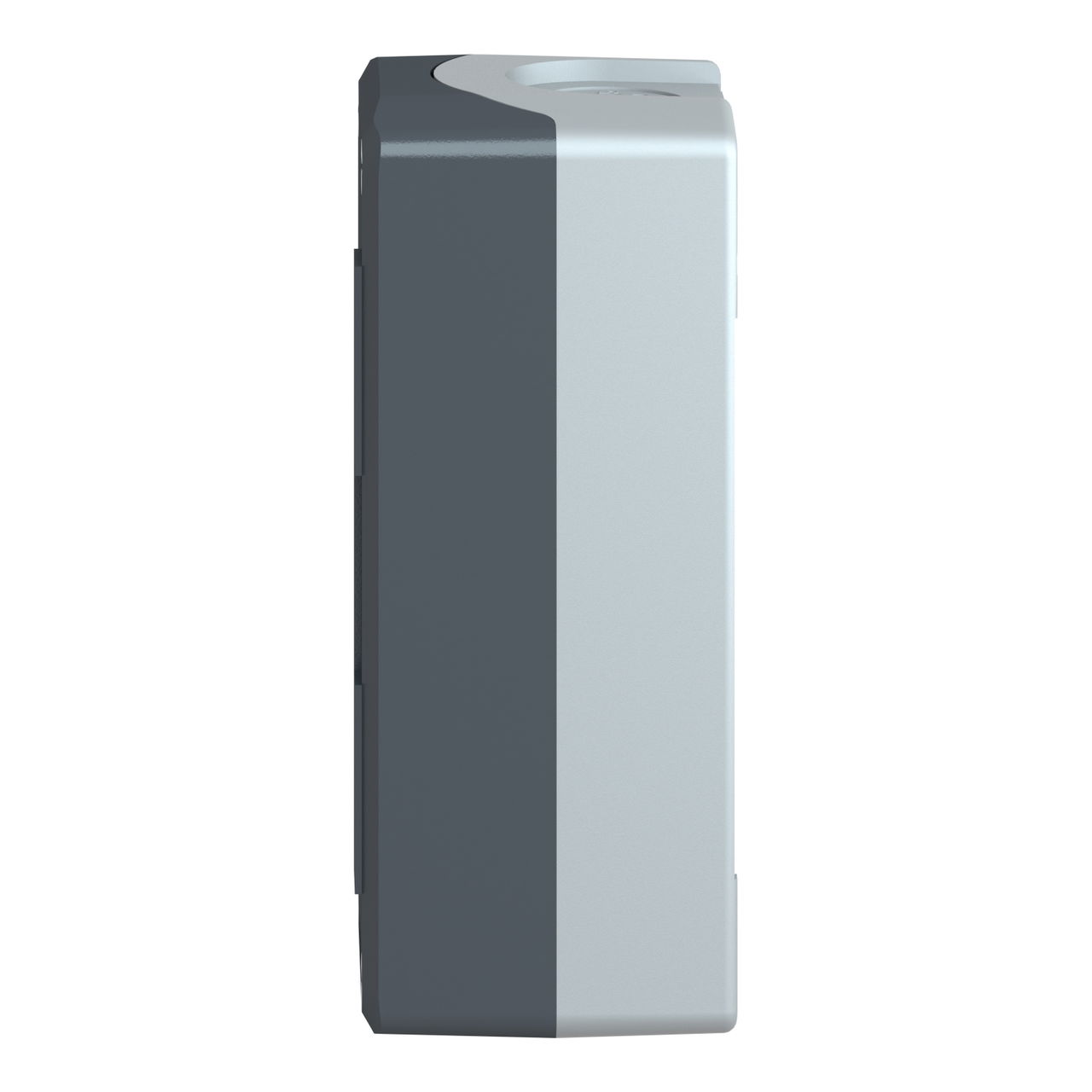

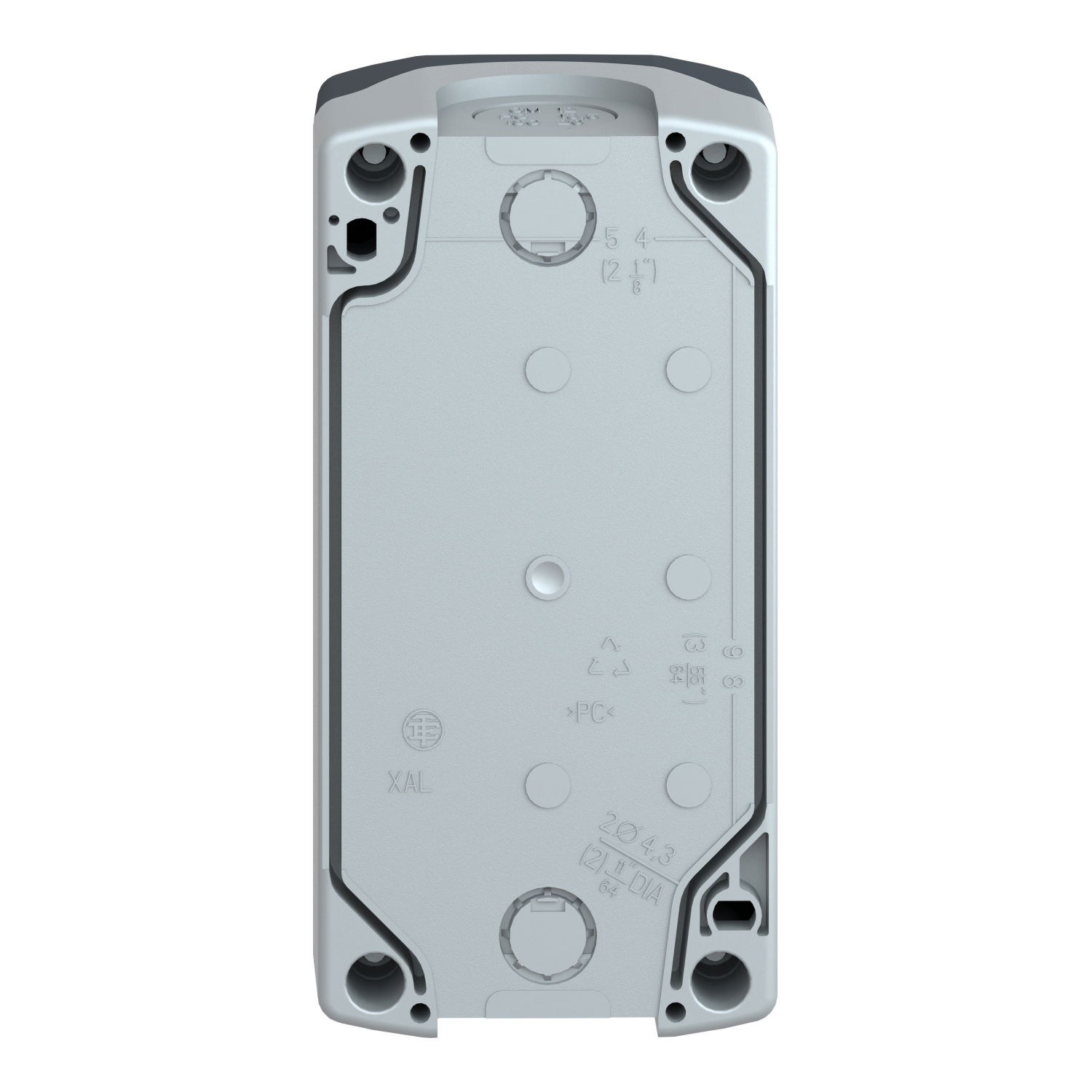

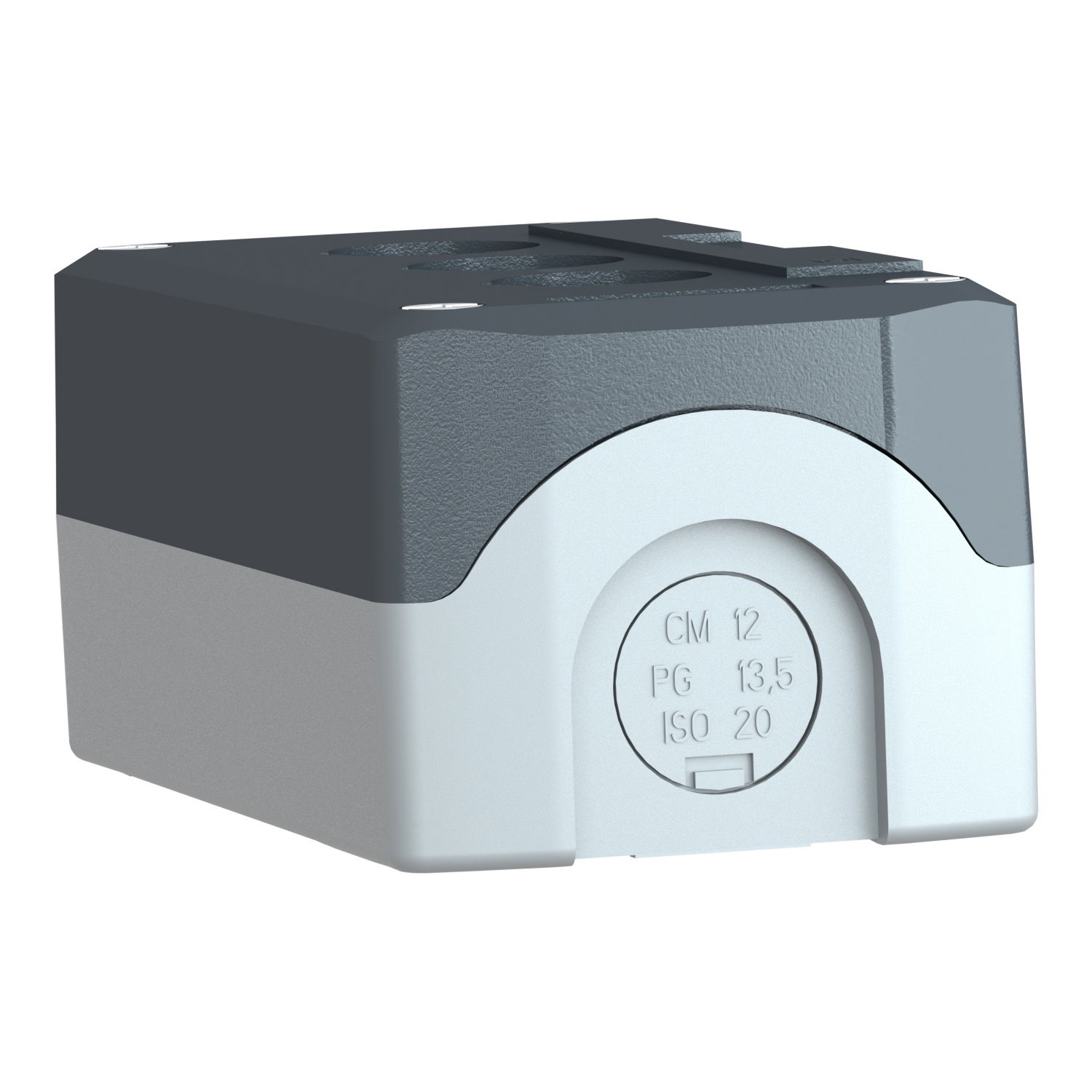

Dark grey empty enclosure lid with light grey base - 3 cut-outs
Dark grey empty enclosure lid with light grey base - 3 cut-outs
- SKU
- EAN
- GTIN
- MPN
Dark grey empty enclosure lid with light grey base - 3 cut-outs by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £16.25 to £26.08 excl. VAT. Voltimum+ members earn 3 points per unit.
Loyalty points:
3
Price range: £ 16.25 - £ 26.08 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 53 mm |
| Width | 68 mm |
| Height | 136 mm |
| Housing material | Plastic |
| Diameter openings | 22.5 mm |
| Colour housing cover | Grey |
| Housing material quality | ABS |
| Construction type housing | Surface mounted housing |
Documents
Declaration of Conformity (Sustainability)
XALD03 REACh Regulation
Instruction sheet
XALD / XALK - Empty control station, Instruction Sheet
Product data sheet
Catalog
Discover the Harmony XALD and XALK plastic control stations catalog
Declaration of Conformity (Sustainability)
XALD03 EU RoHS Directive
Declaration of conformity
XALD/K Control stations
Environmental Disclosure
Harmony XAL Control Stations
Circularity Profile
Harmony XAL Control Stations
