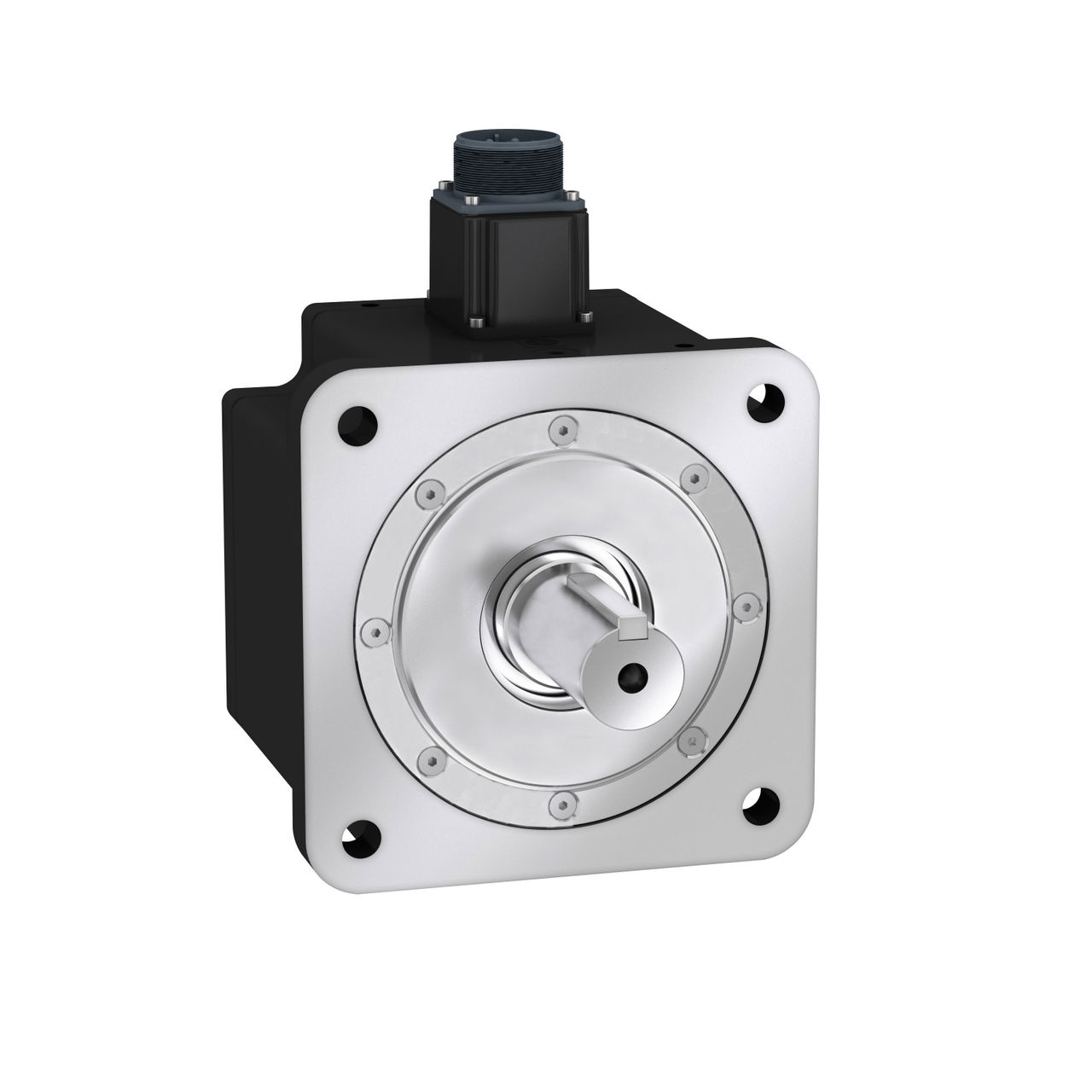

BCH2 motor 180mm 3000W with oil seal with key 20-bit MT enc. straight con.
Schneider Electric

BCH2 motor 180mm 3000W with oil seal with key 20-bit MT enc. straight con.

Product identifiers

SKU: BCH2MR3013MA6C
EAN: 3606485463568
GTIN: 3606485463568
MPN: BCH2MR3013MA6C

Voltimum+ Loyalty Programme Loyalty points: 199

Price: £ 1,194.00 Excl. VAT

Categories

Building Wire & Power Cables Electrical Cables & Wiring

Specifications

Model Rotary current synchronous motor
Bearing Ball bearing
Duty cycle Other
Power factor -
Voltage type AC/DC
Rated current 19.8 A
Rated voltage 220 V
Cooling method Other
Shaft end type Parallel key
Rated frequency
Number of phases 3
Overload capability yes
Intrinsic safety (IS) None
Starting torque ratio 0
Motor efficiency class Other
With anti-condensation no
Degree of protection (NEMA) -
Suitable for frequency control no
Insulation class according to IEC F
Rated performance at rated frequency 3 kW
Rated rotational speed at rated frequency 1500 1/min
With positive temperature coefficient resistor (PTC) no
