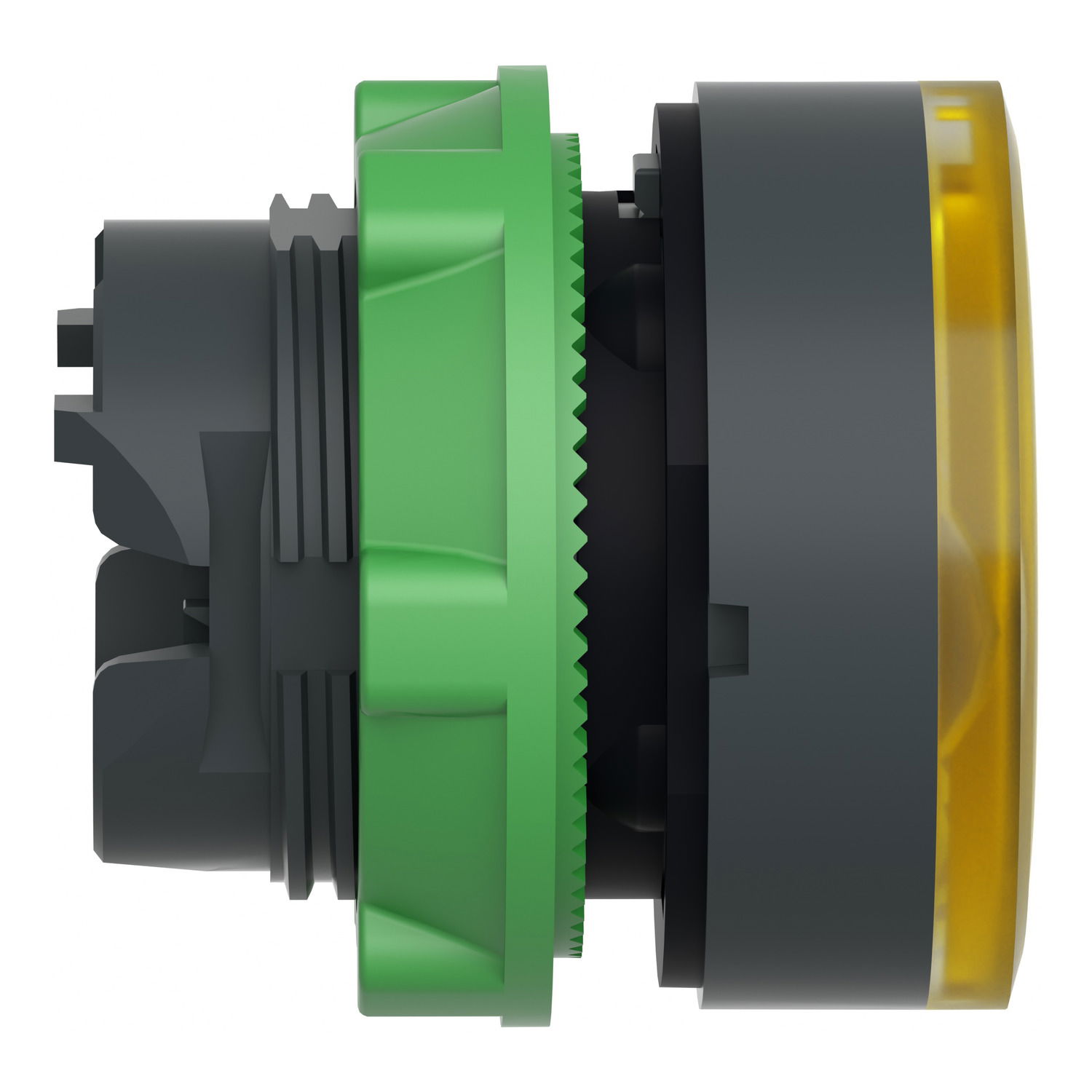

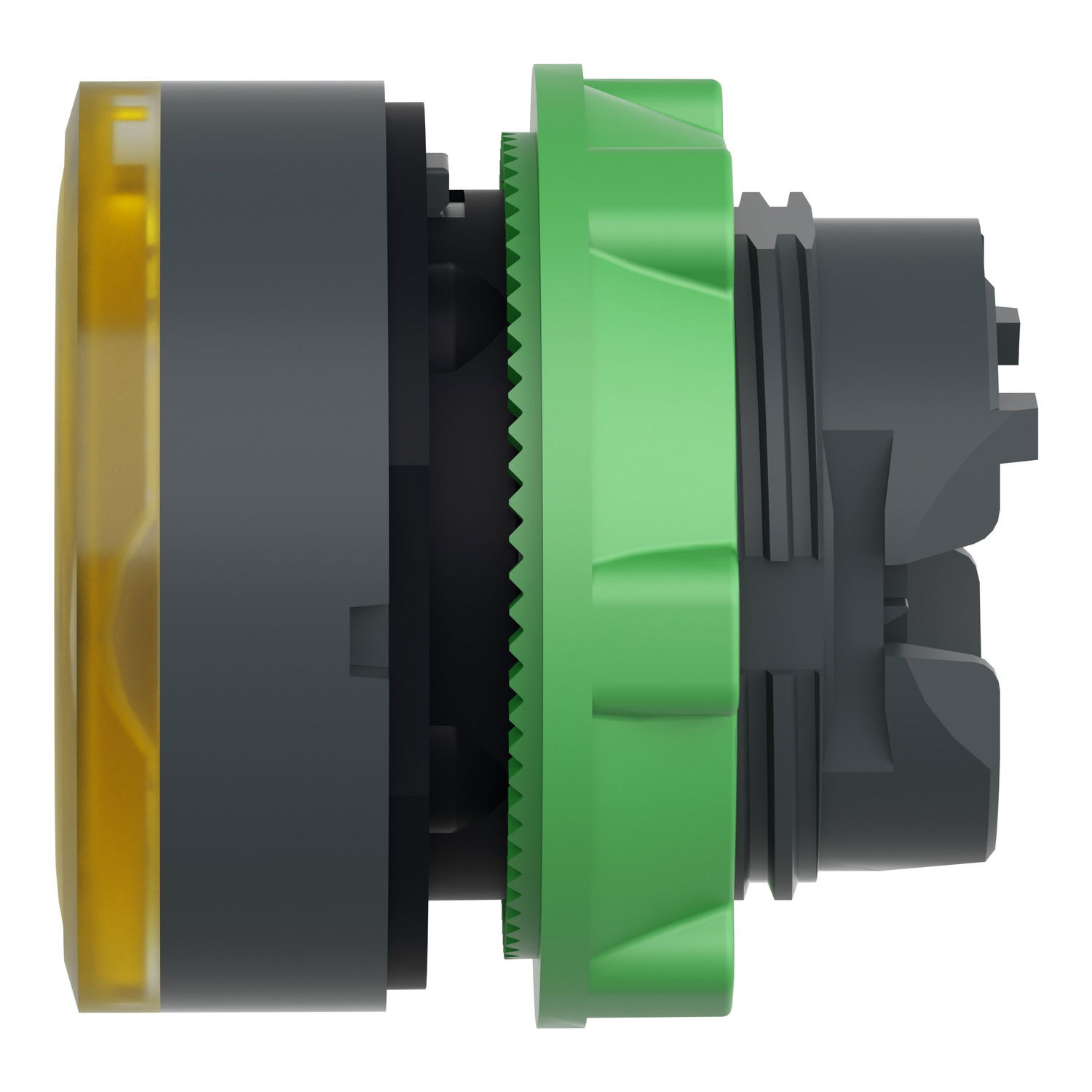

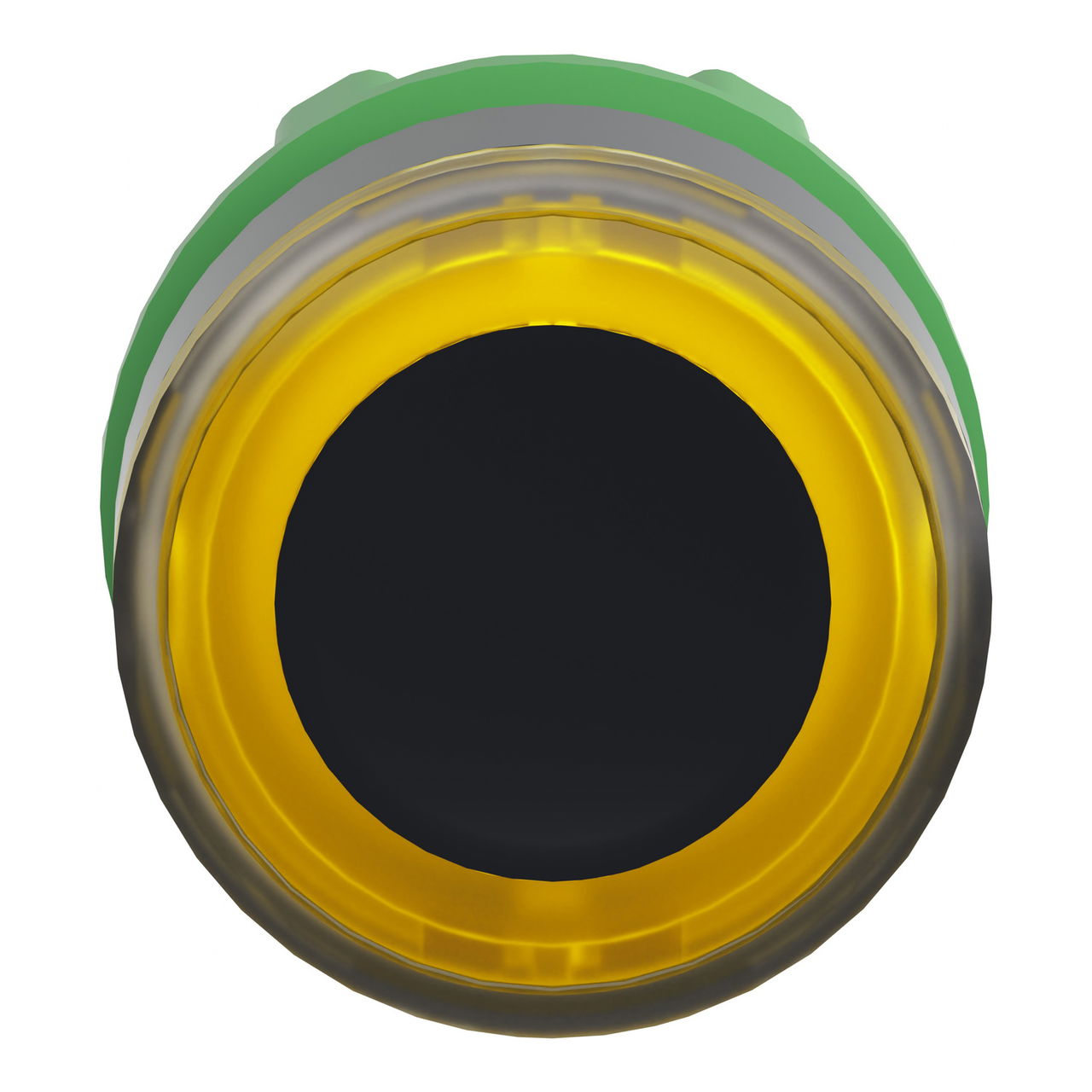

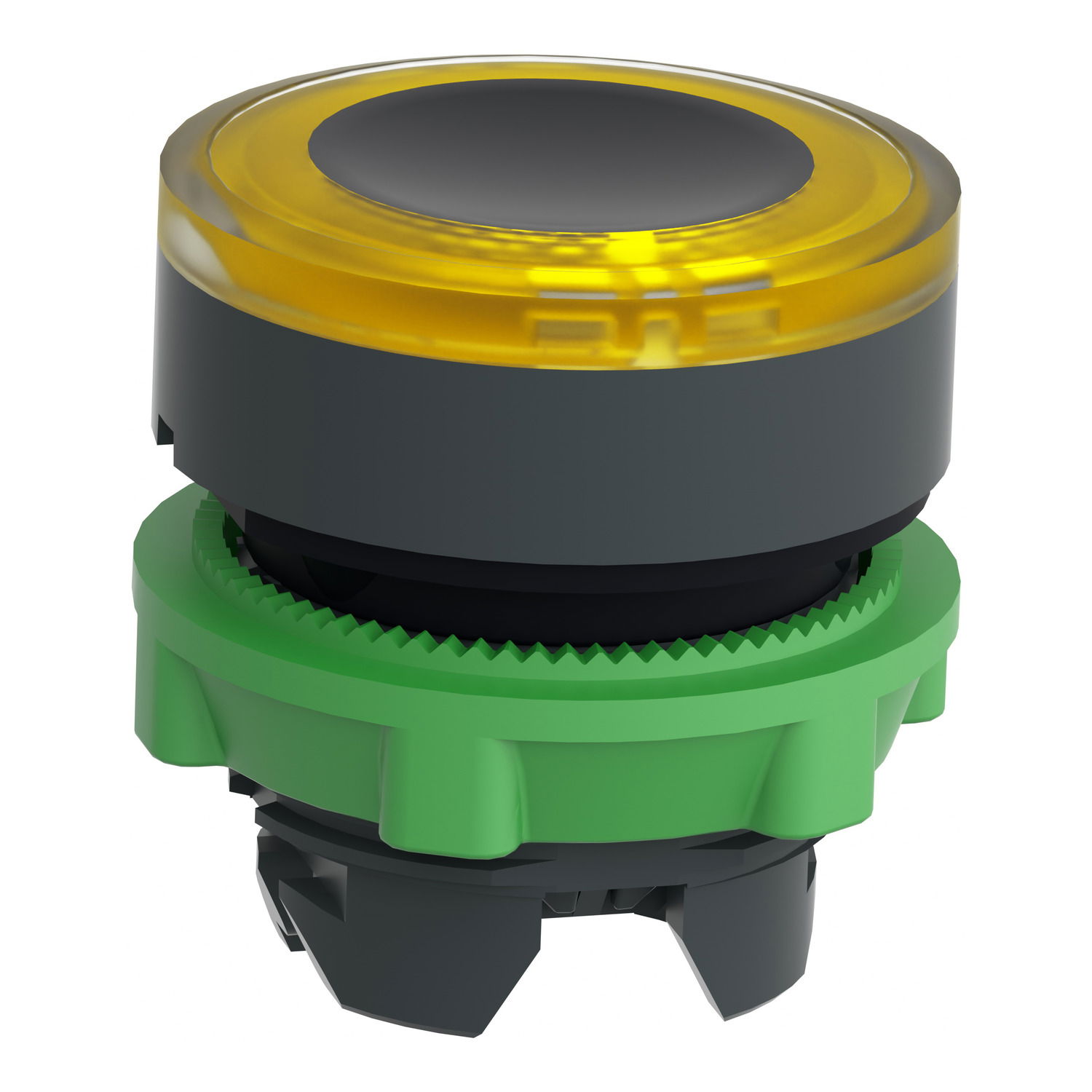

Head for illuminated push button, Harmony XB5, plastic, yellow flush, 22mm, universal LED, illuminated ring

Link copied
SKU
EAN
GTIN
MPN

Head for illuminated push button, Harmony XB5, plastic, yellow flush, 22mm, universal LED, illuminated ring by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £10.58 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XB5, plain lens yellow flush head with illuminated ring operates with a spring return / impulse mechanism. This button head with illuminated ring provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated ring and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 10.58 Excl. VAT

Specifications

Labelled no
Colour button Yellow
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
With protective cover no
Number of command positions 2
Degree of protection (IP), front side IP66

Documents

Declaration of Conformity (Sustainability)

ZB5AW983 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB5AW983 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

750 Series Hermetically Sealed Relay

Open

Circularity Profile

750 Series Hermetically Sealed Relay

Open
