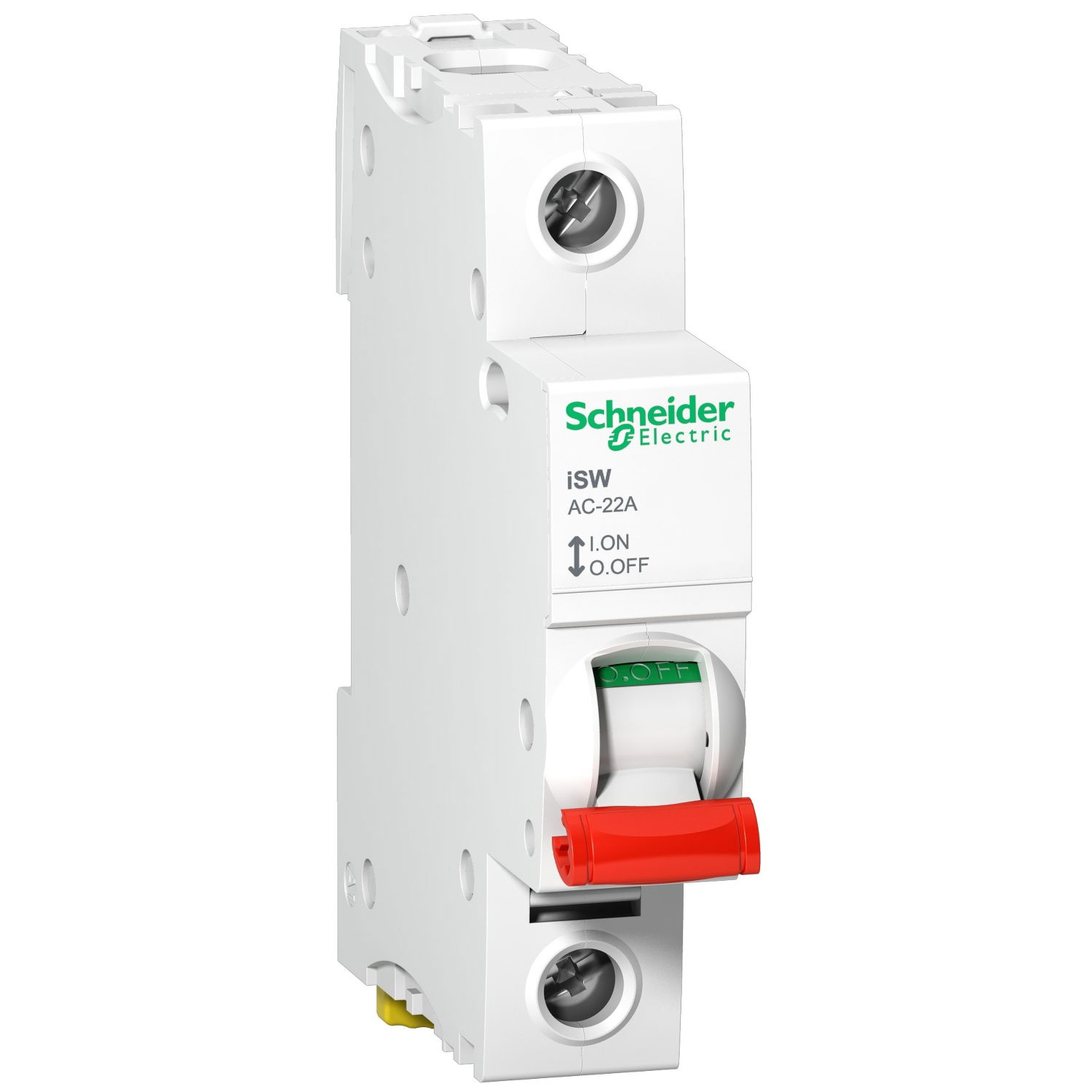

Switch disconnector iSW - 1P - 63 A - 240 V

Link copied
SKU
EAN
GTIN
MPN

Switch disconnector iSW - 1P - 63 A - 240 V by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 3 points per unit.

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 63A, and operating voltage is 240VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3, NZS 60947-3, AS 60947-3 and BS EN 60947-3.

Voltimum+ Loyalty Programme Loyalty points: 3

Price: £ 18.75 Excl. VAT

Specifications

EFDE0032 yes
Lamp type -
Lamp socket -
Voltage type AC
Rated current 63 A
Rated voltage 240 V
Built-in depth 75.5 mm
Colour calotte White
Number of poles 1
Imprint/indication Other
Switching function Off switch
Degree of protection (IP) IP20
Short-circuit breaking capacity (Icw) 1.26 kA
Number of contacts as normally open contact 1
