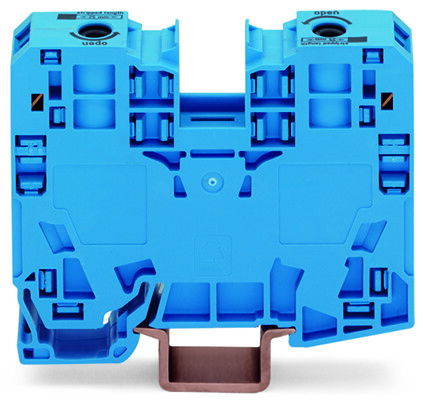

2-conductor through terminal block 35 mm² lateral marker slots blue

Name: 2-conductor through terminal block 35 mm² lateral marker slots blue
Brand: Wago
SKU: 285-134
Availability: InStock

2-conductor through terminal block; 35 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 35,00 mm²; blue

Product identifiers

SKU: 285-134

EAN: 4045454507398

GTIN: 4045454507398

MPN: 285-134

Price range: £ 5.98 - £ 8.16 Excl. VAT

Terminal blocks

Specifications

Depth	63
Width	16
Colour	Blue
Height	86
EFNA0008	V0
Rated voltage	1000
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	125
Operating temperature	105 - 105
Closing plate required	no
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	-
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Connectable conductor cross section solid-core	6 - 35
Connectable conductor cross section multi-wired	6 - 35
Connectable conductor cross section fine-strand with cable end sleeve	6 - 35
Connectable conductor cross section fine-strand without cable end sleeve	6 - 35
