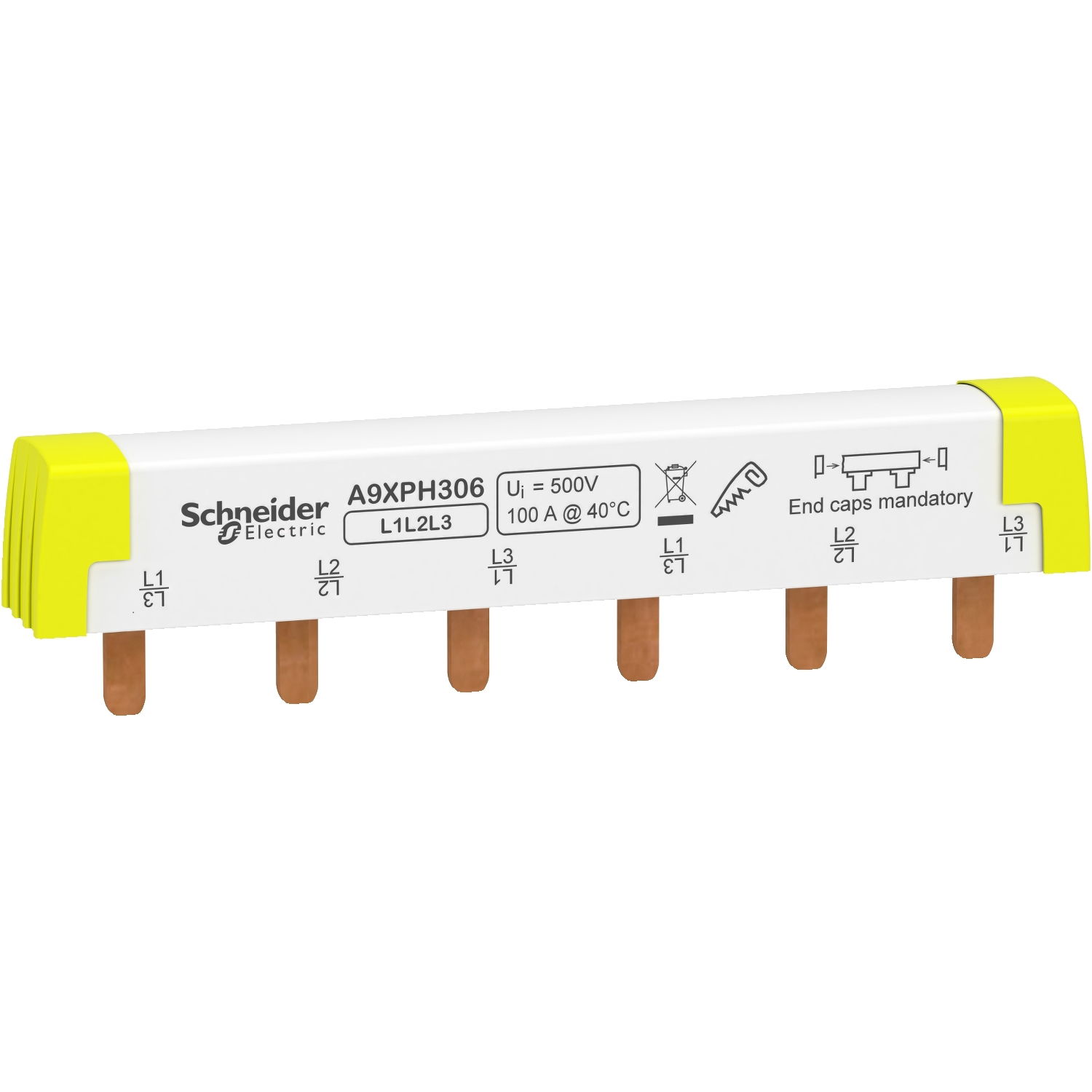

Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A

Link copied
SKU
EAN
GTIN
MPN

Acti9 - comb busbar - 3L - 18 mm pitch - 6 modules - 100A by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £35.77 to £36.13 excl. VAT. Voltimum+ members earn 4 points per unit.

Experience the efficient and safe power distribution with the Acti9 comb busbar, featuring a horizontal, insulated, cuttable design for customized installations. Dedicated to (Line) installations, the comb busbar ensures a reliable distribution type (L1, L2, L3). It has a width of 6 modules of 18mm, ensuring compatibility with various installations. Suitable for 2 devices of 3P, the comb busbar features a distance of 54mm between ways, ensuring optimal compatibility and efficiency. It is compatible with Acti9 devices such as iC60, iK60, iID, iID K, iSW, iSW-NA, and Multi9 C60. Its current rating is 100A at 40°C, and the rated operational voltage is 415VAC. The rated insulation voltage is 500VAC. Additionally, the pollution degree 3 ensures reliable performance in challenging environments. Its colour is white (RAL 9003). The resistance to flames and abnormal heat is rated at 960°C within 30 seconds, in accordance with IEC 60695-2-1 standard, ensuring superior safety and durability. This comb busbar complies with EN/IEC 61439-1 standard. The Acti9 protection range provides security and simplicity with devices easy to install as well as to dismount. Composed of robust and stylish products, they answer all the needs for efficiency and reliability.

Voltimum+ Loyalty Programme Loyalty points: 4

Price range: £ 35.77 - £ 36.13 Excl. VAT

Specifications

Colour White
Length 220 mm
Insulated yes
Module width 18 mm
Cross section -
Number of poles 3
Number of phases 3
Can be cut to size yes
Rated permanent current Iu 100 A
Suitable for number of devices 2
Width in number of modular spacings 6
Rated short-time withstand current lcw -
Suitable for devices with auxiliary switch no
