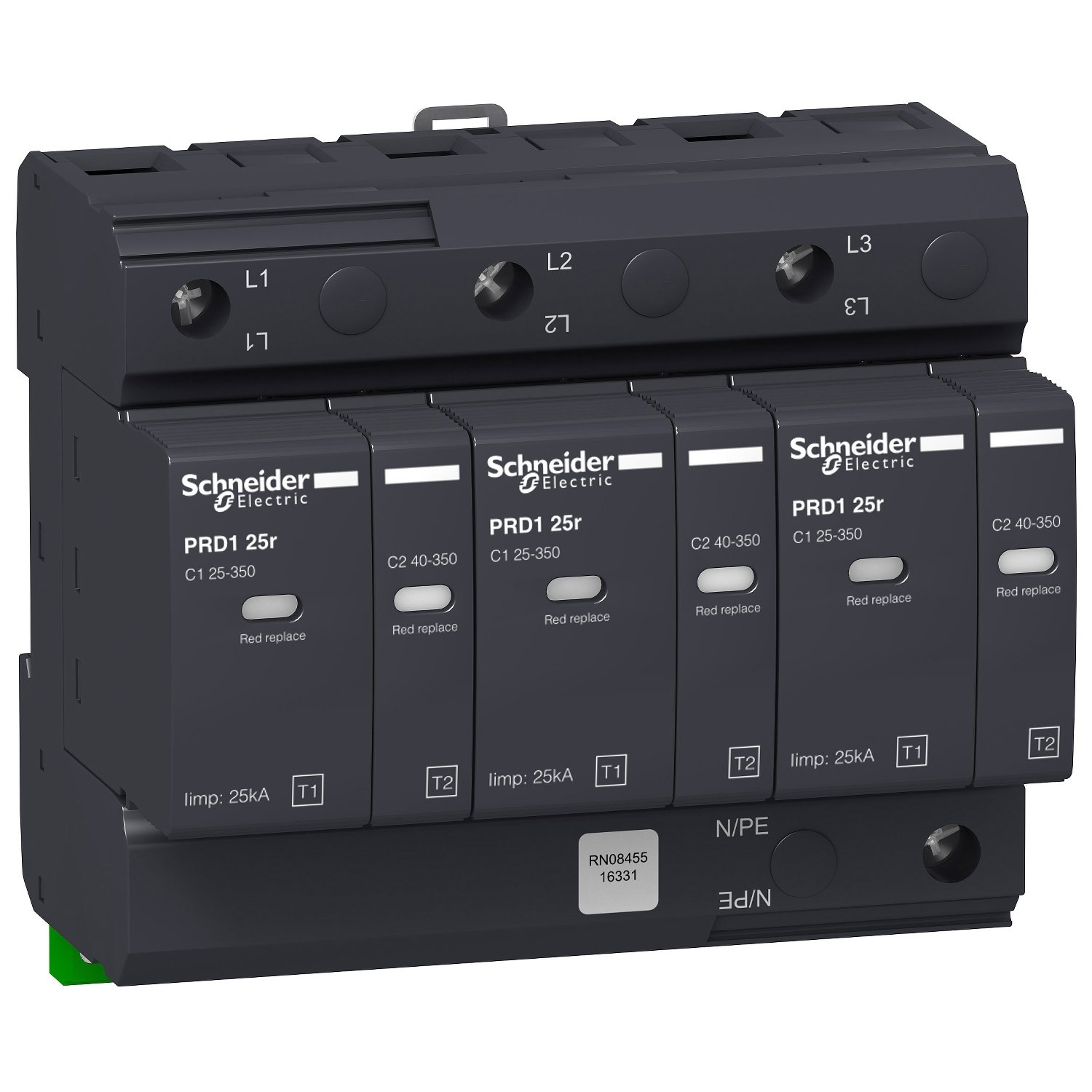

PRD1 25r modular surge arrester - 3 poles - 350V - with remote transfer
PRD1 25r modular surge arrester - 3 poles - 350V - with remote transfer
This Acti9 PRD1 is a modular surge arrester protecting 3P electrical installations against direct lightning strikes. The Imax maximum discharge current is 40kA .The In nominal discharge current is 25kA. The Type 1 surge arrester is recommended for electrical installations in the service sector and industrial buildings protected by a lightning conductor. It also provides type 2 protection and protect the electrical installation by finely clipping the lightning wave overvoltage. The surge arresters with "r" indication have remote transfer of the information "Cartridge to be replaced". The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is anthracite grey (RAL7016).The dimensions are (W) 108mm x (H) 90mm x (D) 71mm. The weight is 1.010kg. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.
Product identifiers
SKU: 16331
EAN: 3606480060410
GTIN: 3606480060410
MPN: 16331
Loyalty points:
1
Price: £ 2,721.00 Excl. VAT
Categories
ETIM group
Specifications
| Test class | Type 1 + 2 |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 3 |
| Construction size | 6 modular spacing |
| Remote signalling | yes |
| Nominal voltage AC | 400 V |
| Nominal voltage DC | - |
Documents
Declaration of Conformity (Sustainability)
16331 REACh Regulation
User guide
EcoStruxure I/O Smart Link - User Guide
Instruction sheet
Surge arrester PRD1 25r (Type1+Type2) - Instruction Sheet
Product data sheet
Declaration of Conformity (Sustainability)
16331 EU RoHS Directive
Declaration of conformity
EU Declaration of Conformity Schneider Electric
CAD
CAD
