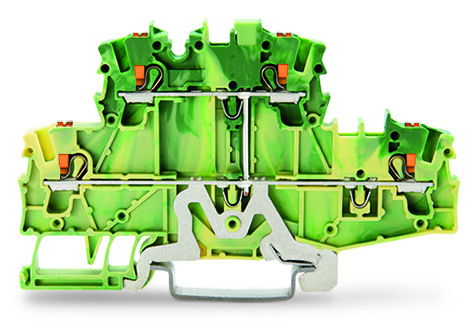

Double-deck terminal block 4-conductor ground terminal block with push-button green-yellow
Wago

Double-deck terminal block 4-conductor ground terminal block with push-button green-yellow

Double-deck terminal block; 4-conductor ground terminal block; with push-button; 2.5 mm²; PE; suitable for Ex e II applications; without marker carrier; internal commoning; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Product identifiers

SKU: 2202-2707
EAN: 4055143844482
GTIN: 4055143844482
MPN: 2202-2707

V+ Loyalty points:

9

Price range: £ 4.63 - £ 4.72 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 51.7
Width 5.2
Colour Green/yellow
Height 92.5
EFNA0008 V0
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 2
Operating temperature 105 - 105
Closing plate required yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 2
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 4
