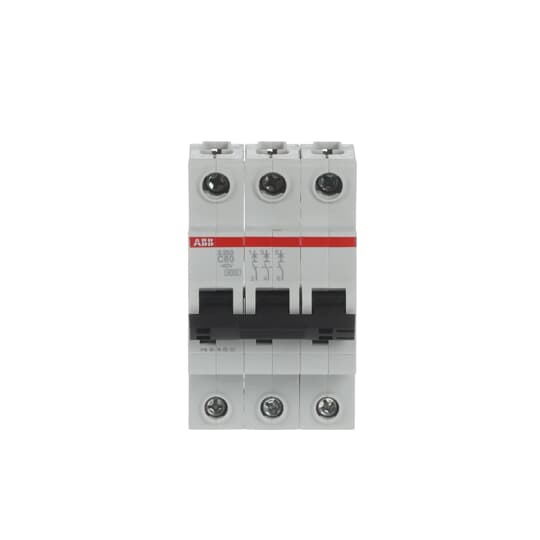

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA

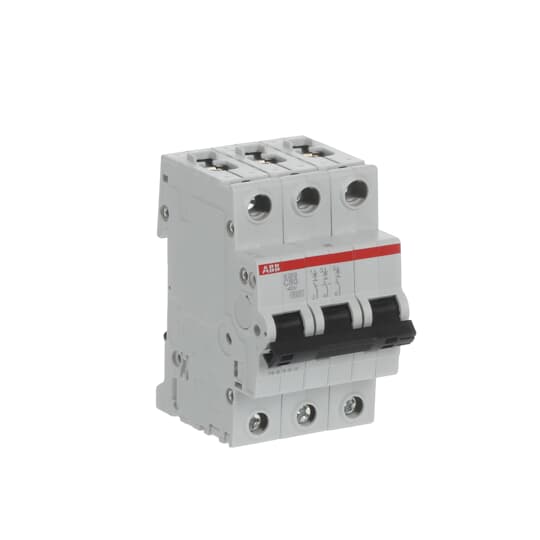

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA – Image 2 of 3

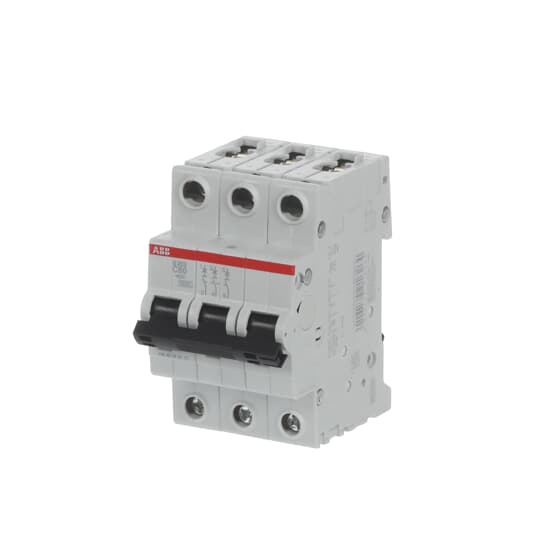

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA – Image 3 of 3

1 / 3

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA

Name: Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA
Brand: ABB
SKU: 2CDS253001R0804
Availability: InStock

Miniature Circuit Breaker - S200 80-100A - 3P - 80 A - C - (AC) 6 kA by ABB is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £145.89 to £202.62 excl. VAT. Voltimum+ members earn 89 points per unit.

S203-C80 Miniature Circuit Breake C-Char., 6kA, 80A, 3P

Product identifiers

SKU: 2CDS253001R0804

EAN: 4016779916264

GTIN: 4016779916264

MPN: S203-C80

Loyalty points: 89

Price range: £ 145.89 - £ 202.62 Excl. VAT

Specifications

Frequency
Power loss	39.2
Voltage type	AC
Rated current	80
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	C
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
