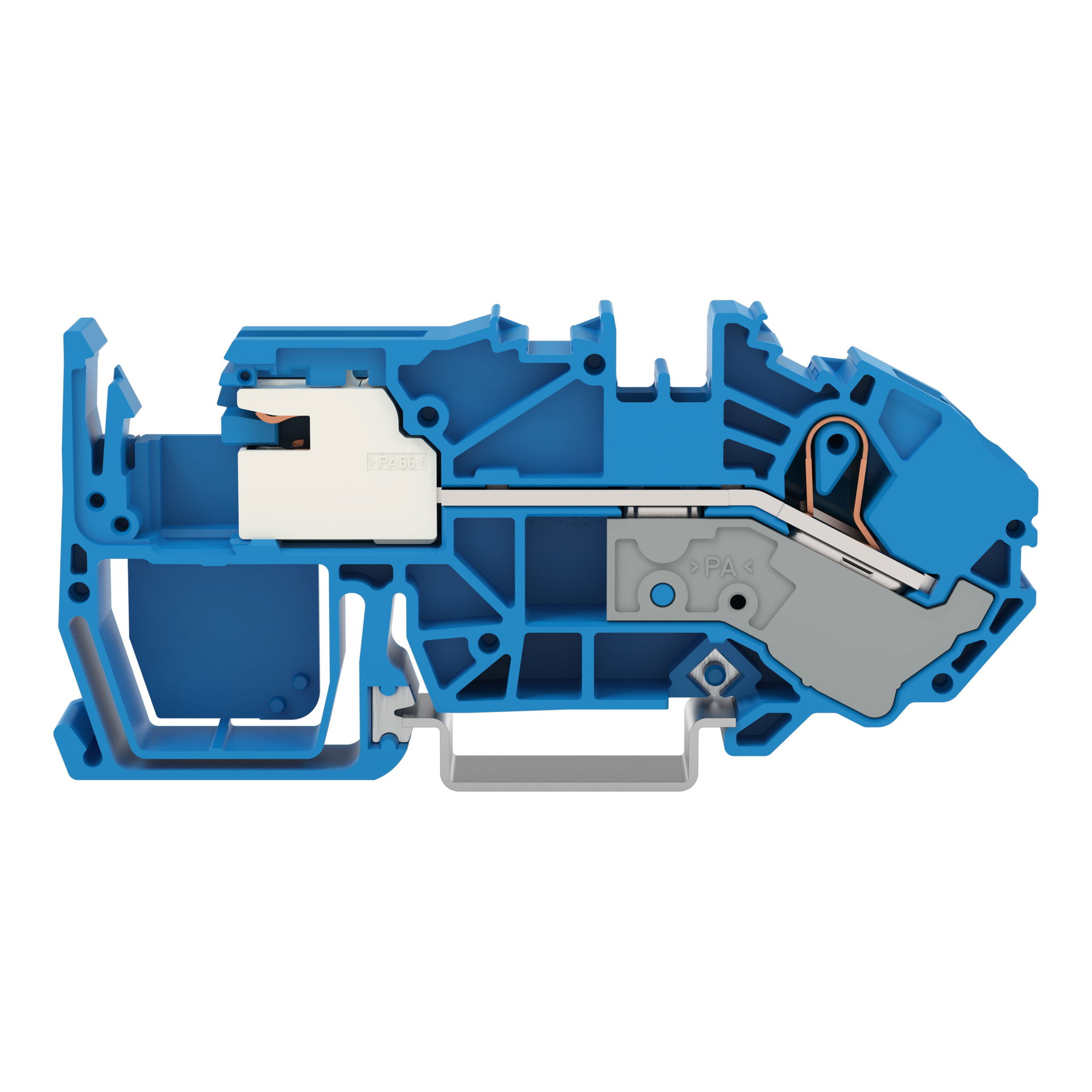

1-conductor N-disconnect terminal block 16 mm² Push-in CAGE CLAMP® blue

Name: 1-conductor N-disconnect terminal block 16 mm² Push-in CAGE CLAMP® blue
Brand: Wago
SKU: 2016-7714
Availability: InStock

1-conductor N-disconnect terminal block; 16 mm²; Push-in CAGE CLAMP®; 16,00 mm²; blue

Product identifiers

SKU: 2016-7714

EAN: 4045454685300

GTIN: 4045454685300

MPN: 2016-7714

Loyalty points: 2 (x20)

Price range: £ 3.02 - £ 3.99 Excl. VAT

Terminal blocks

Specifications

Depth	40.8
Width	12
Colour	Blue
Height	99.7
Rated voltage	250
Mounting method	DIN rail (top hat rail) 35 mm
Rated current In	76
Operating temperature	105 - 105
Suitable for N-busbar	3x10 mm
Material insulation body	Thermoplastic
Connecting plate required	yes
Number of clamp positions	1
Type of electric connection	Spring clamp connection
Connectable conductor cross section solid-core	2.5 - 16
Connectable conductor cross section multi-wired	0.5 - 16
Inflammability class of insulation material according to UL94	-
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 16
Connectable conductor cross section fine-strand without cable end sleeve	0.5 - 25
