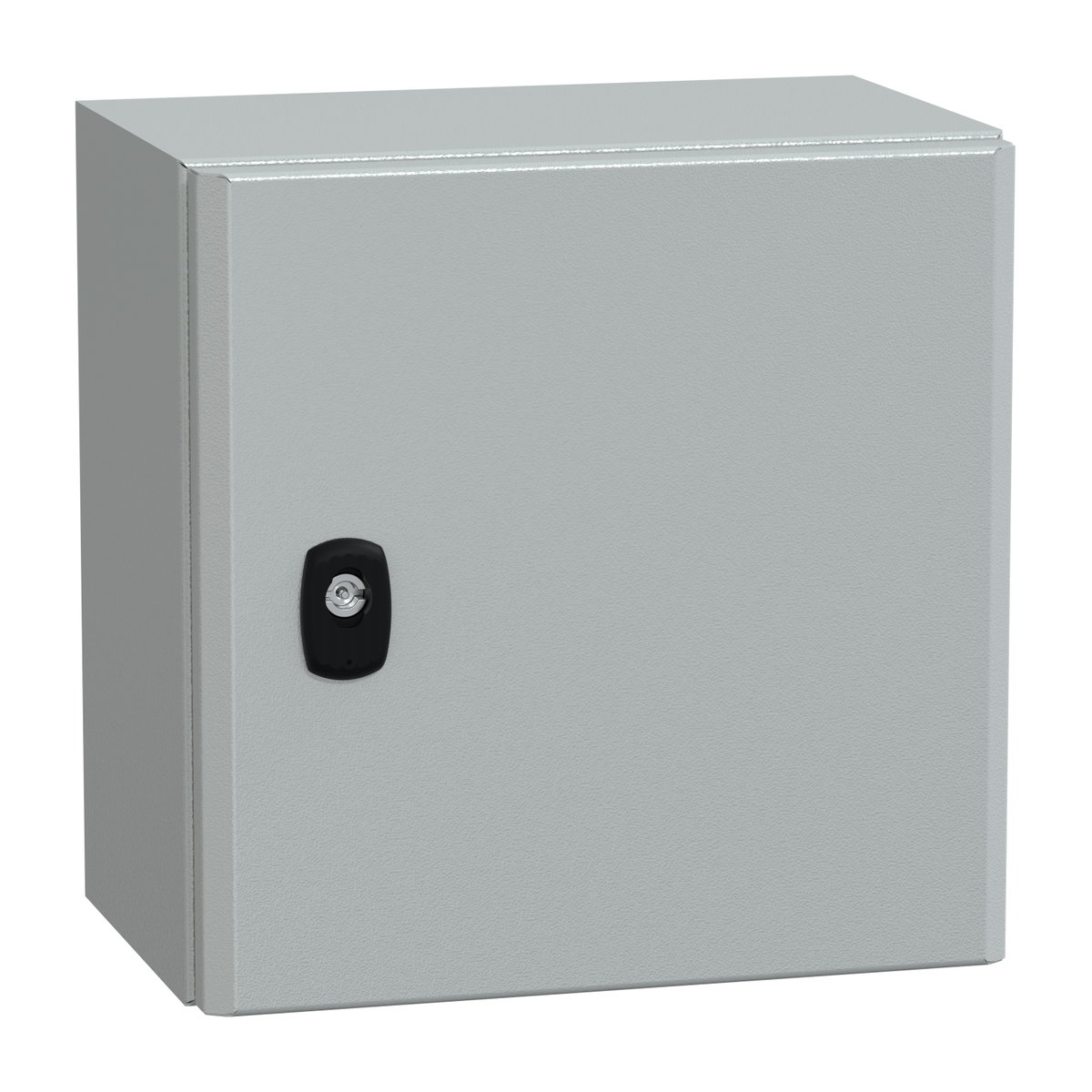

"Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 300x300x200mm, IP66, IK10"
PanelSeT S3D wall mounted steel enclosure with plain door. 300 x 300 x 200 mm. Single piece body, mounting plate included. 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
Product identifiers
SKU: NSYS3D3320P
EAN: 3606480159718
GTIN: 3606480159718
MPN: NSYS3D3320P
Loyalty points: 38
Price range: £ 70.66 - £ 89.21 Excl. VAT
Categories
Features
|
Depth
|
200 mm
|
|
Width
|
300 mm
|
|
Colour
|
Grey
|
|
Height
|
300 mm
|
|
Material
|
Steel
|
|
Couplable
|
FALSE
|
|
With door
|
TRUE
|
|
RAL-number
|
7035
|
|
With cover
|
FALSE
|
|
EMC-version
|
FALSE
|
|
Corner model
|
FALSE
|
|
Freestanding
|
FALSE
|
|
Pitched roof
|
FALSE
|
|
Pre-stamping
|
FALSE
|
|
Pole fastening
|
TRUE
|
|
With rear door
|
FALSE
|
|
Impact strength
|
IK10
|
|
Number of doors
|
1
|
|
Number of locks
|
1
|
|
Material quality
|
Other
|
|
With glazed door
|
FALSE
|
|
Surface finishing
|
Powder coating
|
|
Transparent cover
|
FALSE
|
|
With mounting plate
|
TRUE
|
|
Intermediate mounting
|
FALSE
|
|
With ventilation door
|
FALSE
|
|
Degree of protection (IP)
|
IP66
|
|
Floor standing wall model
|
FALSE
|
|
Number of connector holes
|
0
|
|
Suitable for wall built-in
|
FALSE
|
|
Suitable for wall mounting
|
TRUE
|
|
Degree of protection (NEMA)
|
4X
|
|
Suitable for outdoor set-up
|
FALSE
|
|
Suitable for metrical mounting
|
TRUE
|
|
Mounting plate depth-adjustable
|
FALSE
|
|
Max. permissible load of the door(s) according to IEC 62208
|
50 N
|
|
Max. permissible load of the enclosure according to IEC 62208
|
250 N
|
|
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
|
-
|
|
Max. permissible load of the mounting plate according to IEC 62208
|
250 N
|
