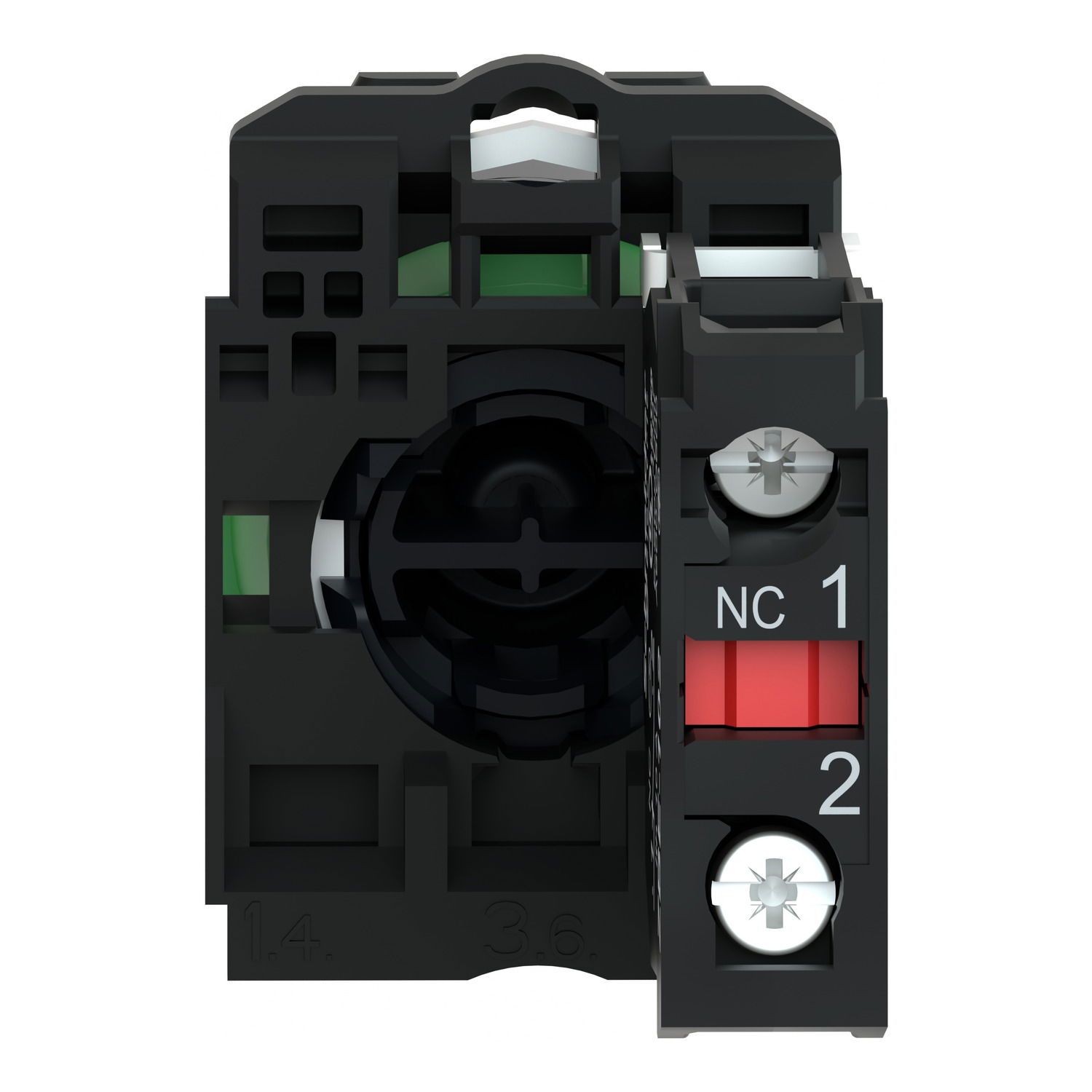

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO – Image 3 of 7

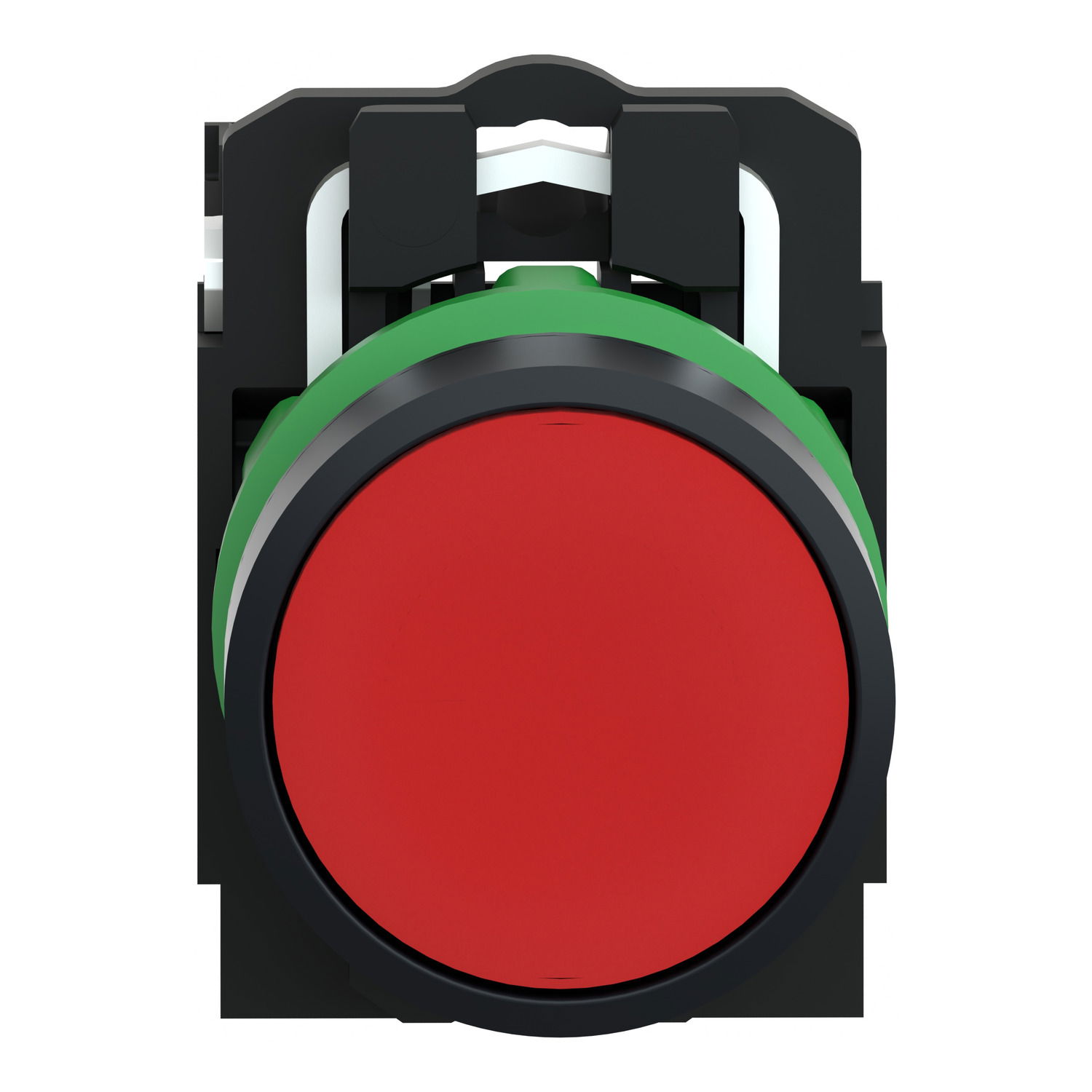

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO – Image 4 of 7

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO – Image 5 of 7

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO – Image 6 of 7

1 / 7

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO

Name: Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO
Brand: Schneider Electric
SKU: XB5AA42
Availability: InStock

Push button, plastic, flush, red, Ø22, spring return, unmarked, 1 NO by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £13.31 to £13.38 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Product identifiers

SKU: XB5AA42

EAN: 3389110903423

GTIN: 3389110903423

MPN: XB5AA42

Loyalty points: 2

Price range: £ 13.31 - £ 13.38 Excl. VAT

Specifications

Transparent	no
Colour button	Red
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Type of button	Flat
With front ring	yes
Colour front ring	Black
Material front ring	Plastic
Supply voltage lamp	-
Suitable for lighting	no
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Number of command positions	1
Switching function latching	no
Type of electric connection	Screw connection
Number of contacts as change-over contact	0
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	1
