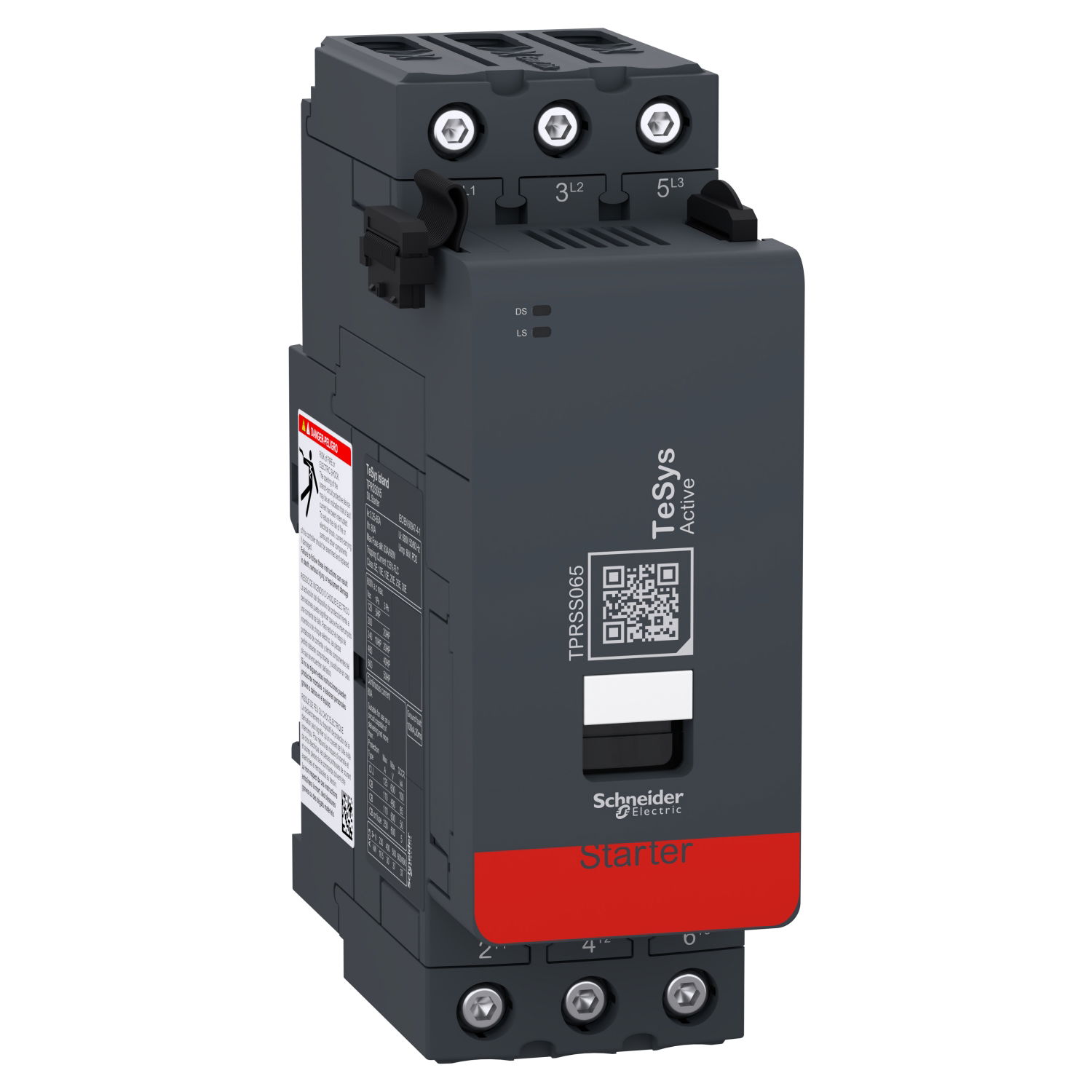

Direct online SIL starter, TeSys island, 80A AC-1, 65A AC-3, 30kW / 40hp
TeSys island direct SIL starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Product identifiers
SKU: TPRSS065
EAN: 3606489832827
GTIN: 3606489832827
MPN: TPRSS065
Loyalty points:
105
Price: £ 209.00 Excl. VAT
Categories
Features
|
Depth
|
125 mm
|
|
Width
|
55 mm
|
|
Height
|
167 mm
|
|
IO link master
|
no
|
|
Number of inputs
|
1
|
|
System accessory
|
yes
|
|
Supply voltage DC
|
|
|
With brake output
|
no
|
|
Radio standard GSM
|
no
|
|
Radio standard GPRS
|
no
|
|
Radio standard UMTS
|
no
|
|
Rack-assembly possible
|
no
|
|
Type of digital output
|
None
|
|
Type of output voltage
|
AC
|
|
With optical interface
|
no
|
|
Front built-in possible
|
no
|
|
Number of motor outlets
|
1
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Radio standard Bluetooth
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Permitted voltage at input
|
|
|
Radio standard WLAN 802.11
|
no
|
|
SIL according to IEC 61508
|
2
|
|
Suitable for rail mounting
|
yes
|
|
Degree of protection (NEMA)
|
-
|
|
Number of HW-interfaces USB
|
0
|
|
Permitted voltage at output
|
|
|
Supporting protocol for ASI
|
no
|
|
Supporting protocol for CAN
|
no
|
|
Supporting protocol for KNX
|
no
|
|
Supporting protocol for LON
|
no
|
|
Type of electric connection
|
Plug-in connection
|
|
Number of HW-interfaces other
|
2
|
|
Number of interfaces PROFINET
|
0
|
|
Suitable for safety functions
|
yes
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
no
|
|
With thermal motor protection
|
yes
|
|
Number of HW-interfaces RS-232
|
0
|
|
Number of HW-interfaces RS-422
|
0
|
|
Number of HW-interfaces RS-485
|
0
|
|
Supporting protocol for Modbus
|
no
|
|
Supporting protocol for SERCOS
|
no
|
|
Supporting protocol for TCP/IP
|
no
|
|
Supporting protocol for SUCONET
|
no
|
|
Type of voltage (input voltage)
|
AC
|
|
Number of HW-interfaces parallel
|
0
|
|
Number of HW-interfaces wireless
|
0
|
|
Supporting protocol for EtherCAT
|
no
|
|
Supporting protocol for INTERBUS
|
no
|
|
Supporting protocol for PROFIBUS
|
no
|
|
Appendant operation agent (Ex ia)
|
no
|
|
Appendant operation agent (Ex ib)
|
no
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
no
|
|
Supporting protocol for PROFIsafe
|
no
|
|
Explosion safety category for dust
|
None
|
|
Number of HW-interfaces serial TTY
|
0
|
|
Supporting protocol for EtherNet/IP
|
no
|
|
Supporting protocol for PROFINET IO
|
no
|
|
Supporting protocol for SafetyBUS p
|
no
|
|
Rated operation current of the motor
|
|
|
Supporting protocol for Data-Highway
|
no
|
|
Supporting protocol for PROFINET CBA
|
no
|
|
With motor current parameter setting
|
no
|
|
Supporting protocol for INTERBUS-Safety
|
no
|
|
Supporting protocol for DeviceNet Safety
|
no
|
|
Supporting protocol for other bus systems
|
yes
|
|
Certified for UL hazardous location class I
|
no
|
|
Number of HW-interfaces industrial Ethernet
|
0
|
|
Short-circuit protection, outputs available
|
no
|
|
Supporting protocol for Foundation Fieldbus
|
no
|
|
Certified for UL hazardous location class II
|
no
|
|
Certified for UL hazardous location class III
|
no
|
|
Performance level according to EN ISO 13849-1
|
Level d
|
|
Certified for UL hazardous location division 1
|
no
|
|
Certified for UL hazardous location division 2
|
no
|
|
Type of electrical connection at the motor output
|
Screw connection
|
|
Supporting protocol for AS-Interface Safety at Work
|
no
|
|
Certified for UL hazardous location group D (propane)
|
no
|
|
Certified for UL hazardous location group B (hydrogen)
|
no
|
|
Certified for UL hazardous location group C (ethylene)
|
no
|
|
Fieldbus connection over separate bus coupler possible
|
yes
|
|
Certified for UL hazardous location group A (acetylene)
|
no
|
|
Certified for UL hazardous location group E (metal dusts)
|
no
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
no
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
no
|
