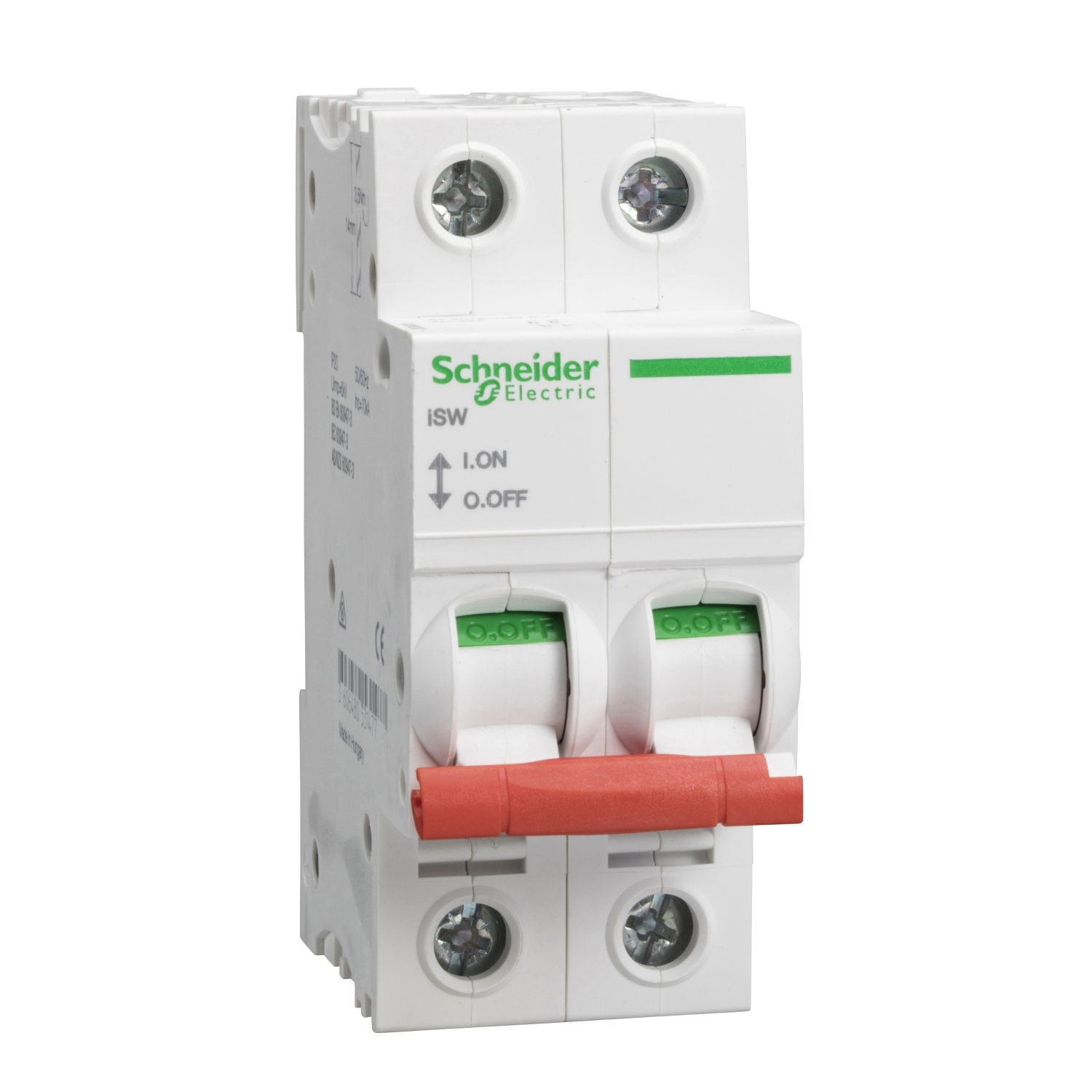

Switch disconnector 125A 2 Pole

Link copied
SKU
EAN
GTIN
MPN

Switch disconnector 125A 2 Pole by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 4 more. It is currently in stock at 5 of them. Trade prices range from £30.51 to £46.22 excl. VAT. Voltimum+ members earn 5 points per unit.

This Acti9 iSW product is a modular and reliable switch disconnector. It is a 2 poles switch disconnector with 125A rated operational current (le). The rated operational voltage (Ue) is up to 415VAC. This switch disconnector is used for control (opening and closing of circuits under load). This product is also used for disconnection of on-load electrical circuits already protected against overload and short-circuits. It is compatible with the use of a distribution board.

Voltimum+ Loyalty Programme Loyalty points: 5

Price range: £ 30.51 - £ 46.22 Excl. VAT

Categories

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM group

Low-voltage industrial components

Specifications

Depth -
Width -
Height -
Interlockable yes
Number of poles 2
Number of switches 2
Device construction Built-in device fixed built-in technique
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V -
Voltage release optional no
With pre-assembled cabling no
Suitable for floor mounting no
Max. rated operation voltage Ue AC 415 V
Suitable for front mounting centre yes
Width in number of modular spacings 0
Degree of protection (IP), front side IP55
Rated short-time withstand current lcw -
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V -
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0
