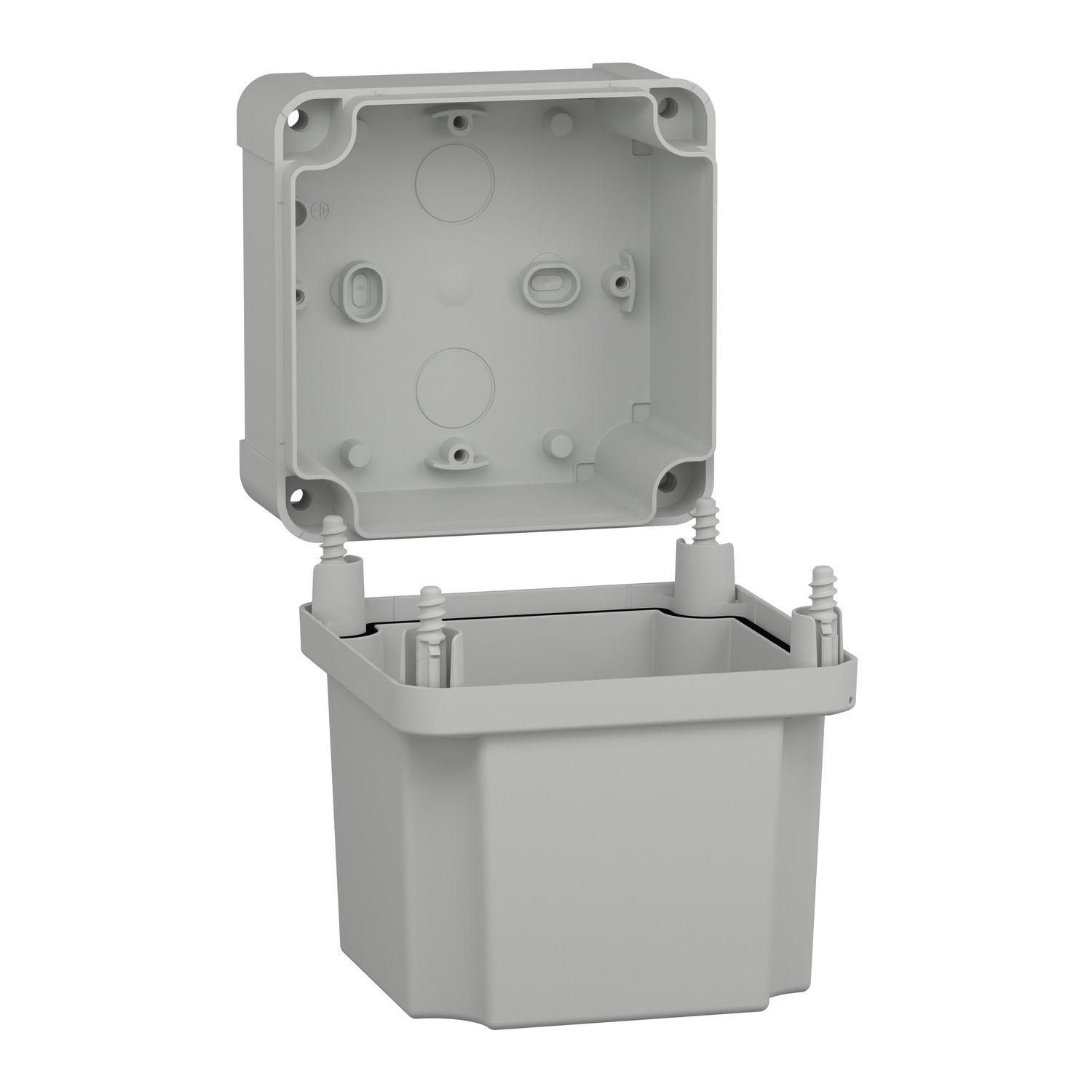

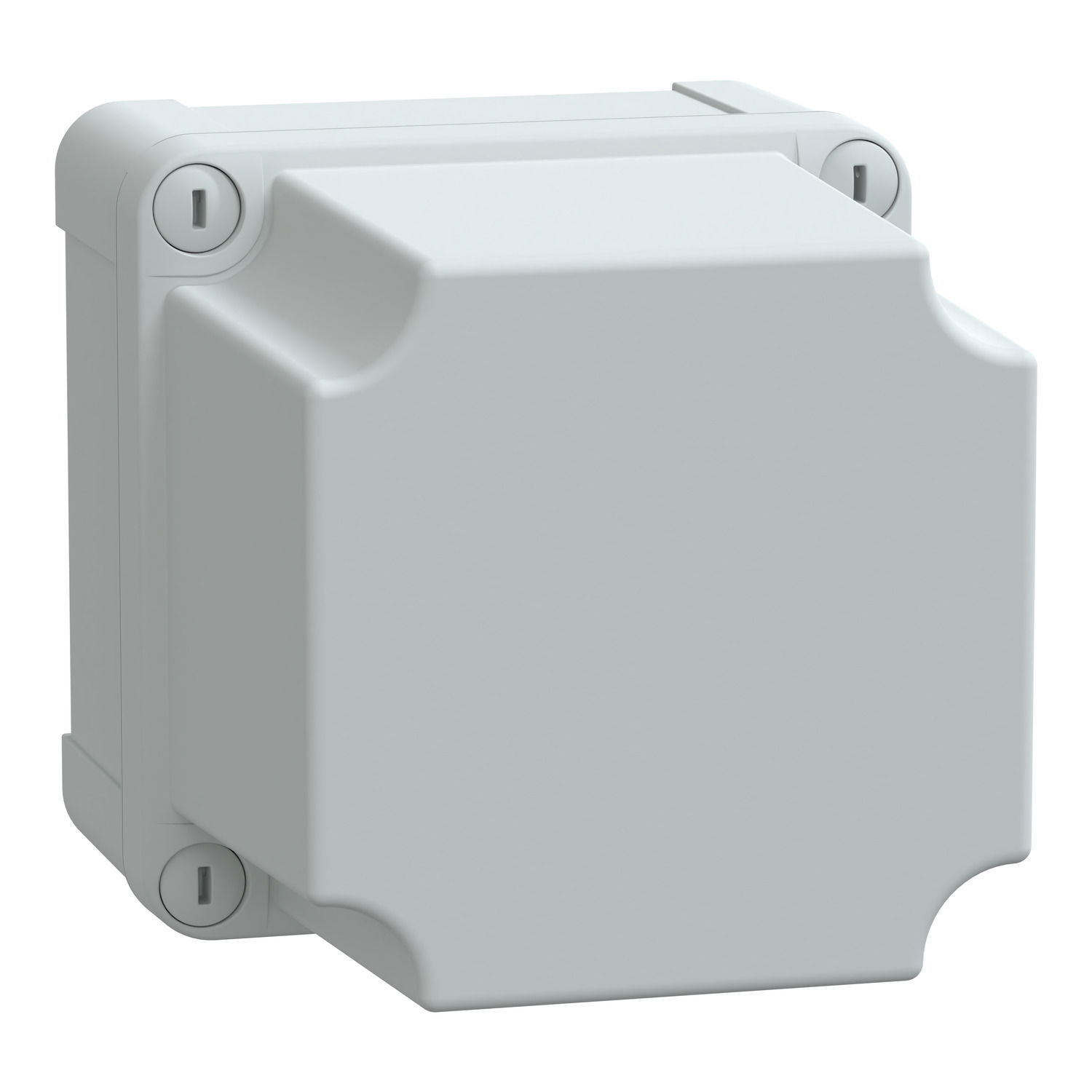

ABS box IP66 IK07 RAL7035 Int.H105W105D125 Ext.H116W116D133 Opaque cover H80

Link copied
SKU
EAN
GTIN
MPN

ABS box IP66 IK07 RAL7035 Int.H105W105D125 Ext.H116W116D133 Opaque cover H80 by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £8.84 to £13.41 excl. VAT. Voltimum+ members earn 1 point per unit.

PanelSeT TBS industrial ABS box with opaque cover H80. Int is 105 x 105 x 125 mm. Ext is 116 x 116 x 133 mm. Wall mounted enclosure. High plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 8.84 - £ 13.41 Excl. VAT

Specifications

Depth 133 mm
Width 116 mm
Colour Grey
Height 116 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 125 mm
Built-in depth -
Impact strength IK07
Housing material Plastic
Circuit integrity None
Extension possible no
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4
Material plate thickness cabinet 12.5 mm
Material plate thickness door/cover 12.5 mm
Number of openings for flange plates 0

Documents

Declaration of Conformity (Sustainability)

NSYTBS111113H REACh Regulation

Open

Instruction sheet

PanelSeT TBP TBS - Insulated Industrial Box - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYTBS111113H EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity NSYTBS and NSYTBP ranges

Open

Environmental Disclosure

PanelSeT TBS

Open
