Junction boxPilote IP56 300x220x120smooth

Link copied
SKU
EAN
GTIN
MPN

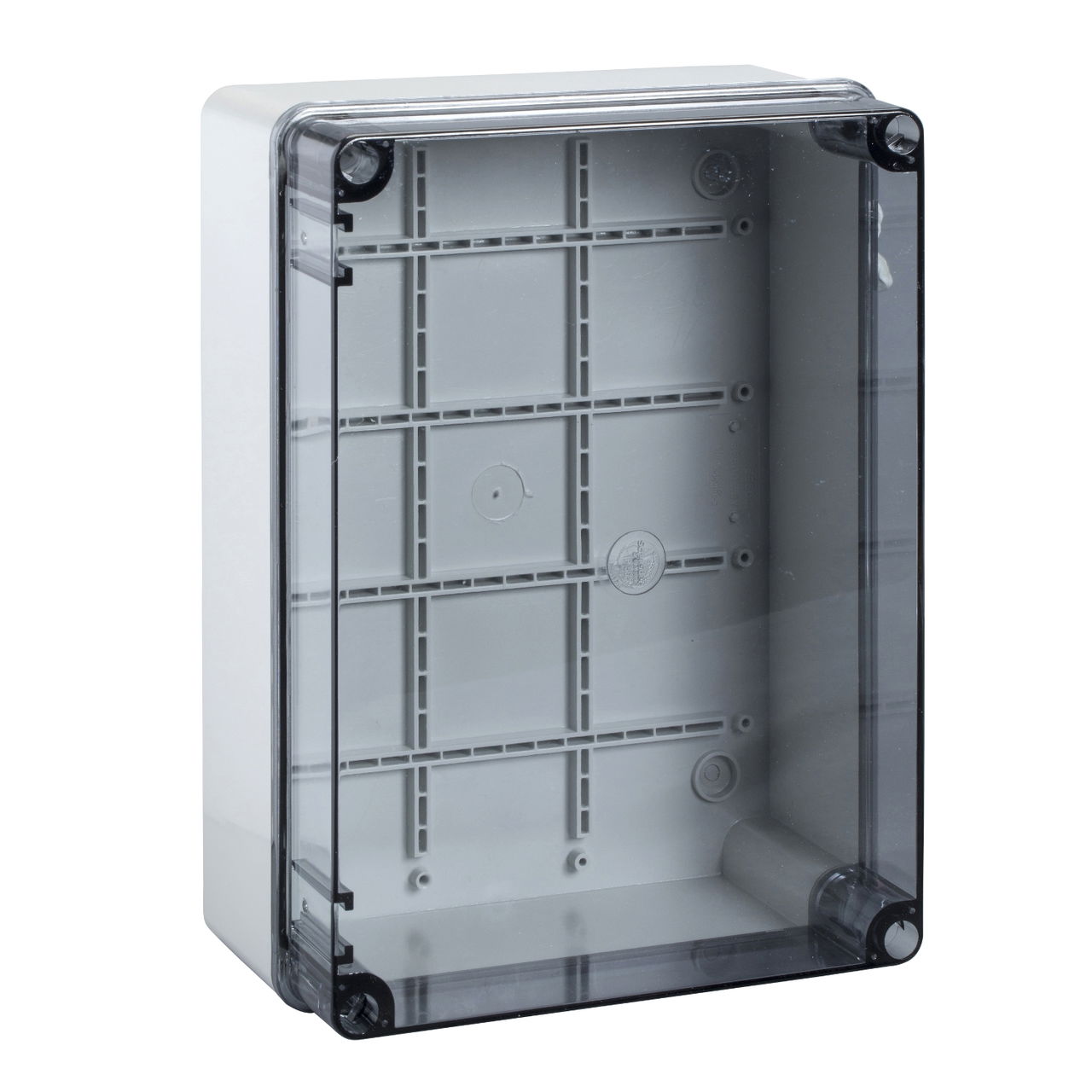

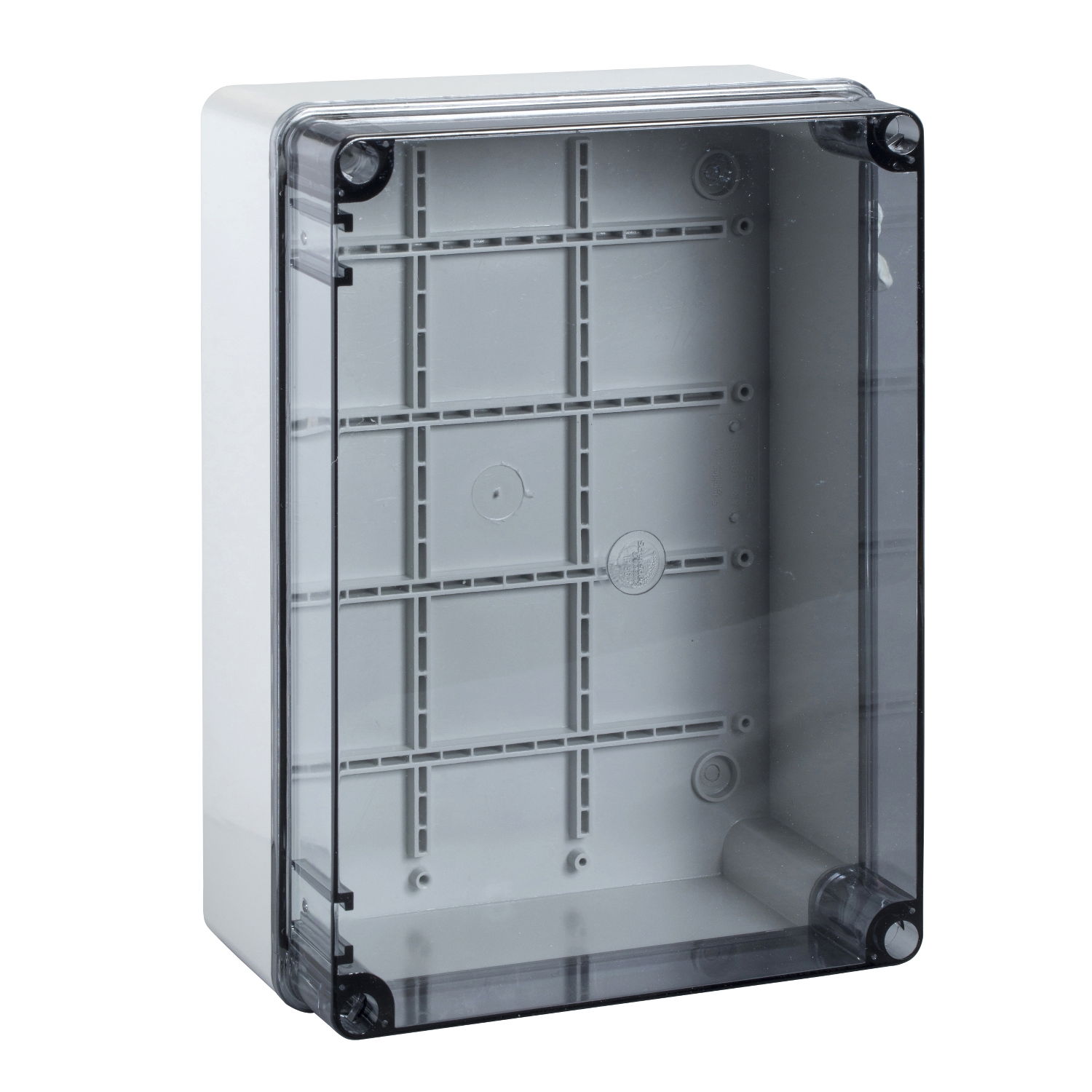

Pilote big size junction box safeguards cables from dust, moisture, and impact in challenging installations. It features smooth walls for cable entry, enabling clean, adaptable routing without predefined knockouts. It designed to be mounted in surface with 650°C fire resistance, providing reliable protection in high‑temperature environments. It features a metal‑secured cover to maintain stability and protect internal wiring. This device enables surface mounting. The dimensions are (W) 220mm x (H) 300mm x (D) 120mm. The color of this device is grey (RAL7035) with tranparent front cover. Its made of thermoplastic material. The Ambient air temperature for operation is from -15°C up to +60°C.The IP degree of protection is IP56 and IK degree of protection is IK08 that provides safe installations in rough environments. Pilote range delivers reliable performance with durable materials for tough installations. Provides user‑friendly installation and robust protection for modern electrical systems. This deive is IMQ product certification.

Voltimum+ Loyalty Programme Loyalty points: 7

Price: £ 44.00 Excl. VAT

Specifications

Depth 120 mm
Model Junction box
Shape Rectangular
Width 220 mm
Colour Grey
Length 300 mm
Castable -
Diameter -
Sealable no
Cover model -
Weatherproof yes
With screening no
Mounting method Wall-/ceiling mounting
For Ex-zone dust None
Circuit integrity None
Transparent cover yes
Inlet from the rear -
Mounting under water yes
Explosion-tested version no
Degree of protection (IP) IP56
Rated insulation voltage Ui -
Type of housing feed-through Pipe socket

Documents

Declaration of Conformity (Sustainability)

SL00959 REACh Regulation

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

SL00959 EU RoHS Directive

Open

Environmental Disclosure

Junction box - Pilote - IP56 - 190x140x70mm - Product Environmental Profile

Open
