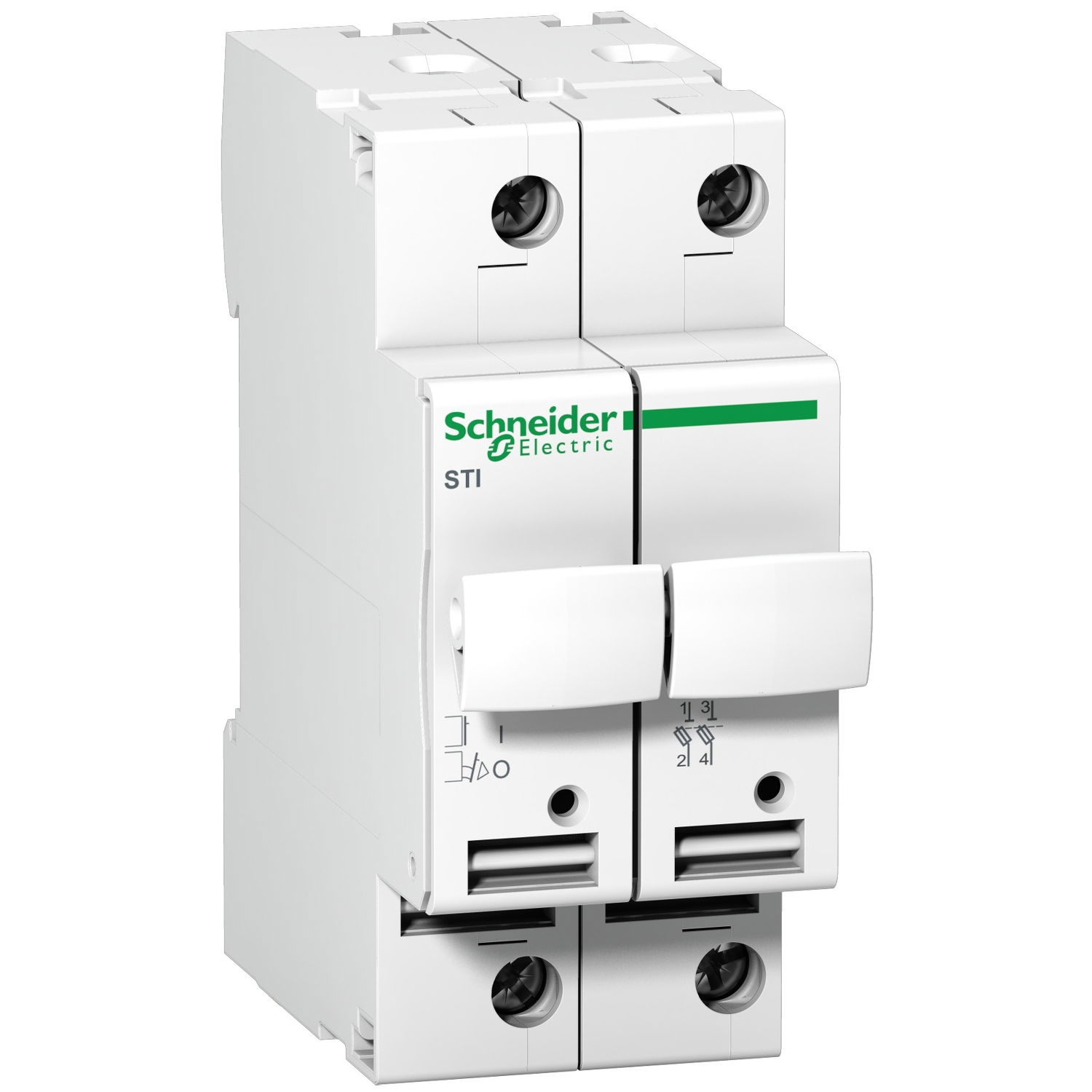

Acti9 - fuse-disconnector STI - 2 poles - 25 A - for fuse 10.3 x 38 mm

Link copied
SKU
EAN
GTIN
MPN

Acti9 - fuse-disconnector STI - 2 poles - 25 A - for fuse 10.3 x 38 mm by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £22.65 to £34.21 excl. VAT. Voltimum+ members earn 4 points per unit.

This Acti 9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 2P pole, up to 25A rated current, and gG or aM fuse curve with a fuse cartridge type of 10.3mm x 38mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.

Voltimum+ Loyalty Programme Loyalty points: 4

Price range: £ 22.65 - £ 34.21 Excl. VAT

Categories

Low Voltage Switchgear Switchgear Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Lockable yes
For fuse size 10x38 mm
Built-in depth 44 mm
Mounting method DIN rail
Nominal voltage 500 V
Number of poles 2
Degree of protection (IP) IP20
With optical defect indication yes
Concurrently switching neutral conductor yes
