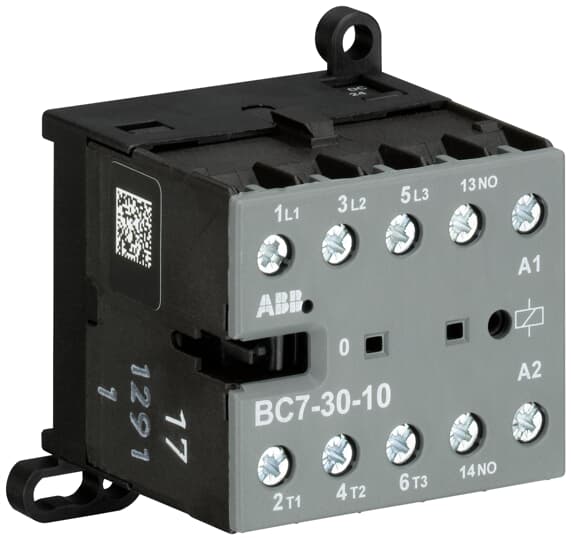

Mini Contactor BC7 24 V DC - 3 NO - 0 NC - Screw Terminals
ABB

Mini Contactor BC7 24 V DC - 3 NO - 0 NC - Screw Terminals

The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.

Product identifiers

SKU: GJL1313001R0101
EAN: 4013614150159
GTIN: 4013614150159
MPN: BC7-30-10-01

V+ Loyalty points:

25

Price range: £ 44.87 - £ 56.08 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

Specifications

Depth 46.7
Width 52.5
Height 57.5
Modular version no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA 2.2371
Voltage type for actuating DC
Rated operation power at AC-3, 400 V 5.5
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 20
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 3
Number of auxiliary contacts as normally open contact 1

Documents

Deeplink product page
Deeplink REACH
Dimensioned drawing
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
