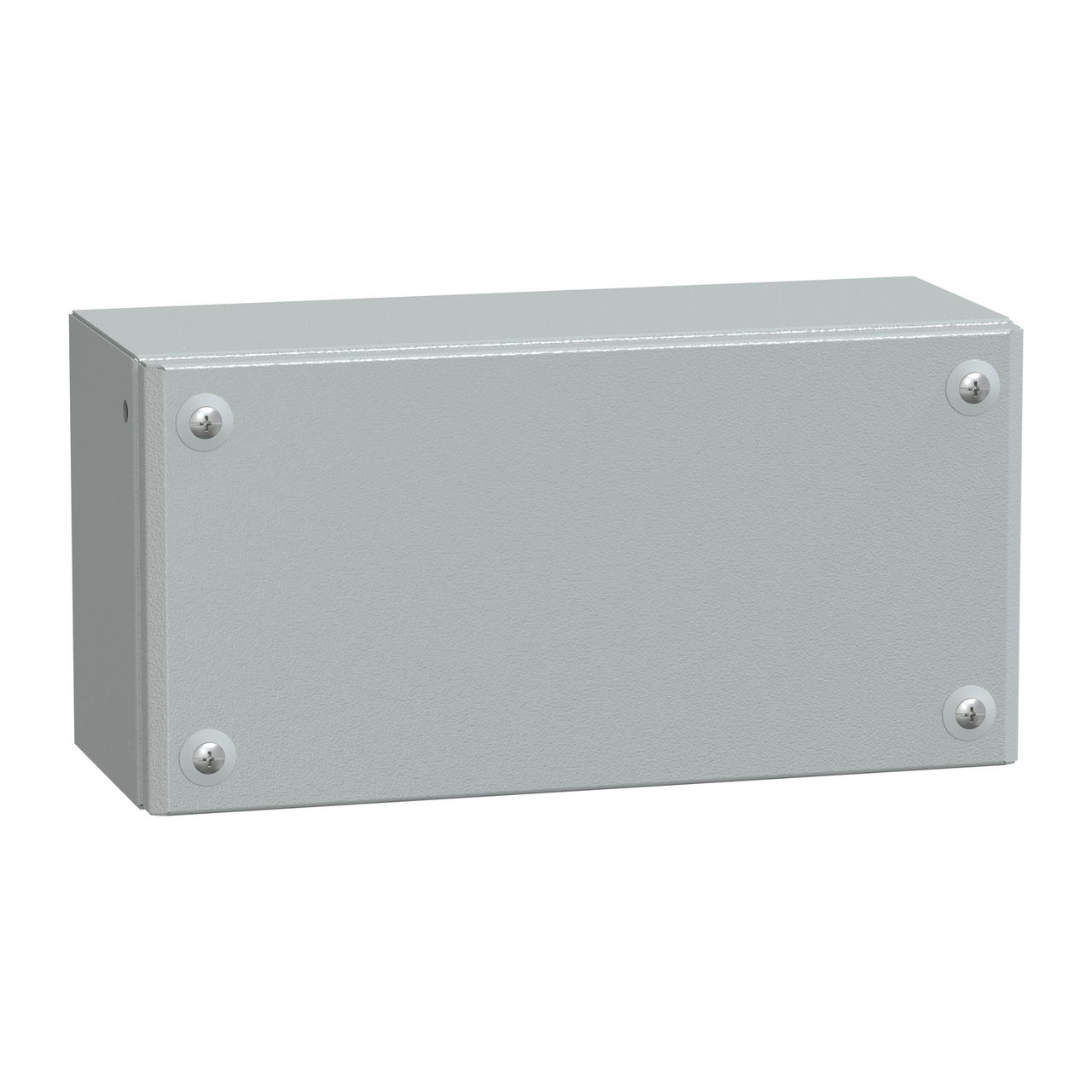

Metal industrial box plain door H150xW300xD120 IP66 IK10 RAL 7035
Industrial box for PanelSeT SBM. Multi purpose. 150 x 300 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.
Product identifiers
SKU: NSYSBM153012
EAN: 3606480520129
GTIN: 3606480520129
MPN: NSYSBM153012
Loyalty points: 21
Price range: £ 44.23 - £ 55.84 Excl. VAT
Categories
Features
|
Depth
|
120 mm
|
|
Shape
|
Rectangular
|
|
Width
|
300 mm
|
|
Colour
|
Grey
|
|
Length
|
150 mm
|
|
EFUK0020
|
FALSE
|
|
EFUK0021
|
TRUE
|
|
Material
|
Steel
|
|
Sealable
|
TRUE
|
|
RAL-number
|
7035
|
|
With cover
|
TRUE
|
|
Halogen free
|
TRUE
|
|
Rated current
|
-
|
|
Type of inlet
|
-
|
|
Connection type
|
Screwed terminal
|
|
For Ex-zone gas
|
None
|
|
Impact strength
|
IK10
|
|
Mounting method
|
Surface mounted/recessed mounted
|
|
Nominal voltage
|
-
|
|
Cover attachment
|
Screwed
|
|
For Ex-zone dust
|
None
|
|
Number of inlets
|
0
|
|
Circuit integrity
|
None
|
|
Extension possible
|
FALSE
|
|
Surface protection
|
Other
|
|
Operating temperature
|
|
|
With transparent cover
|
FALSE
|
|
Explosion-tested version
|
FALSE
|
|
Degree of protection (IP)
|
IP66
|
|
Degree of protection (NEMA)
|
4X
|
|
Number of connection clamps
|
0
|
|
Rated insulation voltage Ui
|
-
|
|
Max. conductor cross section
|
-
|
|
Material plate thickness cabinet
|
1.2 mm
|
