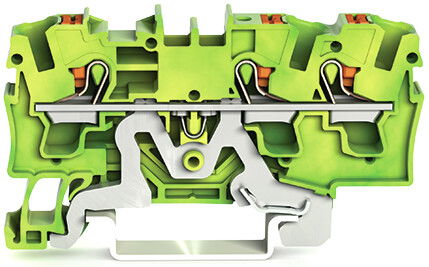

3-conductor ground terminal block with push-button 4 mm² green-yellow
3-conductor ground terminal block; with push-button; 4 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; green-yellow
Product identifiers
SKU: 2204-1307
EAN: 4055143847216
GTIN: 4055143847216
MPN: 2204-1307
Loyalty points:
4
Price: £ 175.00 Excl. VAT
Categories
Features
|
Depth
|
32.9
|
|
Width
|
6.2
|
|
Colour
|
Green/yellow
|
|
Height
|
65.5
|
|
EFNA0008
|
V0
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Operating temperature
|
105 - 105
|
|
PEN function possible
|
yes
|
|
Closing plate required
|
yes
|
|
Material insulation body
|
Thermoplastic
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Number of clamp positions per level
|
3
|
|
Connectable conductor cross section solid-core
|
1 - 6
|
|
Connectable conductor cross section multi-wired
|
0.5 - 4
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.75 - 4
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.5 - 6
|
