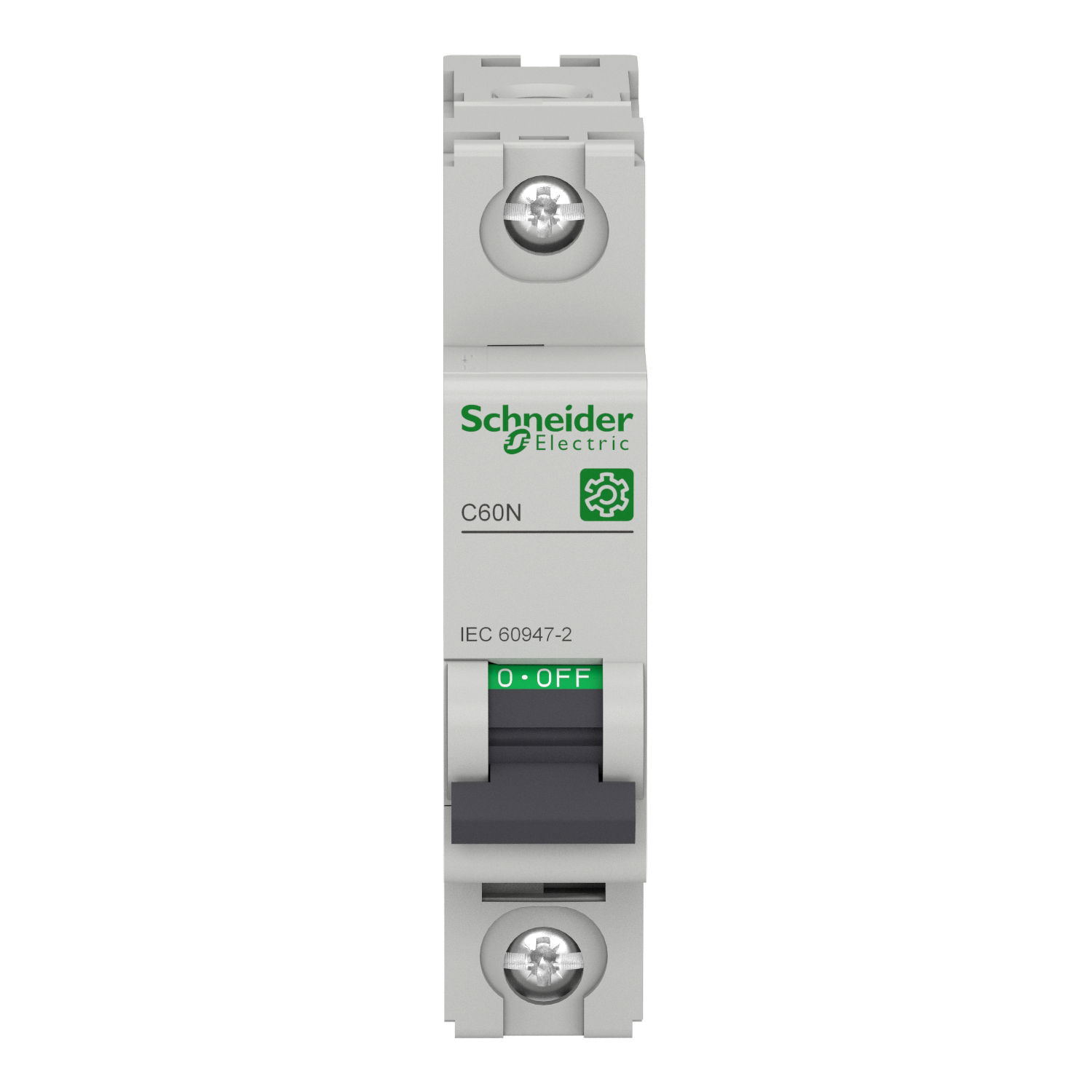

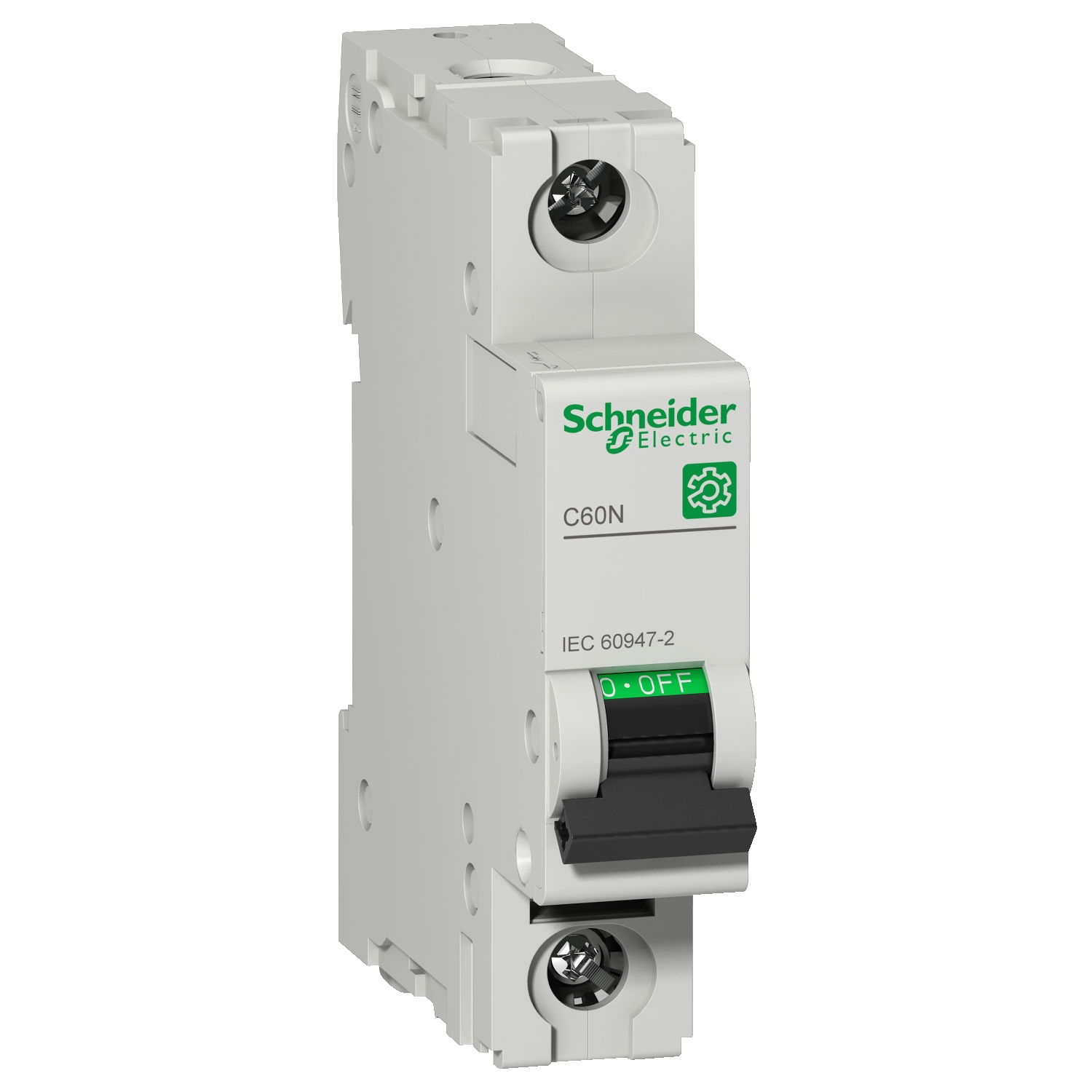

Multi9 - C60N - MCB - 1P - 10 A - C Curve - 240 V - 10 kA

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). Provides protection, signaling functions and accessories. Compliant with UL489, UL1077, IEC, CCC, CSA standards and more. Suitable for HVAC, crane and hoisting and pumping Ideal for the semiconductor industry For use in the packaging, conveying and telecom industries. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
