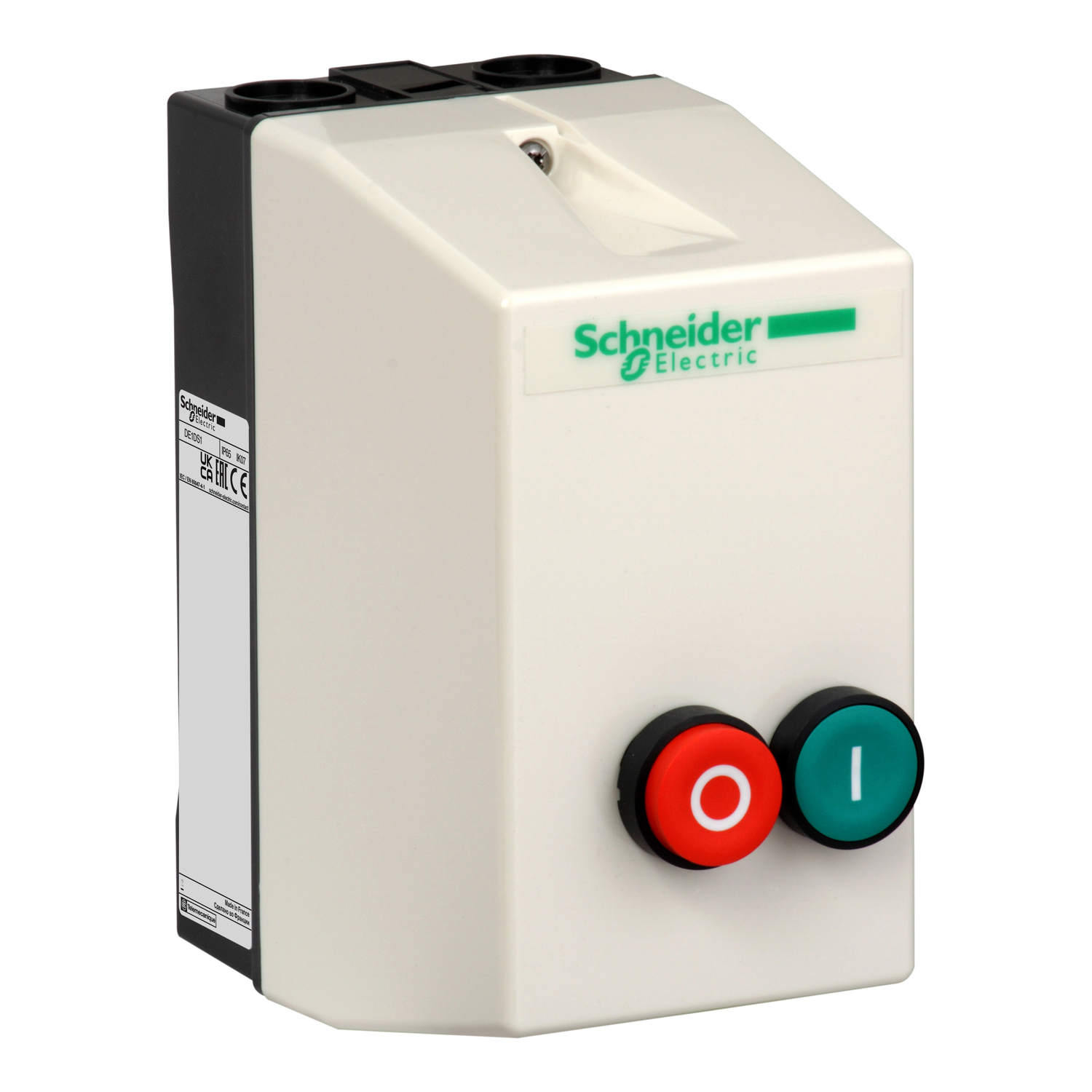

TeSys LE - enclosure for DOL starter - with 2 pushbuttons

Link copied
SKU
EAN
GTIN
MPN

TeSys LE - enclosure for DOL starter - with 2 pushbuttons by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £70.25 to £70.95 excl. VAT. Voltimum+ members earn 8 points per unit.

TeSys enclosed starters, empty enclosure for mounting a contactor and thermal overload relay for non-reversing motor applications AC-3 up to 5.5kW@400V. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). Optimized for integration of a contactor LC1D09-D12 and thermal overload relay LRD02-LRD14 depending on the motor power (devices to be ordered separately). Replacement part for TeSys enclosed starters LE1D09xx to LE1D12xx. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom.

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 70.25 - £ 70.95 Excl. VAT

Specifications

Depth 150 mm
Model Surface mounting
Width 88 mm
Height 166 mm
Housing material Plastic
With transparent cover no
Degree of protection (IP) IP65
Degree of protection (NEMA) -

Documents

Declaration of Conformity (Sustainability)

DE1DS1 REACh Regulation

Open

Product data sheet

Open

Catalog

TeSys - Catalogue 2021 Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

DE1DS1 EU RoHS Directive

Open

Environmental Disclosure

TeSys LE - enclosed DOL starter

Open

Environmental Disclosure

TeSys LE - enclosed DOL starter

Open

Circularity Profile

TeSys LE - enclosed DOL starter

Open

CAD

Open
