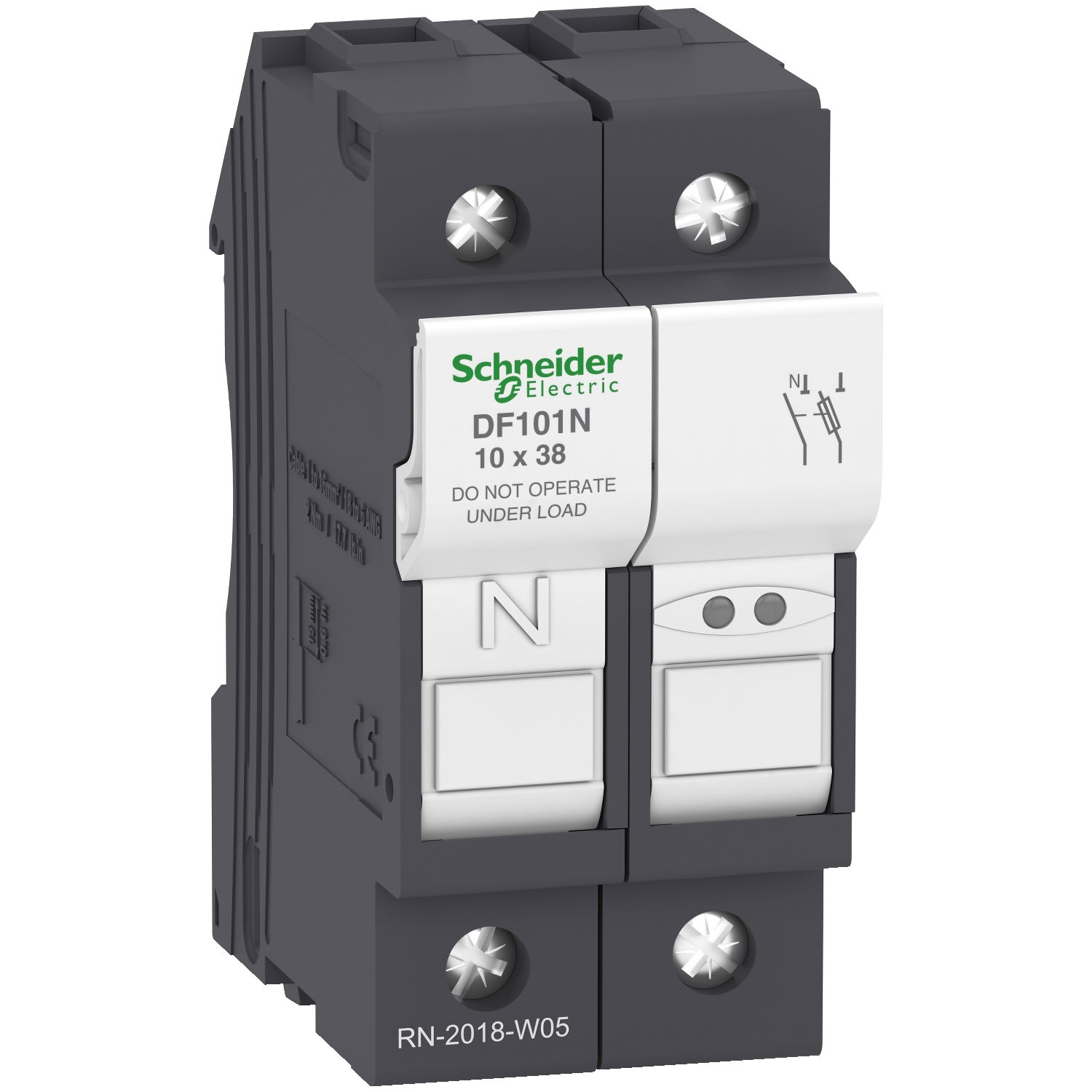

Fuse carrier TeSys DF, 1P+N 32A, fuse size 10 x 38 mm
Fuse carrier TeSys DF, 1P+N 32A, fuse size 10 x 38 mm by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 4 of them. Trade prices range from £10.62 to £18.45 excl. VAT. Voltimum+ members earn 2 points per unit.
TeSys DF modular fuse carrier, 2 poles (1P+N) , for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).
Product identifiers
SKU: DF101N
EAN: 3389119407229
GTIN: 3389119407229
MPN: DF101N
Loyalty points:
2
Price range: £ 10.62 - £ 18.45 Excl. VAT
ETIM group
Specifications
| Lockable | yes |
| For fuse size | 10x38 mm |
| Built-in depth | 56.5 mm |
| Mounting method | DIN rail |
| Nominal voltage | 690 V |
| Number of poles | 2 |
| Degree of protection (IP) | IP20 |
| With optical defect indication | no |
