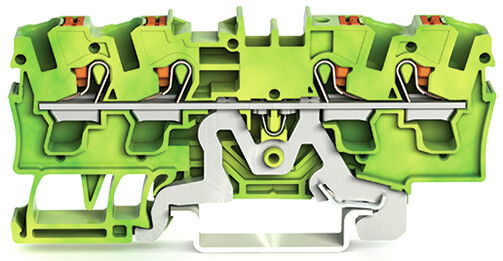

4-conductor ground terminal block with push-button 4 mm² green-yellow
Wago

4-conductor ground terminal block with push-button 4 mm² green-yellow

4-conductor ground terminal block; with push-button; 4 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 4,00 mm²; green-yellow

Product identifiers

SKU: 2204-1407
EAN: 4055143847346
GTIN: 4055143847346
MPN: 2204-1407

V+ Loyalty points:

8

Price: £ 4.99 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 32.9
Width 6.2
Colour Green/yellow
Height 78.7
EFNA0008 V0
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Closing plate required yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 4
Connectable conductor cross section multi-wired 0.5 - 4
Connectable conductor cross section fine-strand without cable end sleeve 0.5 - 6
