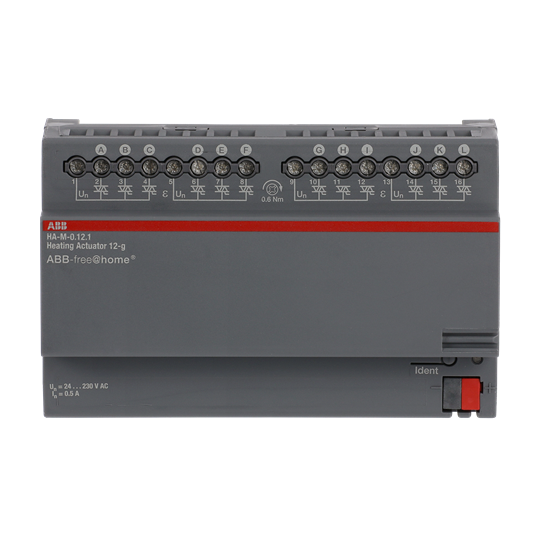

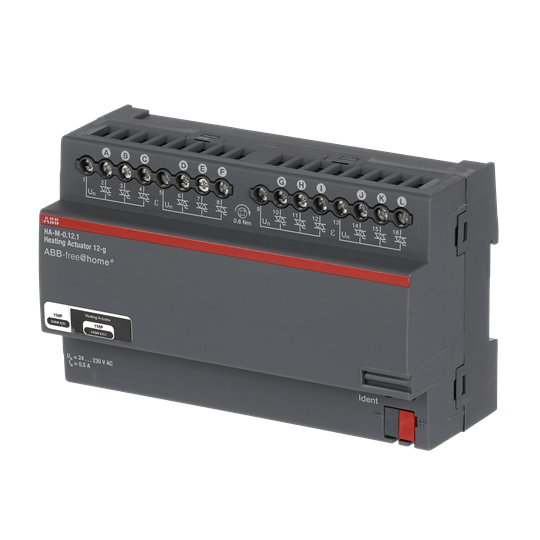

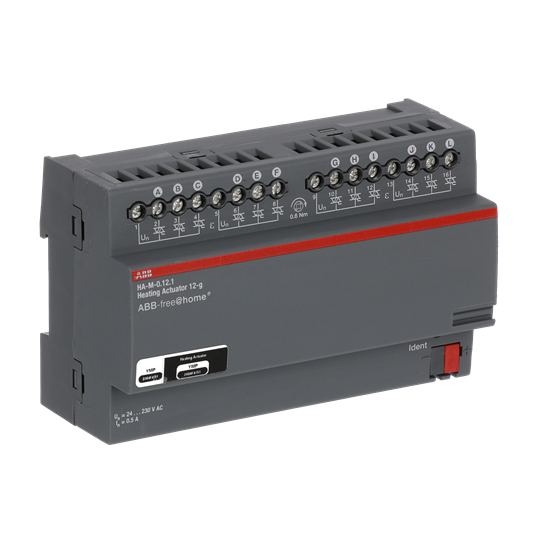

HA-M-0.12.1 Heating Actuator, 12-fold, 230 V, MDRC

Link copied
SKU
EAN
GTIN
MPN

HA-M-0.12.1 Heating Actuator, 12-fold, 230 V, MDRC by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £287.55 excl. VAT. Voltimum+ members earn 169 points per unit.

For controlling thermoelectric actuating drives in heating/cooling systems. The outputs are protected against short-circuit and overload. The bus can be connected via enclosed terminal block.

Voltimum+ Loyalty Programme Loyalty points: 169

Price: £ 287.55 Excl. VAT

Specifications

Manual switch no
Bus system KNX no
Bus system LON no
Mounting method Other
Number of outputs 12
Other bus systems Other
Switching voltage
Bus system Powernet no
With bus connection yes
Number of digital inputs 0
Valve protection function no
Correcting variable switching yes
Correcting variable consistent no
Width in number of modular spacings 8
Min. depth of built-in installation box -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

8_TE_MB_XX_V1-0_2CDC072027F0017_Rev_A.pdf

Open

Instructions for use

2CDG941146P0003.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

HAM_0121_CE-ROHS_xx_V1-2_2CDK508140D2701.pdf

Open
