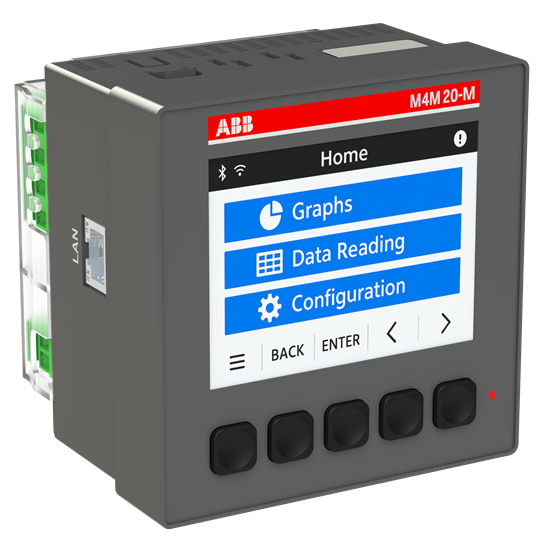

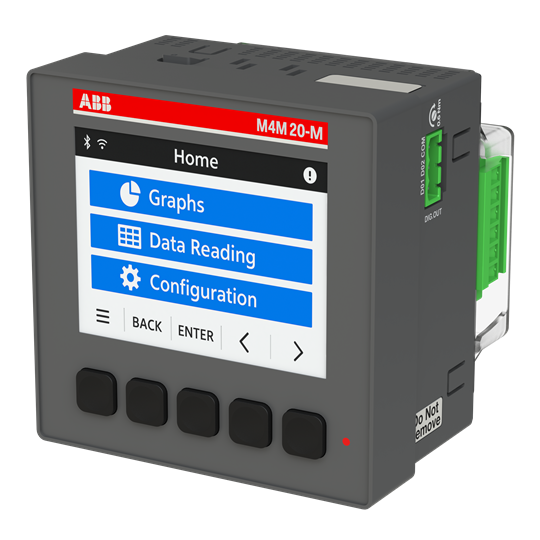

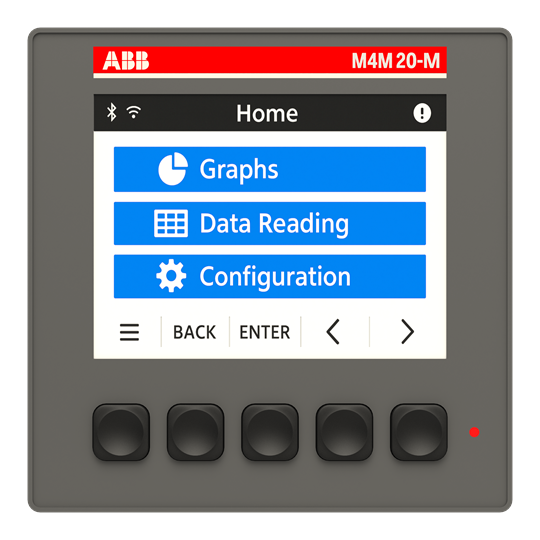

M4M 20-M ETHERNET Network analyzer

Name: M4M 20-M ETHERNET Network analyzer
Brand: ABB
SKU: 2CSG239065R4051
Price: 469.94 GBP
Availability: OutOfStock

M4M 20-M Ethernet is a network analyzer with MID approval, 2 digital outputs, aux supply 48-240 V AC/DC, Bluetooth and Modbus TCP/IP

Product identifiers

SKU: 2CSG239065R4051

EAN: 8012542390657

GTIN: 8012542390657

MPN: M4M 20-M ETHERNET

Loyalty points: 228

Price: £ 469.94 Excl. VAT

Specifications

Depth	78
Model	Measurement transformer
Width	96
Height	96
Approval	Measuring Instruments Directive
Frequency
Pole type	Three conductor/four conductor
Calibrated	yes
Pulse rate
Pulse type	S0
Energy type	Effective power and reactive power
Tariff type	Multi-tariff
Pulse output	Electrical
Suitable for	-
Type of meter	-
Accuracy class	-
Tariff control	Internal/external
With lock code	no
EEC40 signature	no
Mounting method	-
Power consumption	10
Type of interface	RS-485
Type of indication	Digital
Max. current (Imax)	6
Escapement mechanism	yes
Nominal current (In)	6
Nominal voltage (Un) L-L
Nominal voltage (Un) N-L
Degree of protection (IP)	IP54
Degree of protection (NEMA)	-
Measurement type load profile	no
Number of positions total (counter)	9
Width in number of modular spacings	5.5
