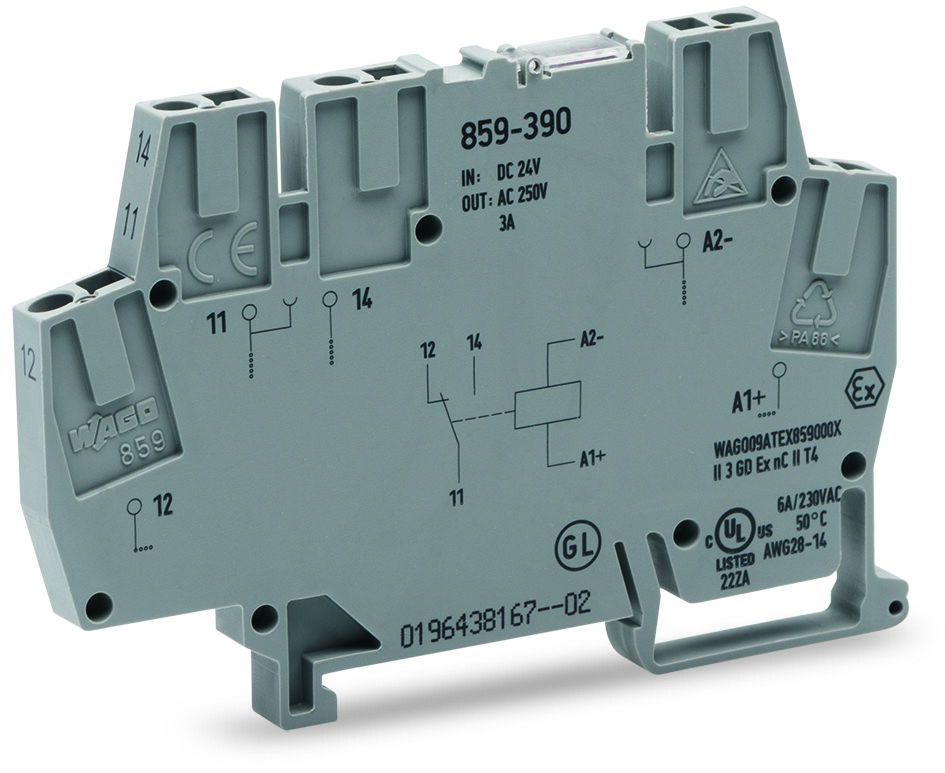

Relay module Nominal input voltage: 24 VDC 1 changeover contact gray

Name: Relay module Nominal input voltage: 24 VDC 1 changeover contact gray
Brand: Wago
SKU: 859-390
Availability: InStock

Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Railway; Red status indicator; Module width: 6 mm; 2,50 mm²; gray

Product identifiers

SKU: 859-390

EAN: 4055143607629

GTIN: 4055143607629

MPN: 859-390

Price range: £ 14.38 - £ 27.87 Excl. VAT

Relays

Specifications

Depth	91
Width	6
Height	91
Nominal current	5
Material contact	-
Drive, polarization	Polarized
With LED indication	yes
Complete with socket	yes
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP20
Drive, switching attitude	Mono stable
Material of contact insert	-
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	-
Type of electric connection	Spring clamp connection
With forced-guided contacts	no
Rated control supply voltage DC	24 - 24
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	1
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	-
