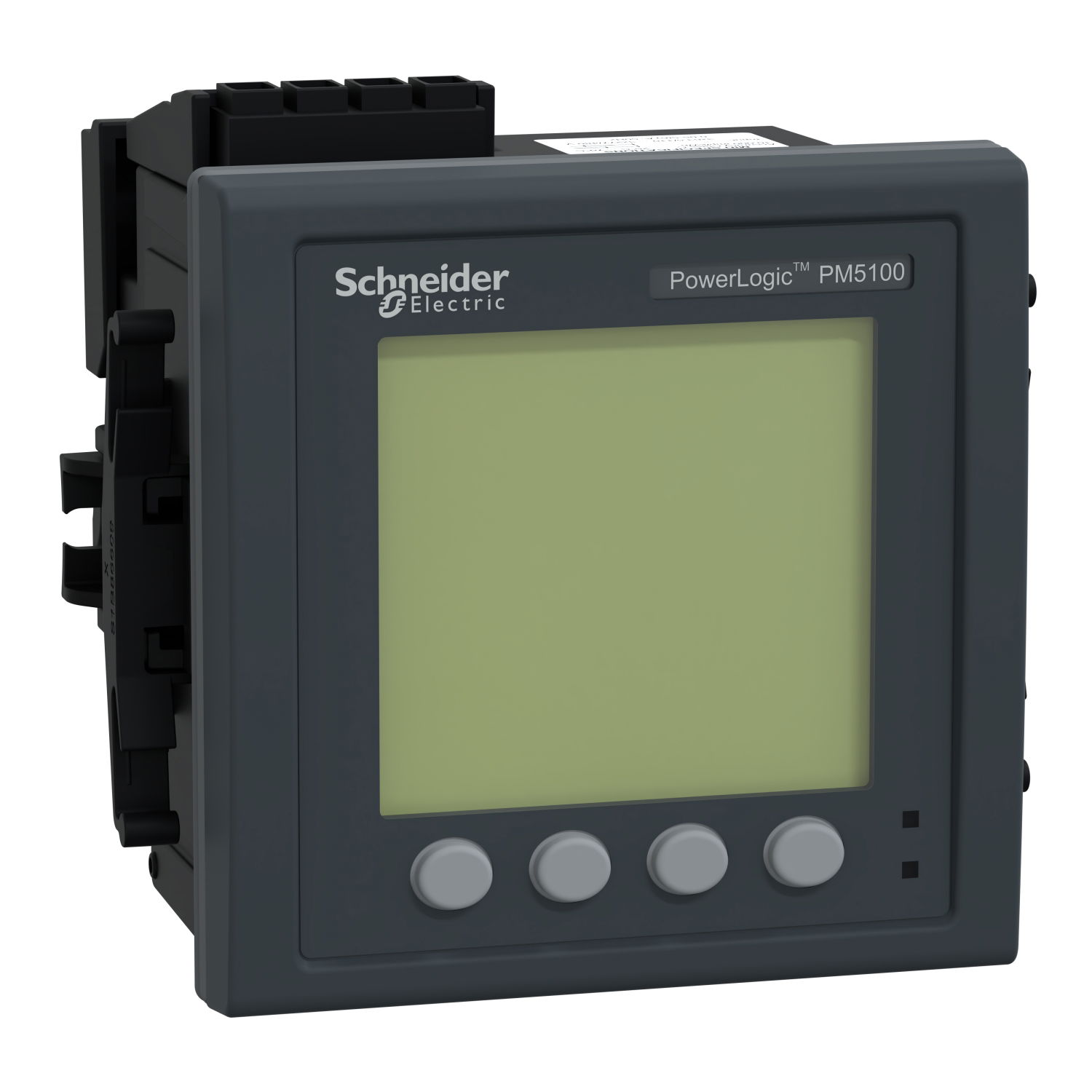

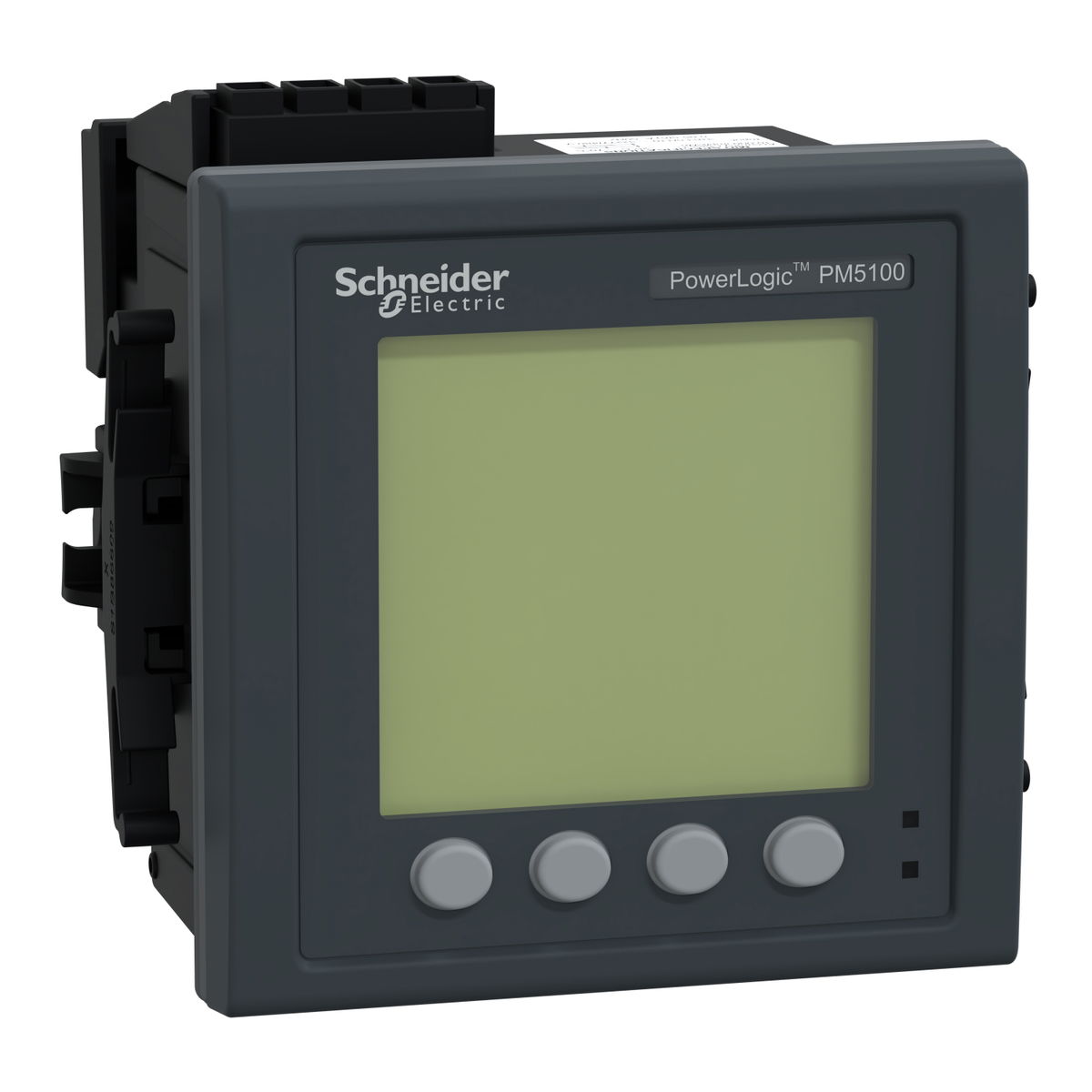

PM5111 Meter, modbus, up to 15th H, 1DO 33 alarms, MID
This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display and carries additional MID certification for revenue applications. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to 15th Harmonic. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol is Modbus RTU and ASCII 2 wires with RS485 port support. The meter also has one digital pulse output and 33 configurable alarms. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 13.4 onces (380 g).
Product identifiers
SKU: METSEPM5111
EAN: 3606480613999
GTIN: 3606480613999
MPN: METSEPM5111
Loyalty points: 152
Price range: £ 288.32 - £ 404.45 Excl. VAT
Features
|
Depth
|
89 mm
|
|
Model
|
Measurement transformer
|
|
Width
|
112 mm
|
|
Height
|
101.2 mm
|
|
Display
|
LCD
|
|
Pole type
|
Three conductor/four conductor
|
|
Voltmeter
|
TRUE
|
|
Calibrated
|
FALSE
|
|
Ampere meter
|
TRUE
|
|
Power factor
|
TRUE
|
|
Pulse output
|
Optical
|
|
Pulse counter
|
FALSE
|
|
Apparent power
|
TRUE
|
|
Remote display
|
FALSE
|
|
Frequency meter
|
TRUE
|
|
Mounting method
|
Front mounting
|
|
Supply voltage DC
|
|
|
Sampling frequency
|
6400 Hz
|
|
Max. current (Imax)
|
20 A
|
|
Nominal current (In)
|
5 A
|
|
Reactive power meter
|
TRUE
|
|
Step angle (cos phi)
|
TRUE
|
|
Suitable for RJ plug
|
FALSE
|
|
Harmonics measurement
|
TRUE
|
|
Measured value memory
|
FALSE
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
With firmware signature
|
FALSE
|
|
Number of digital inputs
|
0
|
|
Number of analogue inputs
|
0
|
|
Number of digital outputs
|
1
|
|
Number of analogue outputs
|
0
|
|
With rotational speed meter
|
FALSE
|
|
Display resolution (vertical)
|
128 px
|
|
Measurement type load profile
|
TRUE
|
|
Measuring range for frequency
|
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Number of Ethernet connections
|
0
|
|
Supporting protocol for Modbus
|
TRUE
|
|
With audit logging (audit log)
|
FALSE
|
|
Display resolution (horizontal)
|
128 px
|
|
Supporting protocol for PROFIBUS
|
FALSE
|
|
With communication interface KNX
|
FALSE
|
|
Wth communication interface M-Bus
|
FALSE
|
|
Effective power measurement device
|
TRUE
|
|
Supporting protocol for PROFINET IO
|
FALSE
|
|
With communication interface RS-485
|
TRUE
|
|
Number of current measurement inputs
|
6
|
|
Number of voltage measurement inputs
|
4
|
|
Degree of protection (IP), front side
|
Other
|
|
Supporting protocol for OPC UA PubSub
|
FALSE
|
|
With Role Based Access Control (RBAC)
|
FALSE
|
|
Web server with HTTPS transfer protocol
|
FALSE
|
|
Supporting protocol for other bus systems
|
TRUE
|
|
Supporting protocol for IEC 61850 Ethernet
|
FALSE
|
|
Connectable conductor cross section solid-core
|
|
|
With logging of security events (security event log)
|
TRUE
|
|
Accuracy class active energy according to IEC 62053-22
|
0.5S
|
|
Accuracy class reactive energy according to IEC 62053-23
|
Other
|
