WP53-02

Link copied
SKU
EAN
GTIN
MPN

WP53-02 by BG Electrical is listed by 2 electrical wholesalers on Voltimum UK, including RS Electrical Supplies and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £12.50 to £22.76 excl. VAT. Voltimum+ members earn 1 point per unit.

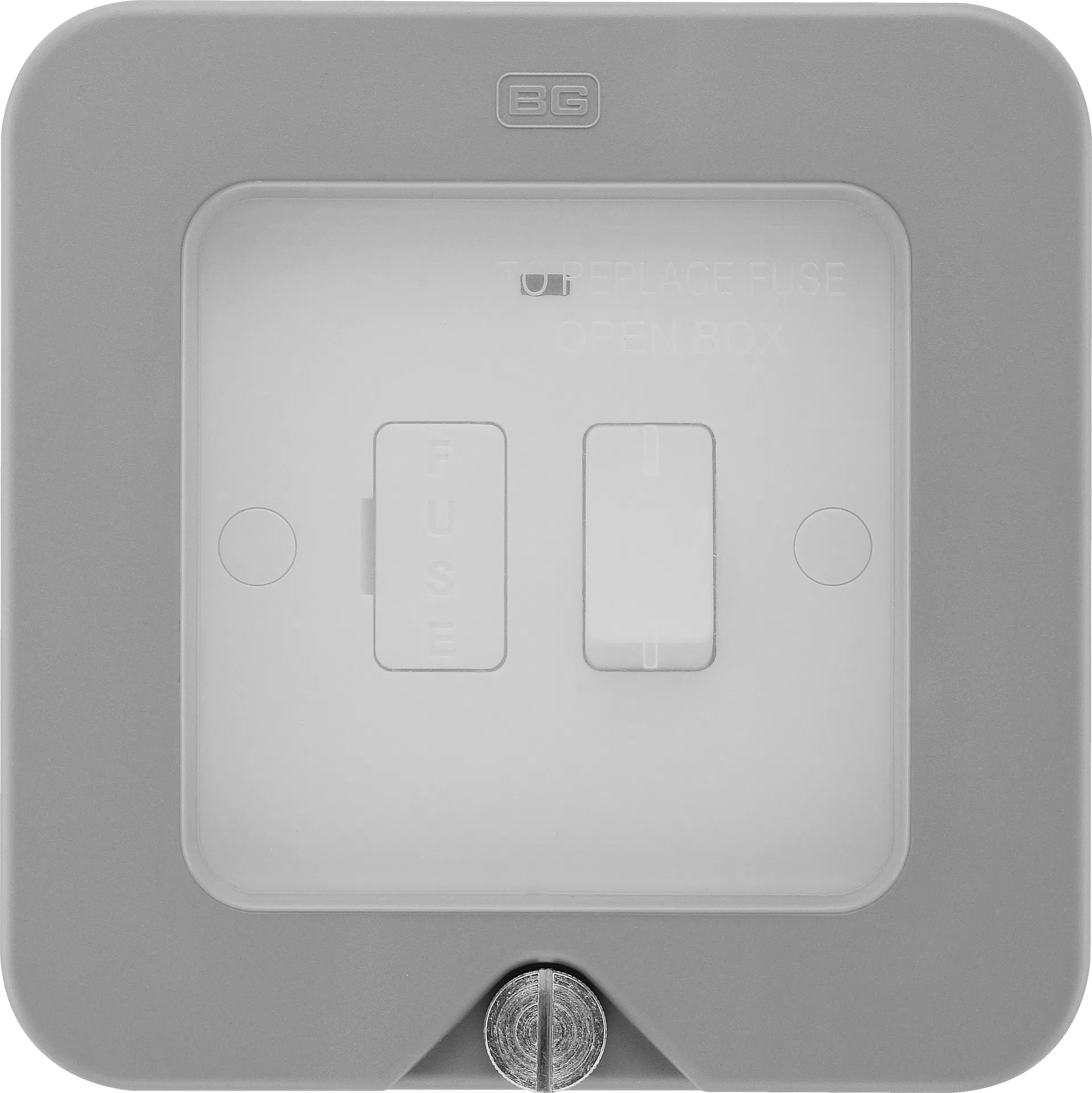

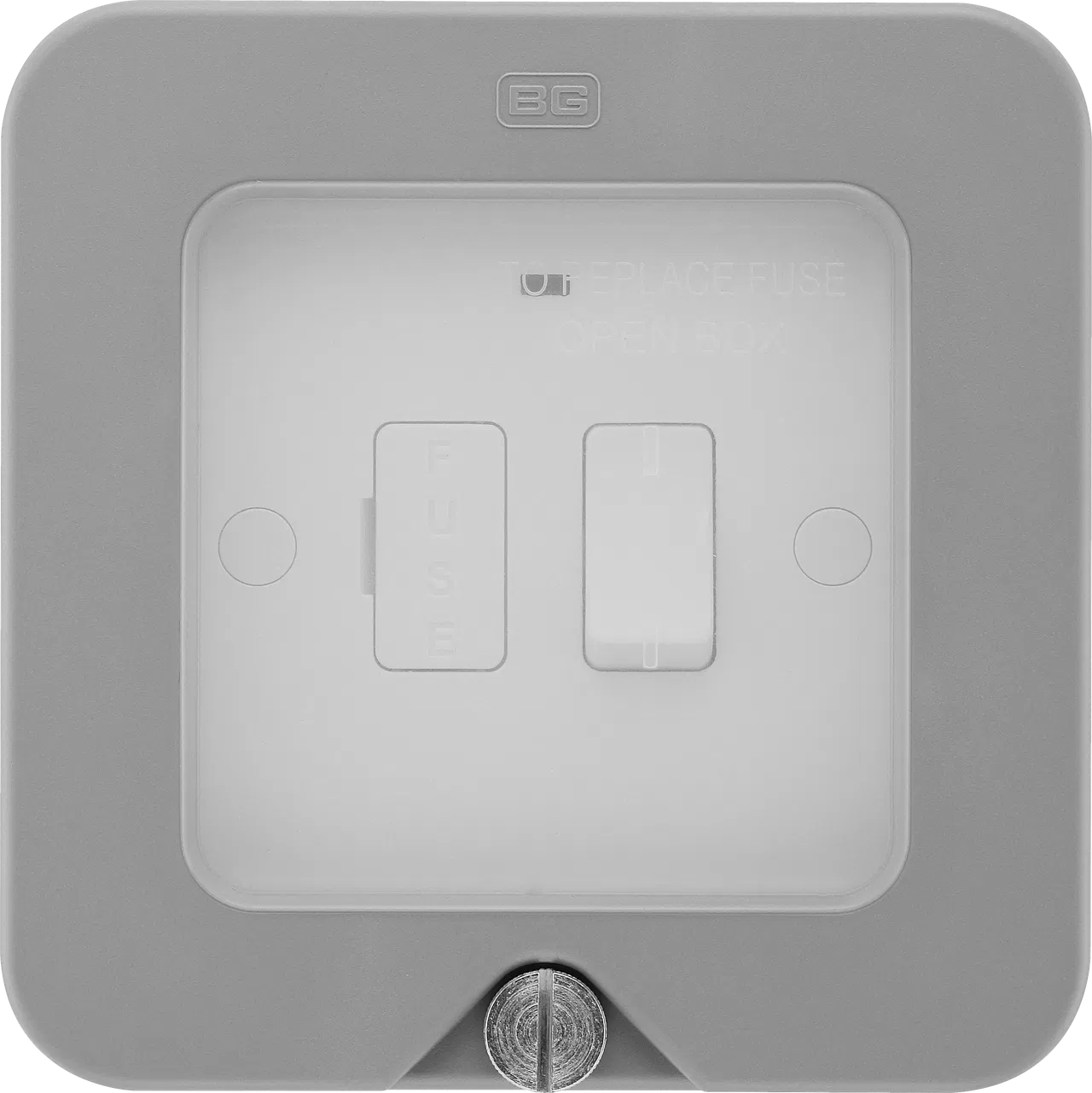

BG Nexus Storm, Switched Fused Connection Unit with Indicator IP66

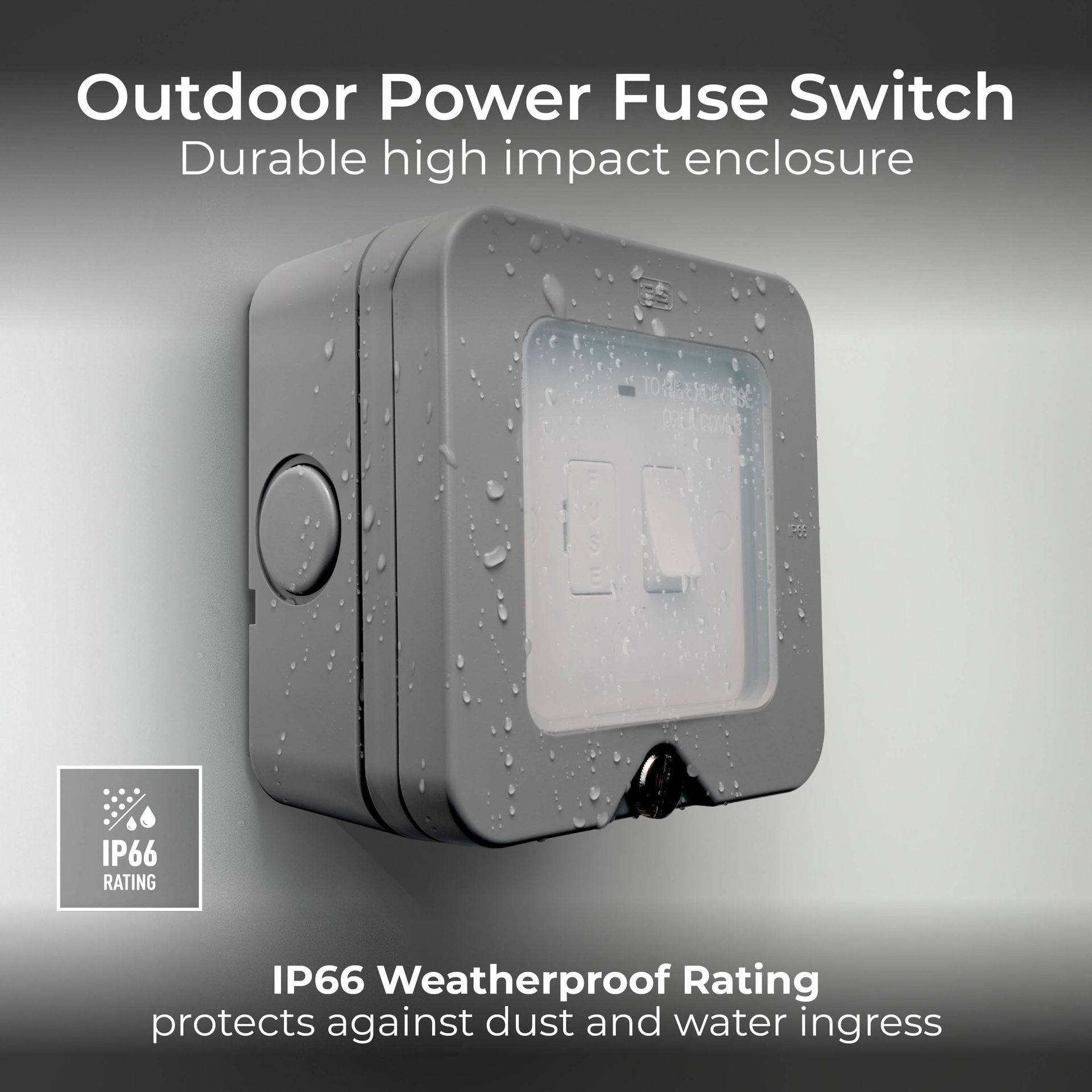

Weather and dust protection - IP66 (with cover closed)

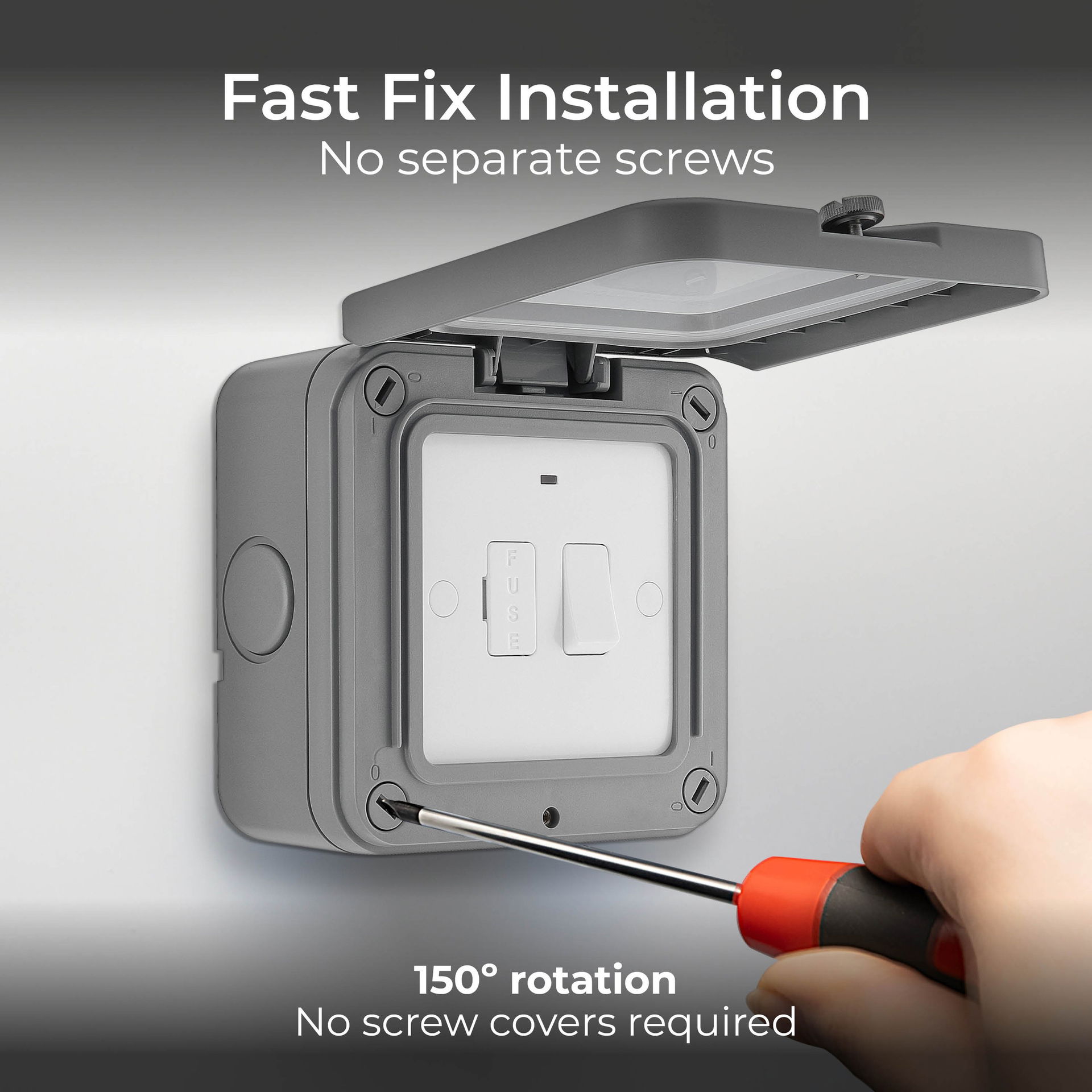

Fast fix - no separate screws, no screw covers, 150º rotation

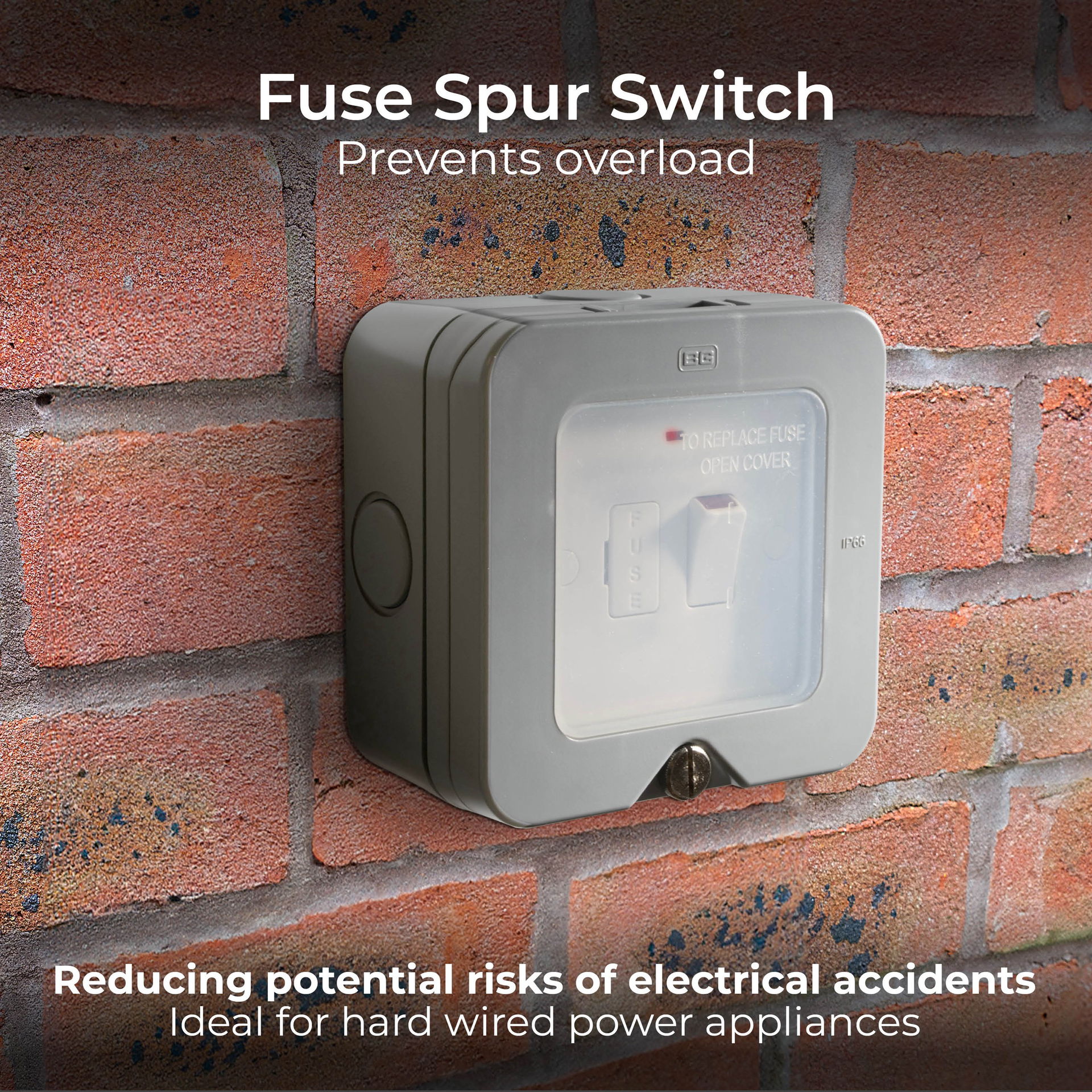

Ideal for spur circuits and hard wired power appliances

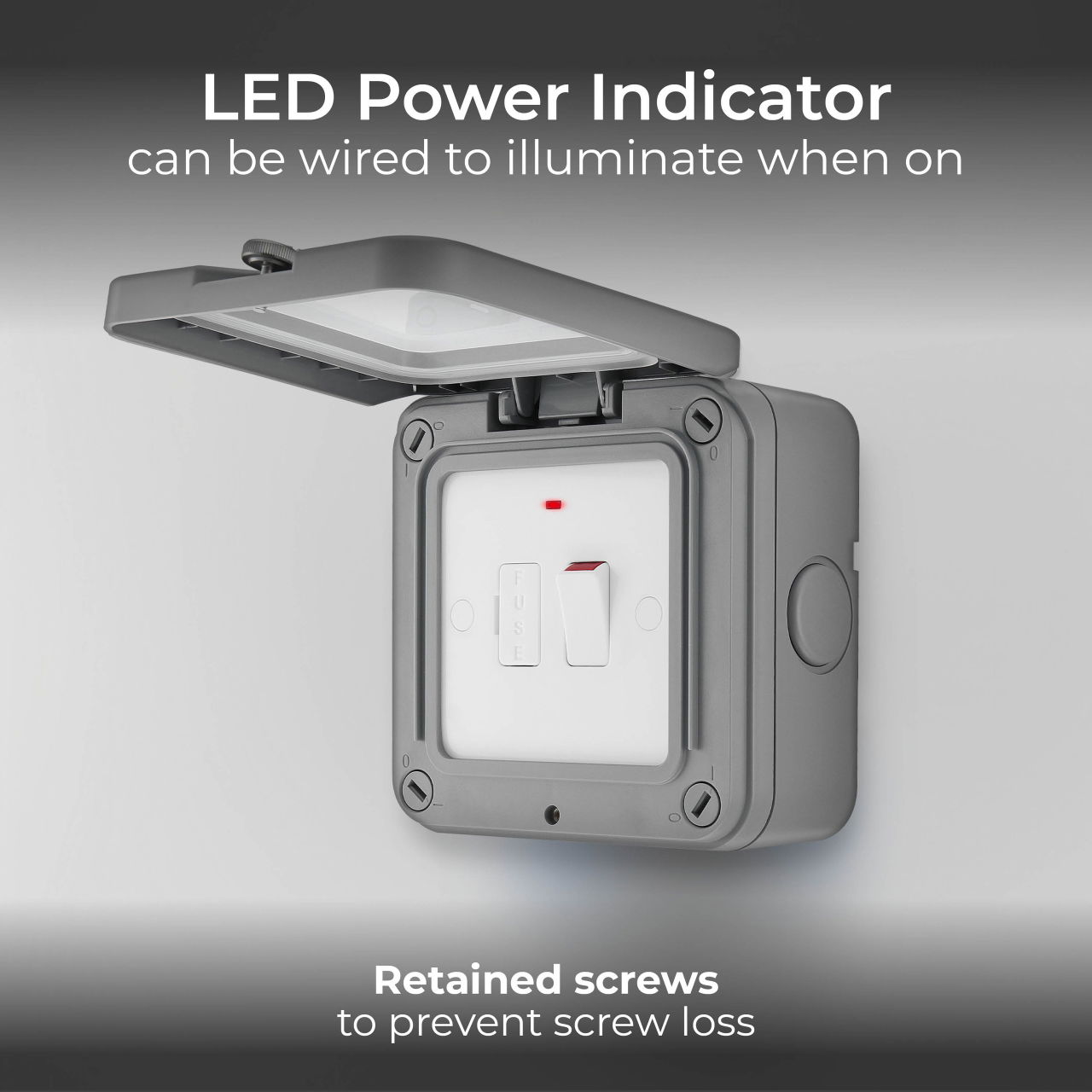

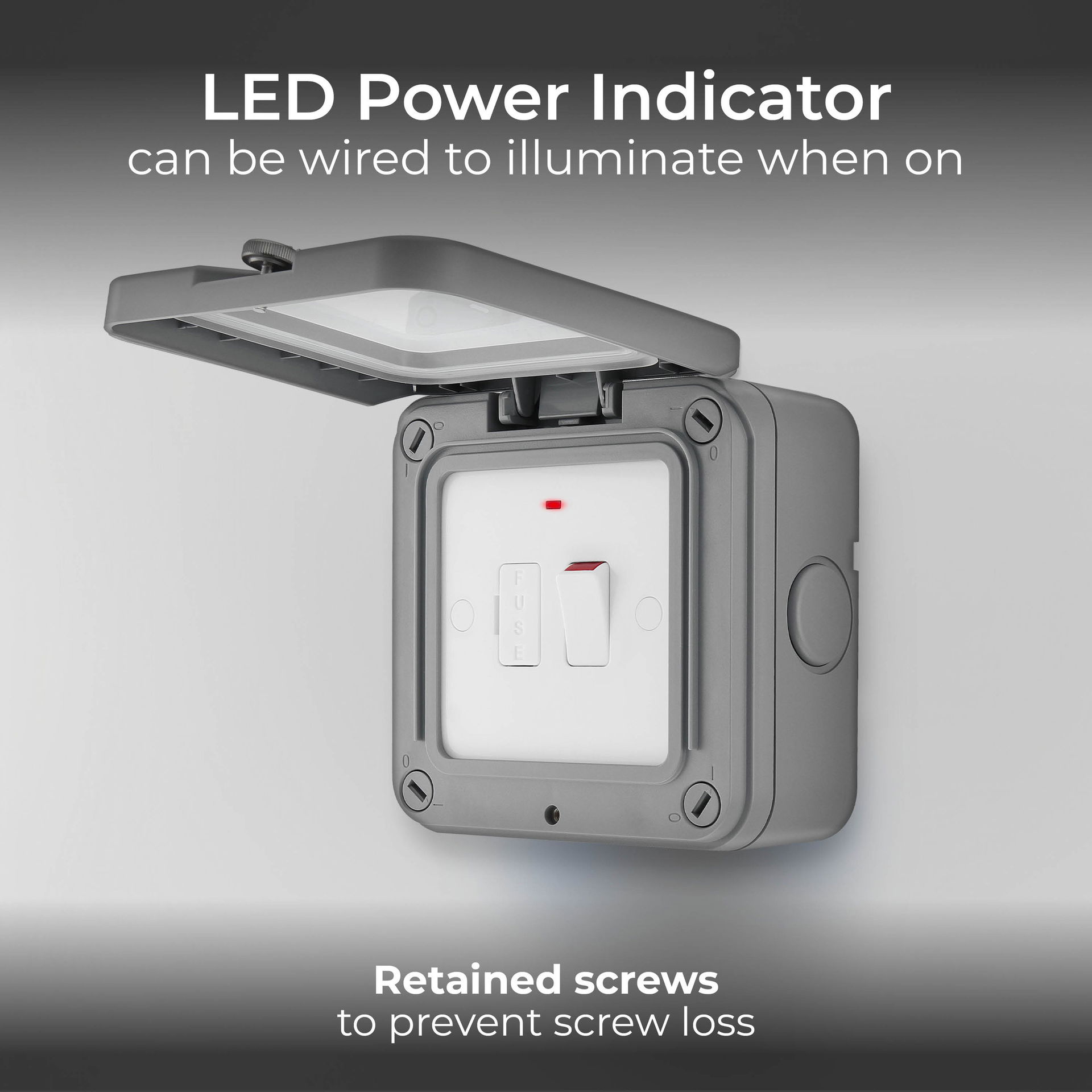

Flexible membrane - allows easy switch and power status indication without compromising IP rating

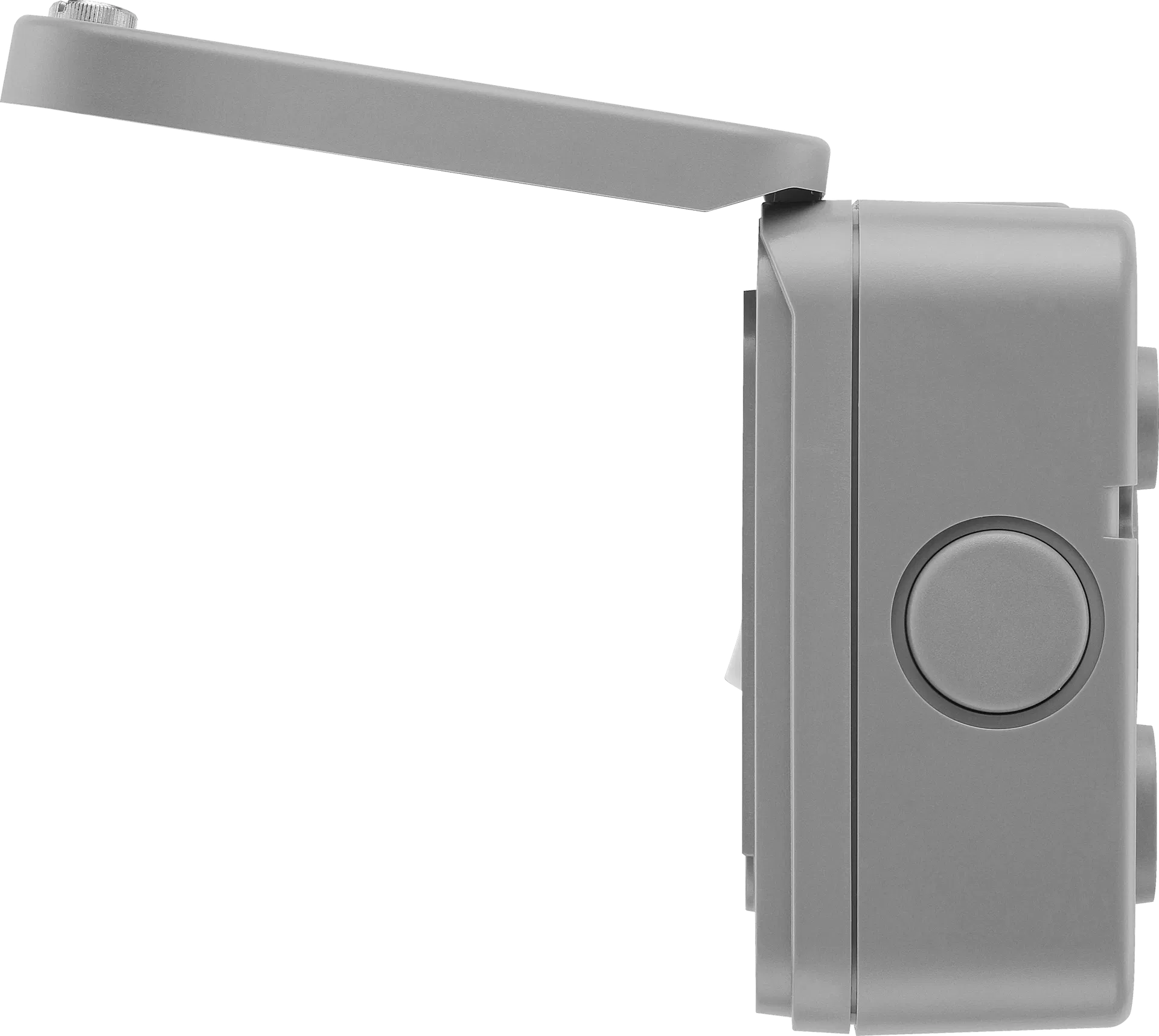

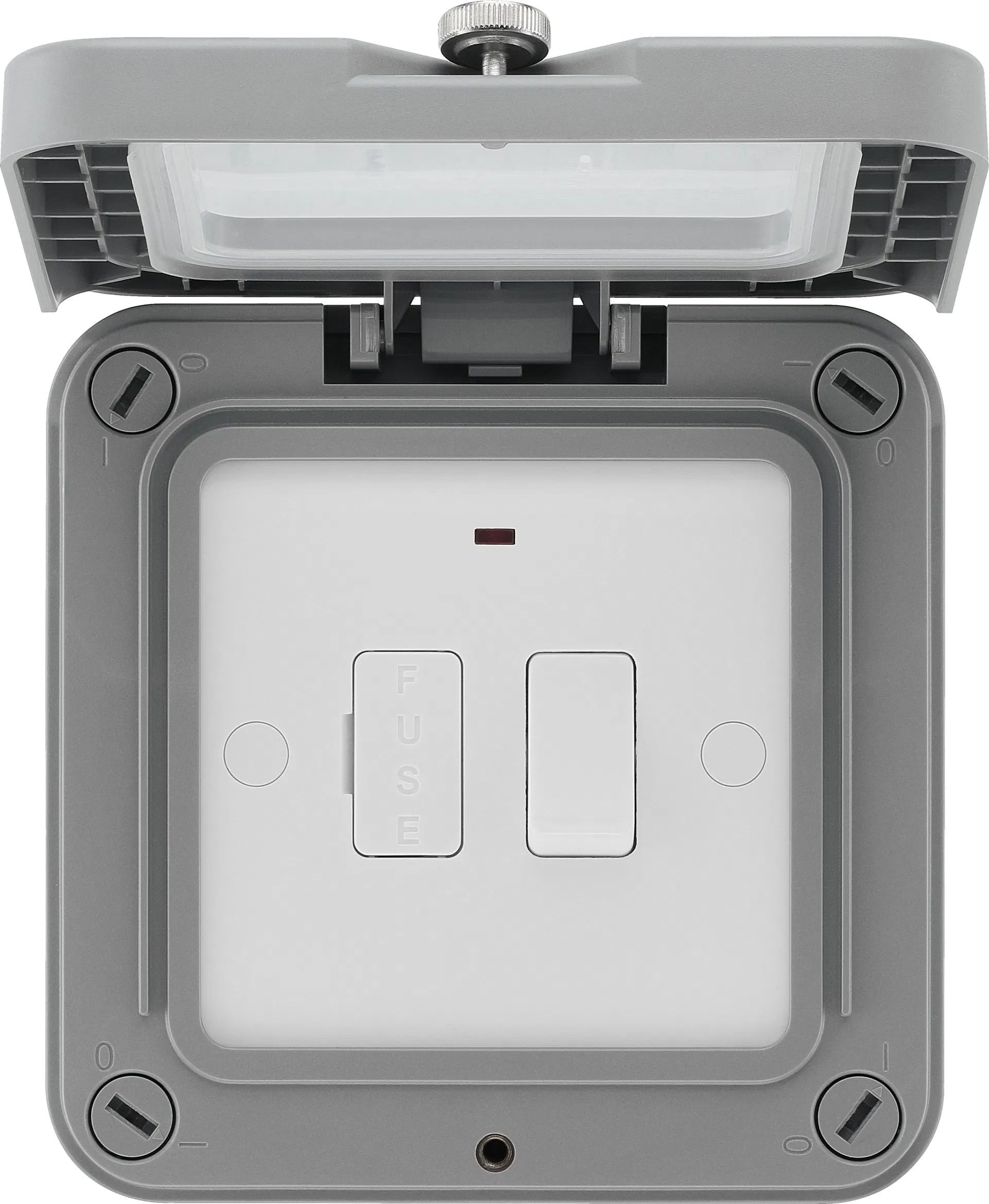

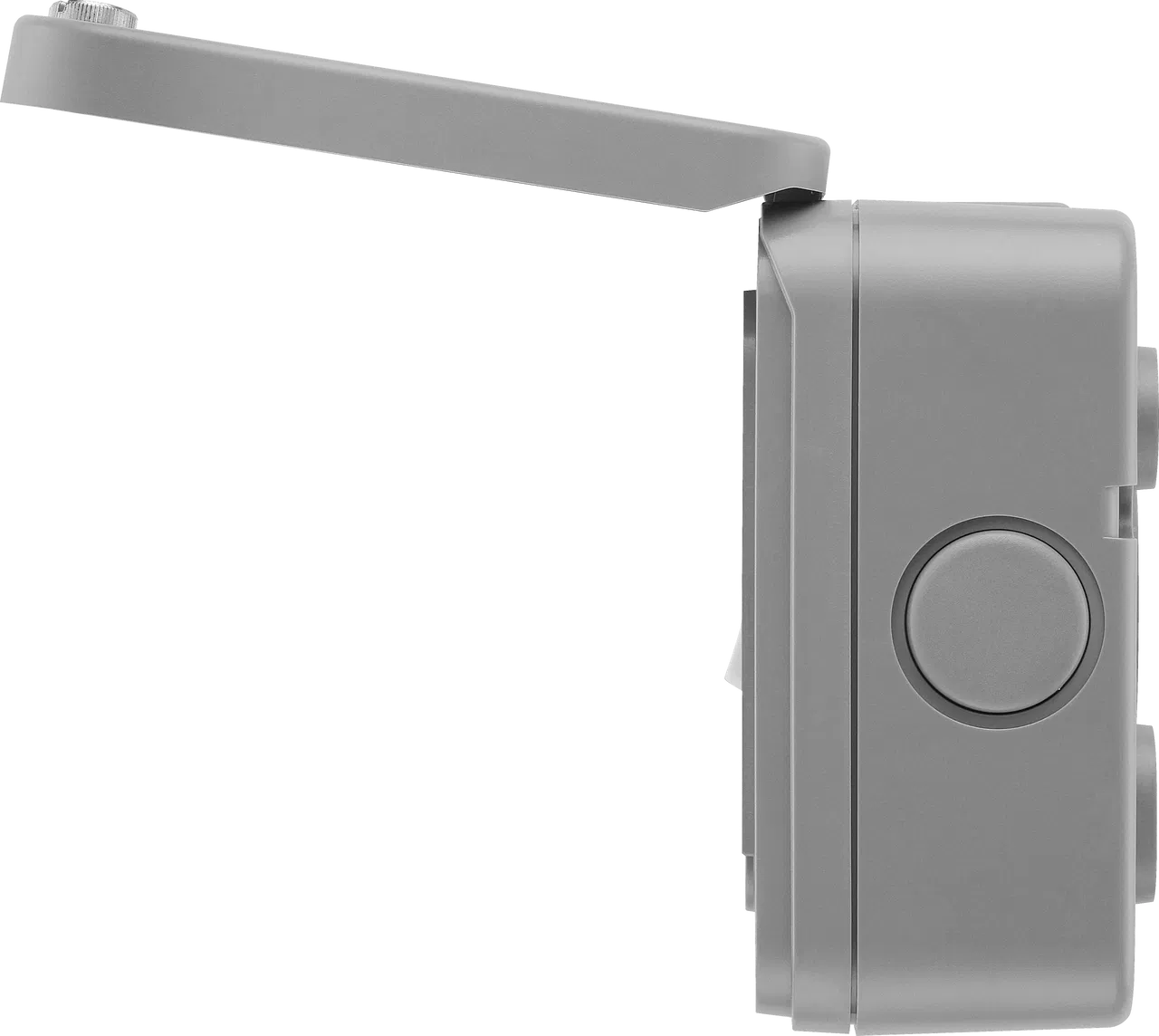

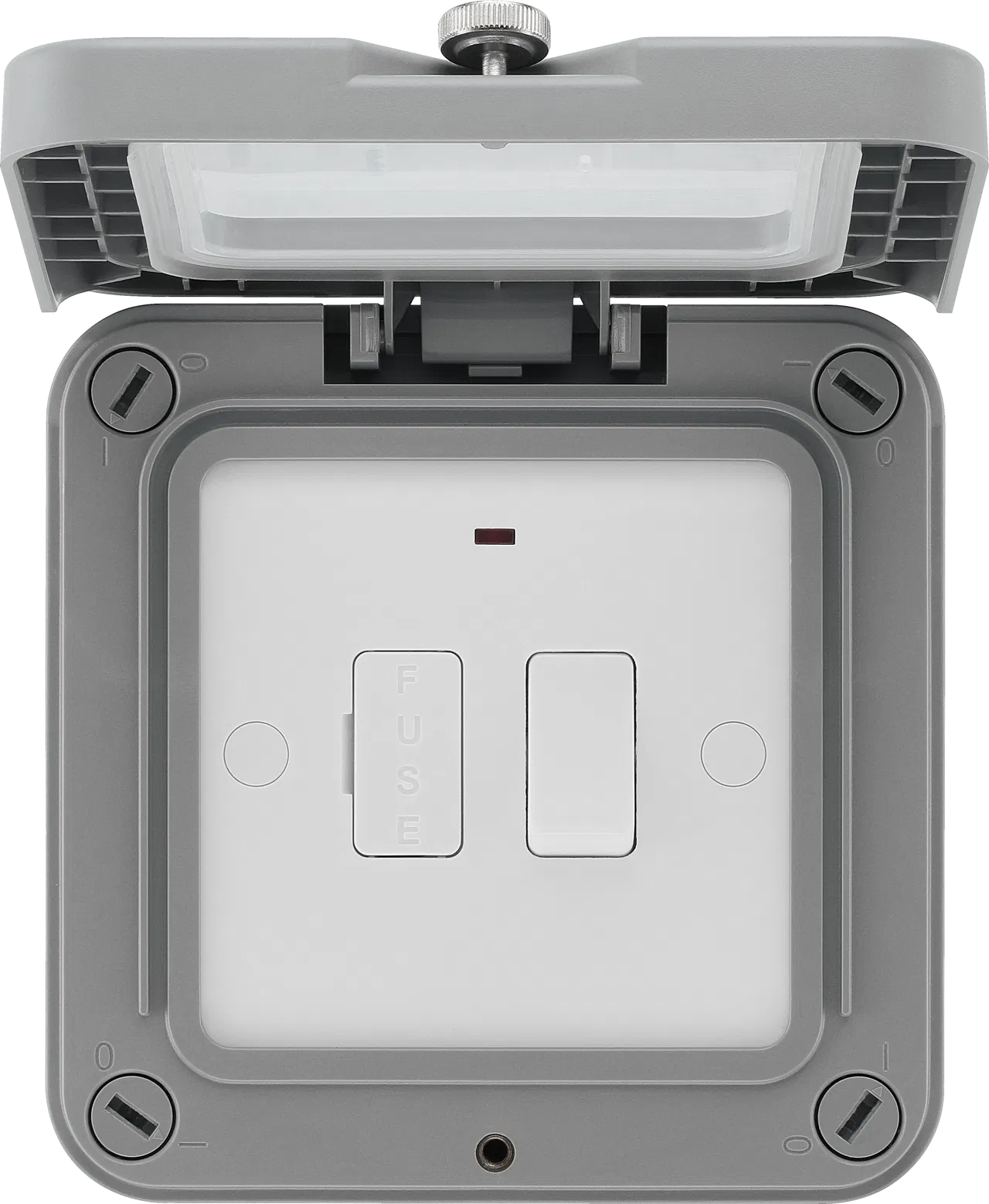

Hinged cover - with fixing screw provides access to the fuse

Robust and high impact outdoor unit for safe electricity supply outdoors

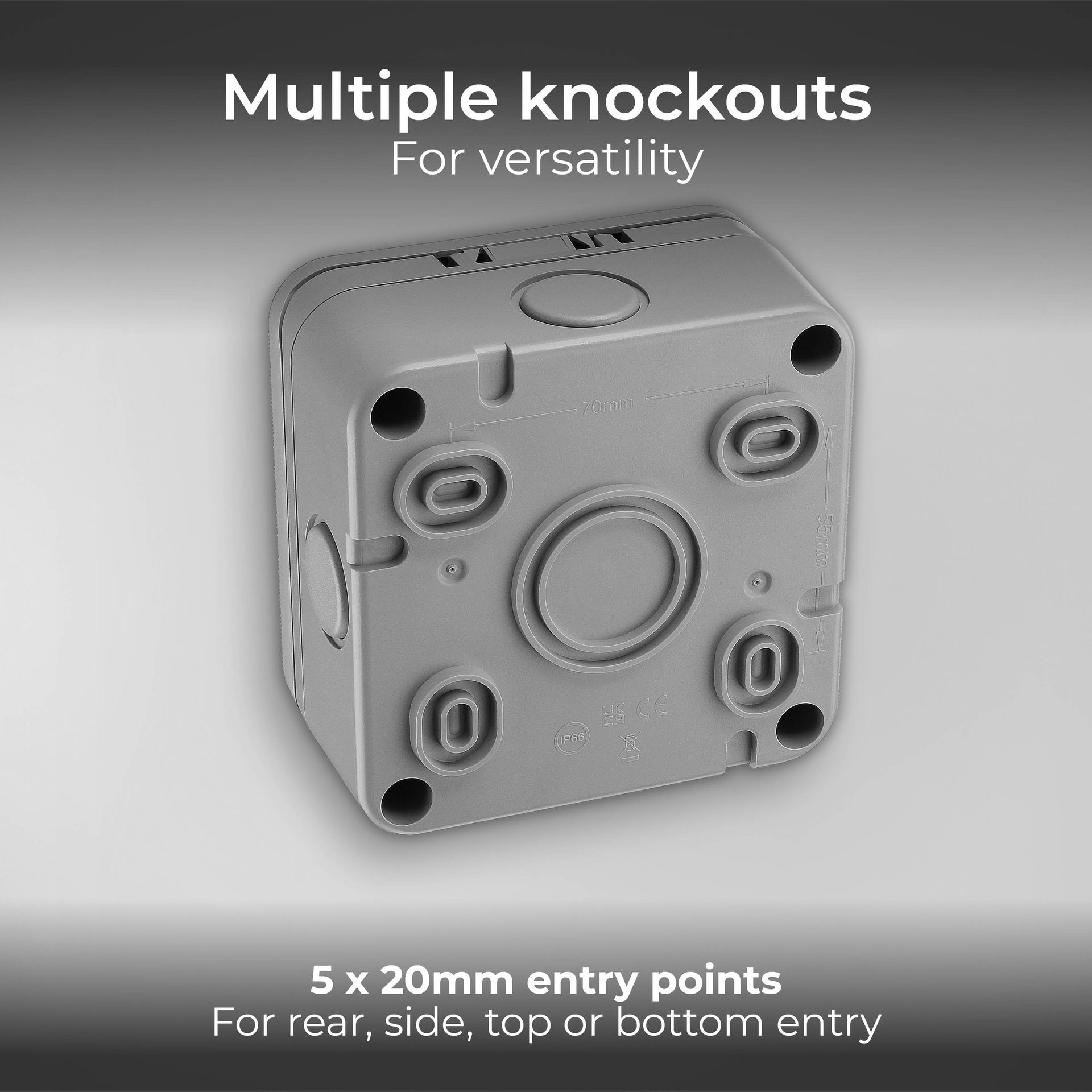

Multiple knockouts for versatility when installing - 5 x 20mm

Pre-fitted with 13A fuse

Double pole for peace of mind and safer installation

Angled in-line colour coded terminals with captive screws - for quick and easy installation

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 12.50 - £ 22.76 Excl. VAT

Specifications

General Colour Grey
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator Yes
Minimum Box Depth (mm) N/A
Terminal Capacity (mm²) 2 x 4mm² , 3 x 2.5mm², 1 x 6mm²
Fused Yes
Fused Holder Colour White
Anti-microbial Property No
Flex Out Position None
Cable Outlet No
Number of Earth Terminals 2
Terminals with Colour Coding Print Yes
Screw Caps No
IP Rating IP66
Warranty (years) 25
