Miniature Circuit Breaker - S200 - 1P - 2 A - C - (AC) 6 kA
1 / 3
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

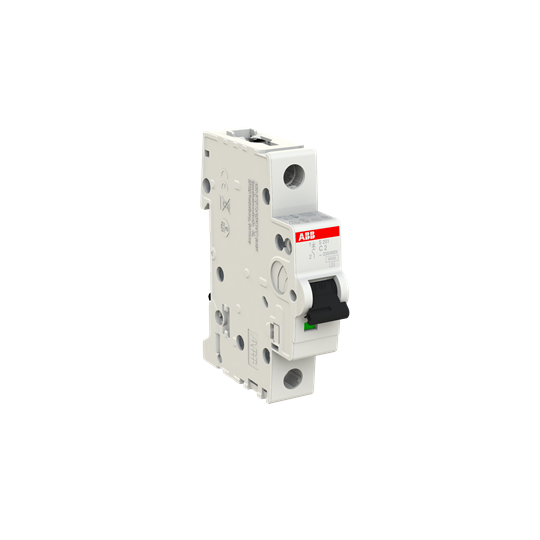

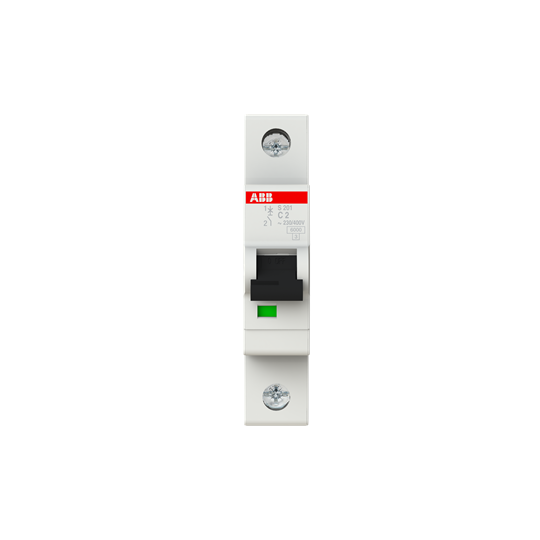

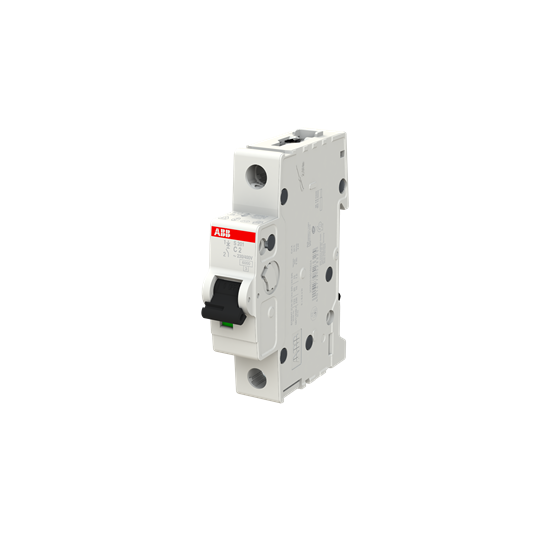

Miniature Circuit Breaker - S200 - 1P - 2 A - C - (AC) 6 kA
Miniature Circuit Breaker - S200 - 1P - 2 A - C - (AC) 6 kA by ABB is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at all of them. Trade prices range from £14.67 to £21.57 excl. VAT. Voltimum+ members earn 9 points per unit.
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Product identifiers
SKU: 2CDS251001R0024
EAN: 4016779523325
GTIN: 4016779523325
MPN: S201-C2
Loyalty points:
9
Price range: £ 14.67 - £ 21.57 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 1.8 |
| Voltage type | AC/DC |
| Rated current | 2 |
| Rated voltage | 230 |
| Built-in depth | 69 |
| Explosion-proof | no |
| Pollution degree | 3 |
