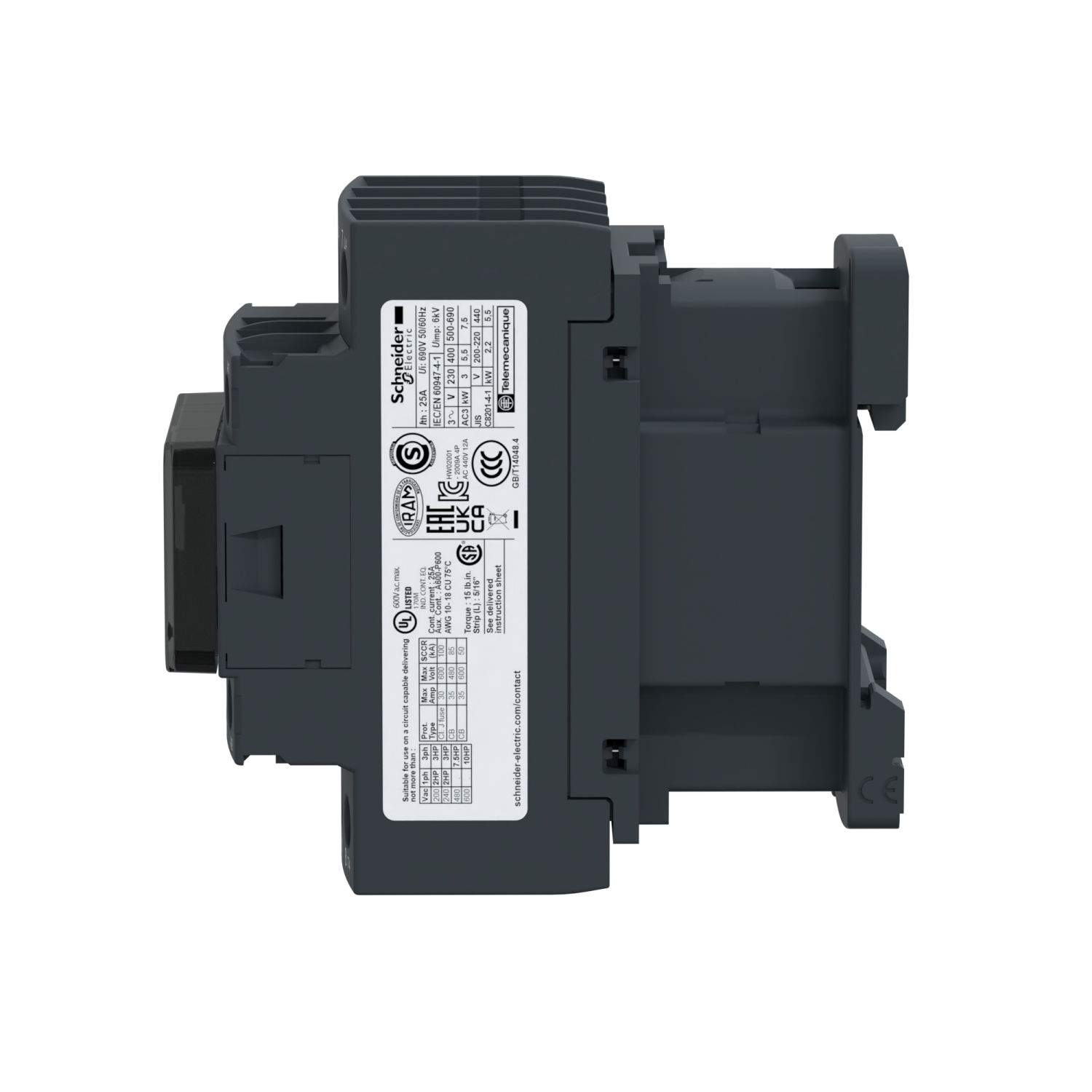

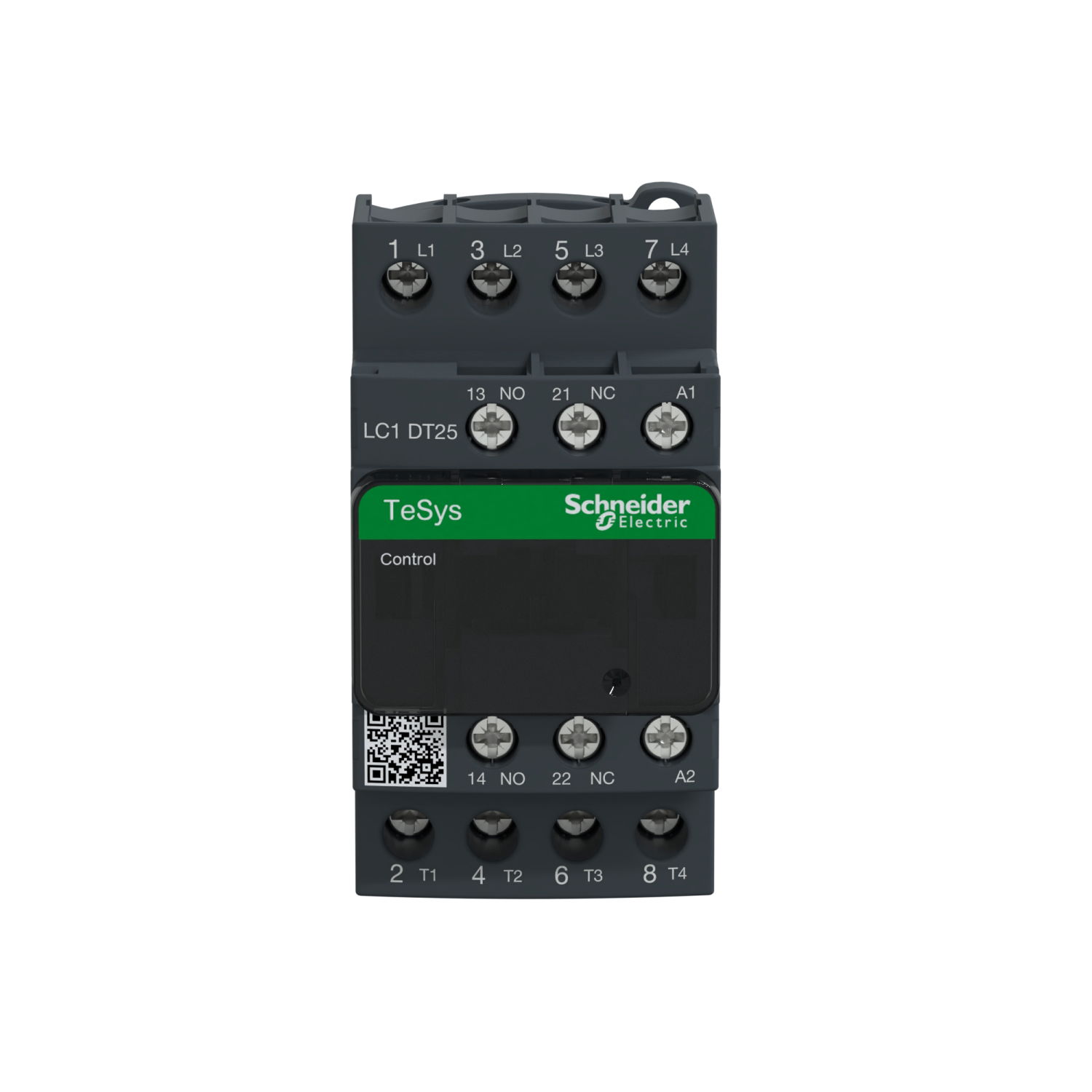

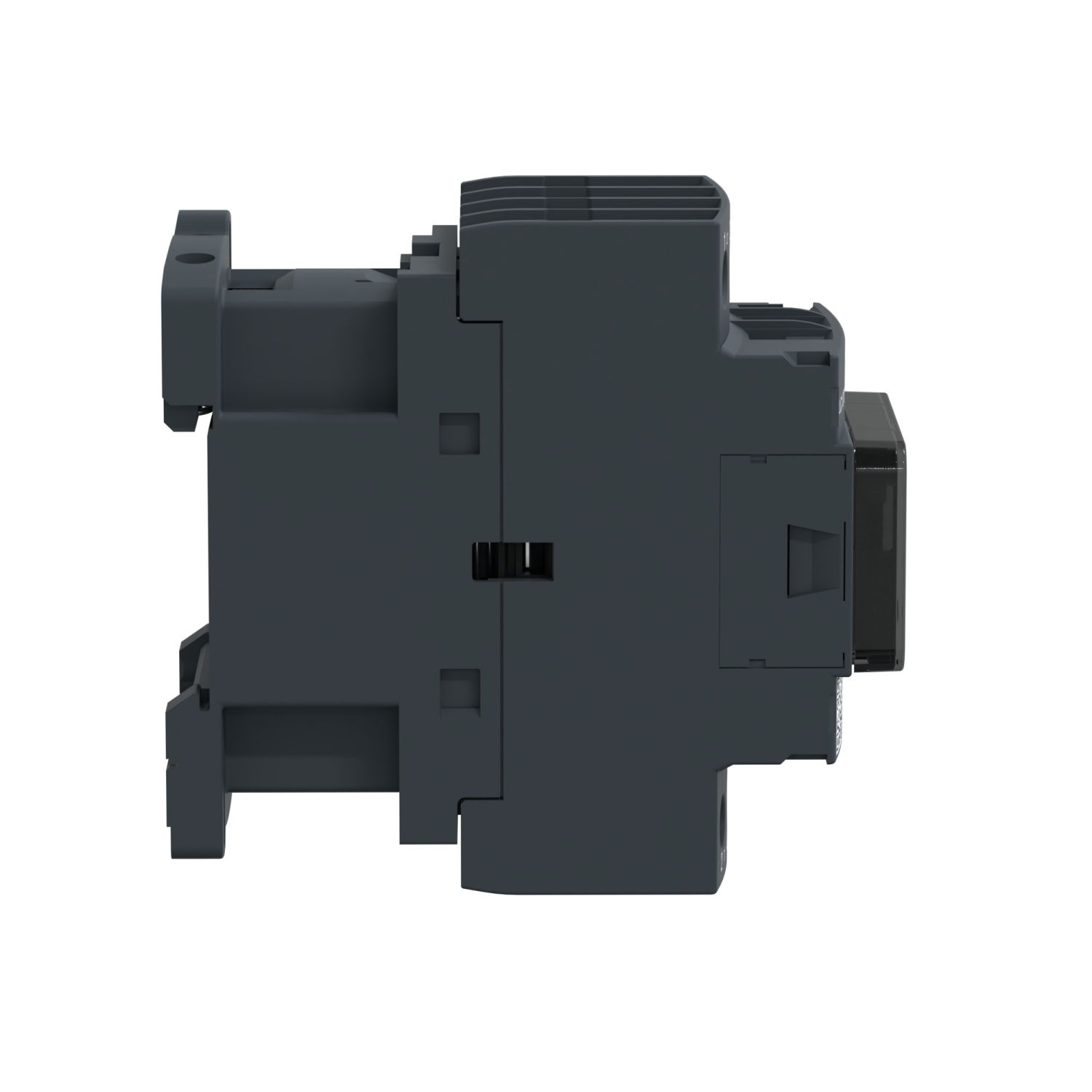

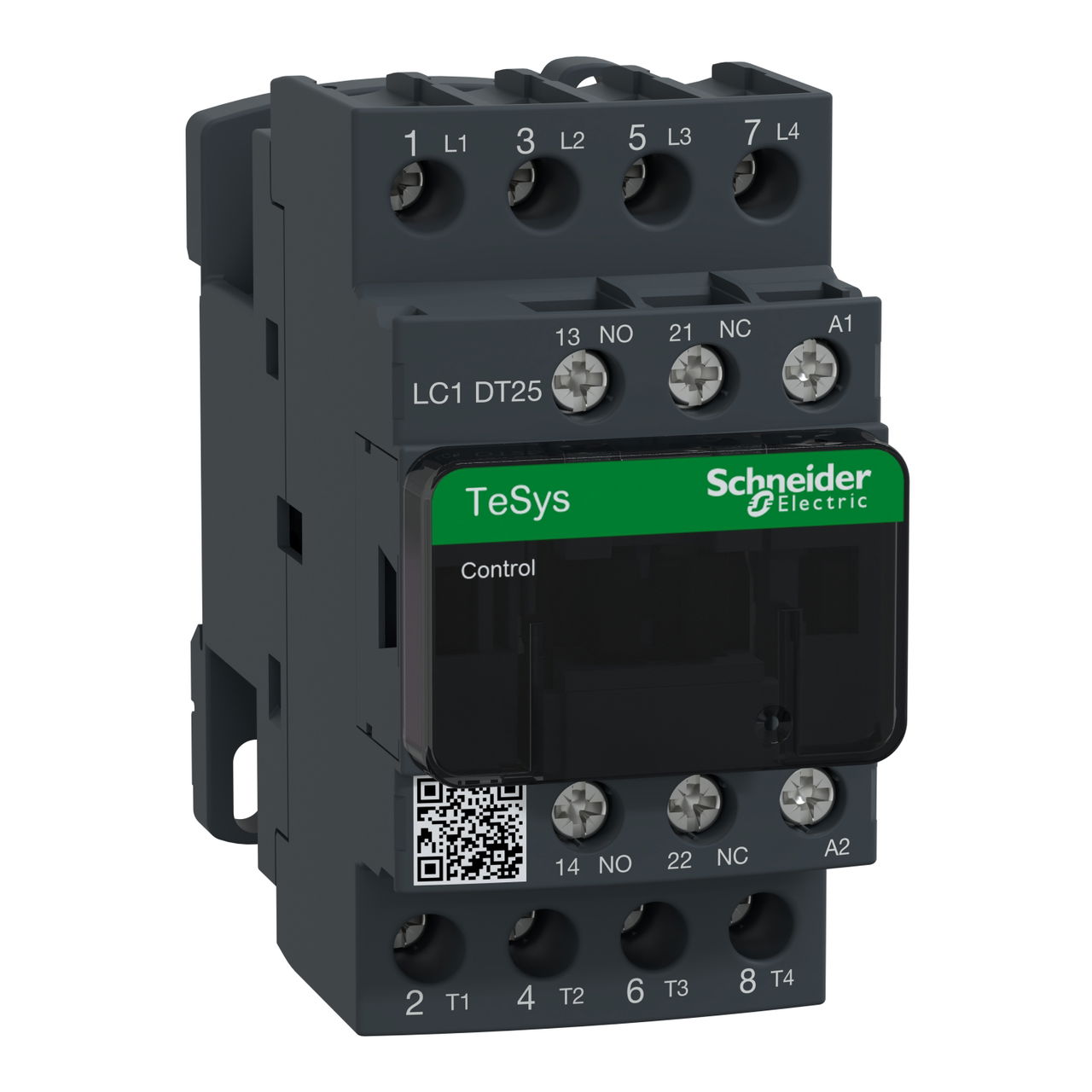

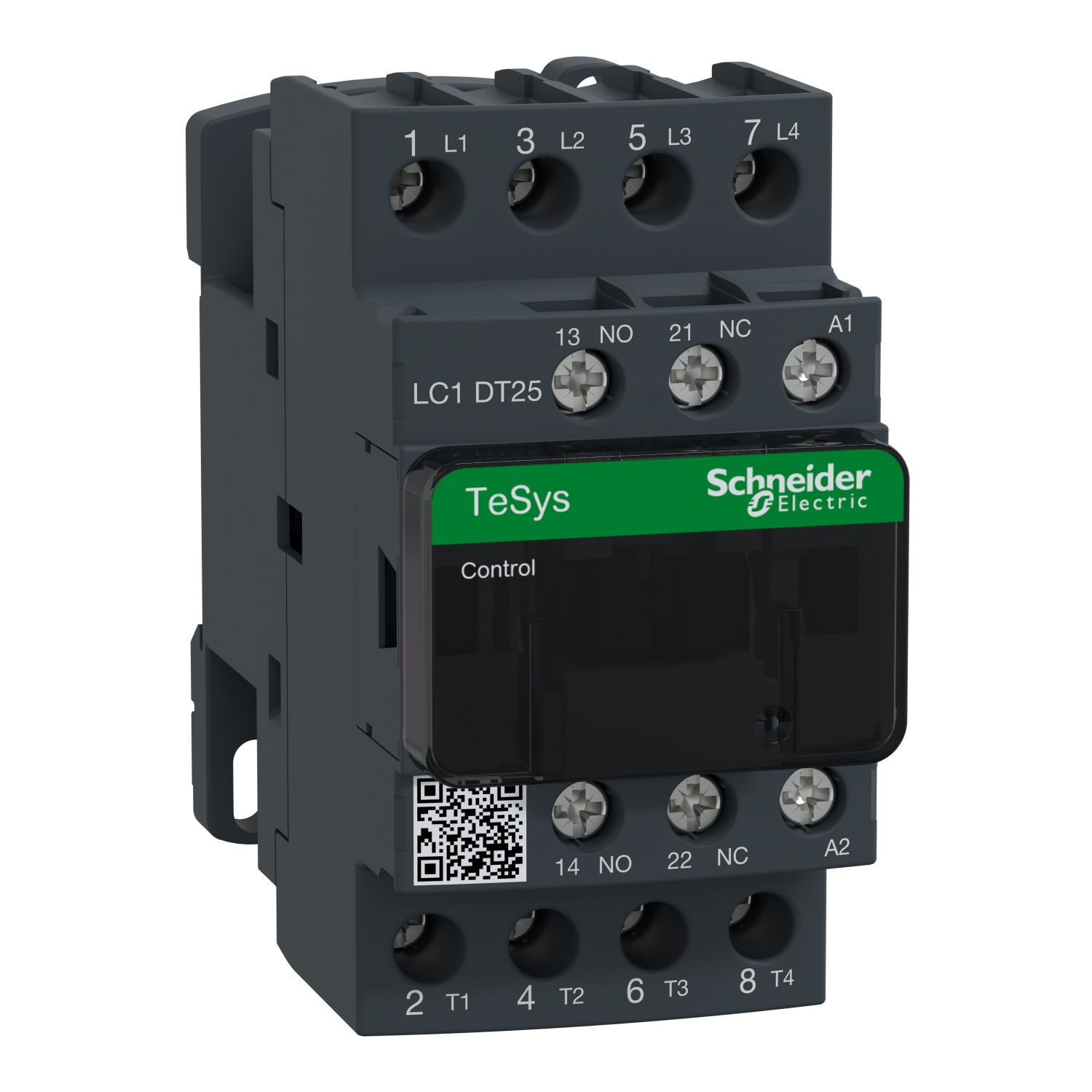

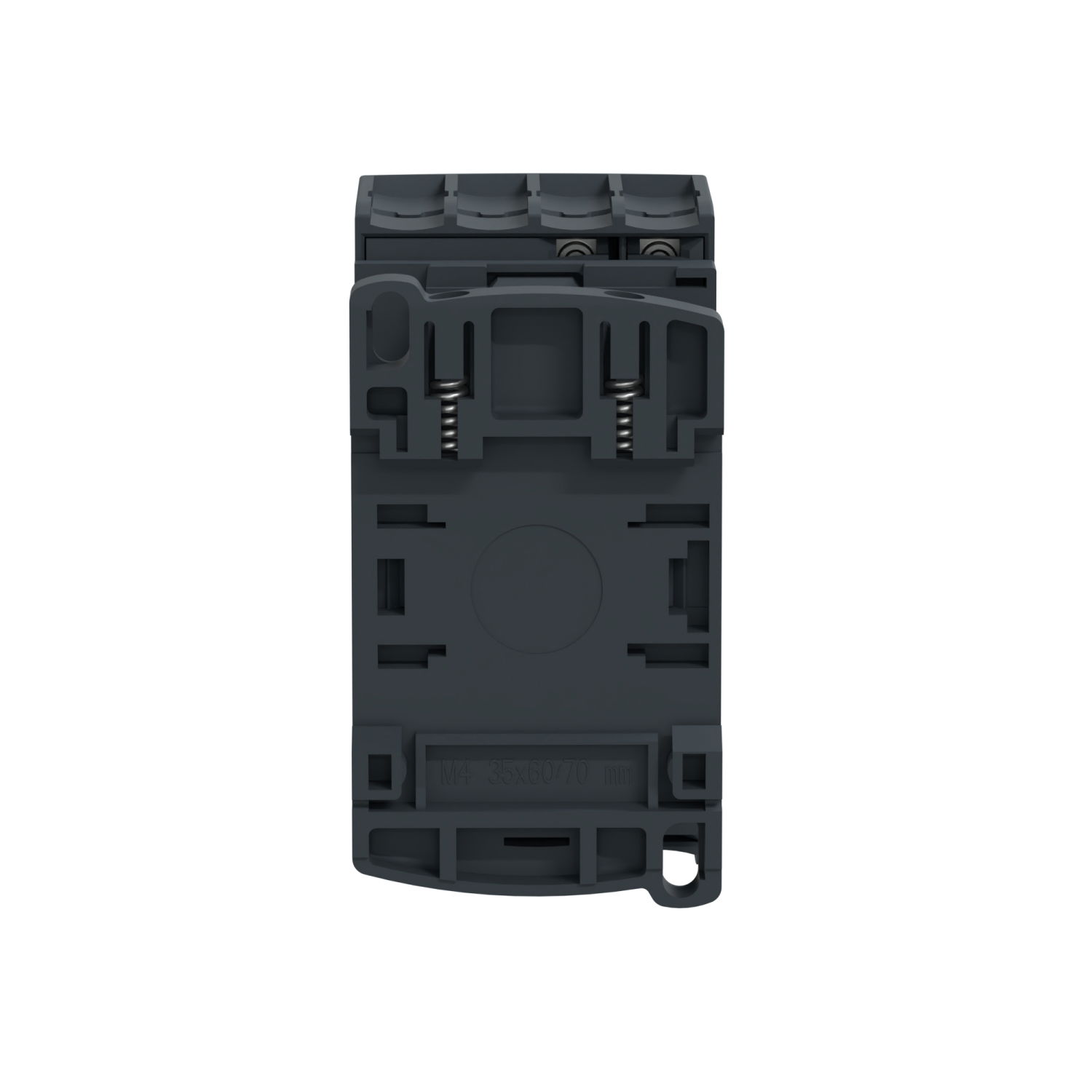

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 110 V AC 50/60 Hz coil

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 110 V AC 50/60 Hz coil by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Farnell, RS Components, Rexel Group and 1 more. It is currently in stock at all of them. Trade prices range from £51.77 to £60.91 excl. VAT. Voltimum+ members earn 8 points per unit.

TeSys D contactor, 4 poles (4NO), for non-inductive load applications up to 25A/440V AC-1. It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Product identifiers

SKU: LC1DT25F7
EAN: 3389110577662
GTIN: 3389110577662
MPN: LC1DT25F7

Voltimum+ Loyalty Programme Loyalty points: 8

Price range: £ 51.77 - £ 60.91 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 92 mm
Width 45 mm
Height 85 mm
Modular version no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA -
Voltage type for actuating AC
Rated operation power at AC-3, 400 V -
Rated control supply voltage AC 50 Hz
Rated operation current Ie at AC-1, 400 V 25 A
Rated operation current Ie at AC-4, 400 V -
Number of normally open contacts as main contact 4
Number of auxiliary contacts as normally open contact 1

Documents

Deeplink product page

Open

Environmental compliance declaration

LC1DT25F7 REACh Declaration

Open

Product data sheet

Open

Catalogue

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

Open

Environmental compliance declaration

LC1DT25F7 EU RoHS Declaration

Open

Environmental compliance declaration

LC1DT25F7 China RoHS Declaration

Open

Environmental disclosure

TeSys Deca Contactor 3P 09A AC

Open

CAD

Tesys - 3D-CAD

Open
